03S
SANDY RIVER
PublicPUB

1 miles NE of SANDY, OR
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
45° 24' 06"N 122° 13' 43"W
704' MSL
1704' MSL
19E
None Listed
MC MINNVILLE (MMV)
SEATTLE
SEATTLE (ZSE)
5/16/24-6/13/24
KTTD (12nm) VFR
9:53 PM PDT
Clear
10sm
69°F
47°F
29.93"Hg
280° 3kts
AO2 SLP136 T02060083
KTTD 010453Z AUTO 28003KT 10SM CLR 21/08 A2993 RMK AO2 SLP136 T02060083
Add Your Business

03S FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

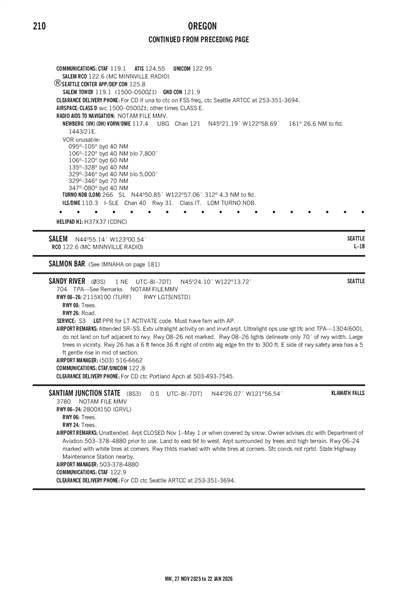

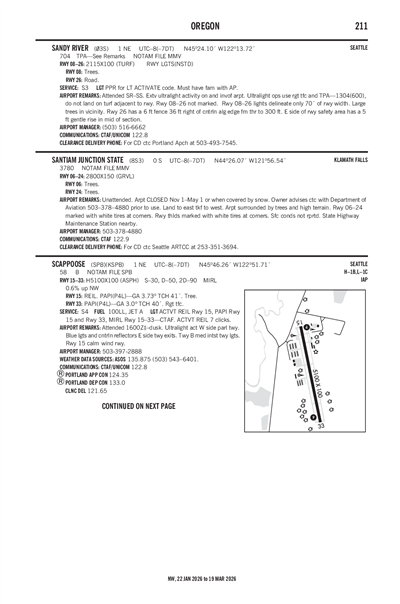

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KTTD (12nm)
Fri, 5/31 4:39 PM PDT
Fri, 5/31 5:00 PM PDT - Sat, 6/1 5:00 PM PDT
VFR
5:00 PM PDT - 11:00 AM PDT
Scattered 15,000'
6sm
VRB° 4kts
VFR
11:00 AM PDT - 5:00 PM PDT
Overcast 6,000'
6sm
230° 5kts
KTTD 312339Z 0100/0124 VRB04KT P6SM SCT150
   FM011800 23005KT P6SM OVC060
03S
No NOTAM Available
No
SR-SS
JACK HOFFMAN
42313 SE ORAL HULL RD
SANDY, OR 97055
Phone: (503) 516-6662
GEORGIA HOFFMAN
42313 SE ORAL HULL ROAD
SANDY, OR 97055
Phone: (503) 516-6662
MC MINNVILLE FSS (MMV)
Toll Free: 1-800-WX-BRIEF
MMV
--
PPR FOR LT ACTVT CODE. MUST HAVE FAM WITH AP.
N/A
Yes
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
20
0
0
0
0
8
Major
Minor
None
None
Crop Dusting
Avionics
Aircraft Sales

Runway 08/26

2115 ft. x 100 ft.
TURF
Good
NONE
NSTD

--
--
--
--
  Runway 08 Runway 26
True Heading 101°281°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 45° 24' 08"N 45° 24' 04"N
Longitude 122° 13' 58"W 122° 13' 29"W
Elevation 691' 704'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RY 08/26 NOT MARKED.
A110-2EXTSV ULTRALIGHT ACTVT ON AND INVOF ARPT.
A110-3(A23) ULTRALIGHT OPERATIONS USE RIGHT TFC AND 600' AGL TPA; DO NOT LAND ON TURF ADJACENT TO RWY.
A110-4FOR CD CTC PORTLAND APCH AT 503-493-7545.
A110-5LRG TREES VCNTY.
A110-6RWY 26 HAS A 6 FT FENCE 36 FT RIGHT OF CNTRLN ALG EDGE FM THR TO 300 FT.
A110-7E SIDE OF RWY SAFETY AREA HAS A 5 FT GENTLE RISE IN MID OF SECTION.
SANDY RIVER (IATA: 03S) is a public airport located in SANDY, OR.
