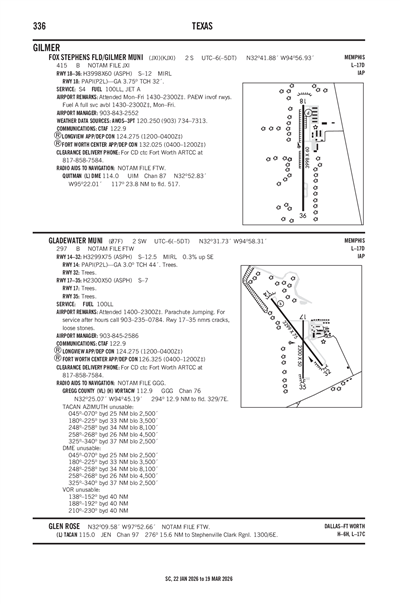

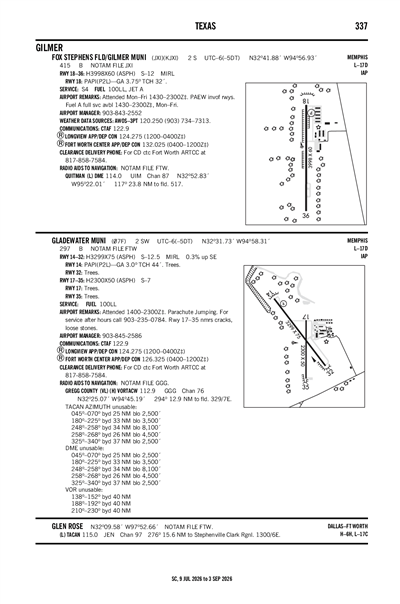

GLADEWATER MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

07F
GLADEWATER MUNI
PublicPUB

2 miles SW of GLADEWATER, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 31' 44"N 94° 58' 18"W
296' MSL
1296' MSL
03E
100LL
FORT WORTH (FTW)
MEMPHIS
FORT WORTH (ZFW)
5/16/24-6/13/24
KJXI (11nm) VFR
11:35 PM CDT
Clear
10sm
69°F
67°F
29.96"Hg
Calm
AO2 T02030192
KJXI 010435Z AUTO 00000KT 10SM CLR 20/19 A2996 RMK AO2 T02030192
Add Your Business

07F FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KGGG (15nm)
Fri, 5/31 6:20 PM CDT
Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT
VFR
7:00 PM CDT - 1:00 AM CDT
Scattered 20,000'
Few 2,000'
6sm
VRB° 4kts
MVFR
1:00 AM CDT - 7:00 AM CDT
Broken 2,500'
6sm
150° 3kts
MVFR
7:00 AM CDT - 11:00 AM CDT
Overcast 1,000'
6sm
140° 3kts
MVFR
11:00 AM CDT - 1:00 PM CDT
Broken 1,500'
6sm
250° 5kts
VFR
1:00 PM CDT - 7:00 PM CDT
Broken 5,000'
6sm
230° 4kts
KGGG 312320Z 0100/0124 VRB04KT P6SM FEW020 SCT200
   FM010600 15003KT P6SM BKN025
   FM011200 14003KT P6SM OVC010
   FM011600 25005KT P6SM BKN015
   FM011800 23004KT P6SM BKN050
07F
Domestic
5/28/241412Z !FTW 05/951 07F OBST TOWER LGT (ASR 1059062) 322715.70N0950750.30W (9.3NM WSW 07F) 924.9FT (290.0FT AGL) U/S 2405281412-2409251412
5/18/240151Z !FTW 05/532 07F OBST TOWER LGT (ASN 2019-ASW-15615-OE) 322640N0950429W (7.3NM SW 07F) 737FT (305FT AGL) U/S 2405180151-2407020151
5/2/242321Z !FTW 05/099 07F OBST TOWER LGT (ASR 1052563) 322158.50N0950643.80W (12.1NM SW 07F) 827.4FT (309.7FT AGL) U/S 2405022321-2408302321
5/1/241940Z !FTW 05/031 07F OBST TOWER LGT (ASR 1043237) 323109.40N0945210.00W (5.2NM E 07F) 735.2FT (365.2FT AGL) U/S 2405011940-2407300400
4/23/241525Z !FTW 04/671 07F OBST TOWER LGT (ASR 1048170) 322204.50N0950245.10W (10.3NM SSW 07F) 1059.1FT (435.0FT AGL) U/S 2404231525-2407230400
4/4/241406Z !FTW 04/079 07F OBST TOWER LGT (ASR 1214340) 323431.20N0944523.50W (11.3NM ENE 07F) 635.8FT (251.0FT AGL) U/S 2404041406-2408021406
3/14/242305Z !FTW 03/397 07F RWY 14 PAPI U/S 2403142305-2406142359
FDC
7/11/232016Z !FDC 3/4551 07F ODP GLADEWATER MUNI, GLADEWATER, TX.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
TAKE-OFF MINIMUMS RWY 35, STANDARD WITH MINIMUM CLIMB OF 280 FET PER NM TO 1300 OR 1100-3 FOR CLIMB IN VISUAL CONDITIONS.
ALL OTHER DATA REMAINS AS PUBLISHED. 2307112016-2507112016EST
No
0800-1700
FOR SVC AFT HRS CALL 903-295-8860.
CITY OF GLADEWATER
PO BOX 1725
GLADEWATER, TX 75647
Phone: 903-845-2196
CHARLIE SMITH
PO BOX 1725
GLADEWATER, TX 75647
Phone: 903-845-2586
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
FTW
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
46
4
0
3
0
0
None
None
None
None
Pilot Instruction
Parachute Jump Activity
Aircraft Rental

Runway 14/32

3299 ft. x 75 ft.
ASPH
Poor
NONE
MED

12,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 143°323°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 31' 60"N 32° 31' 34"N
Longitude 94° 58' 31"W 94° 58' 08"W
Elevation 285' 296'
Threshold Crossing Height 44 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

2300 ft. x 50 ft.
ASPH
Good
NONE


7,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 179°359°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 32° 31' 51"N 32° 31' 29"N
Longitude 94° 58' 17"W 94° 58' 16"W
Elevation 292' 295'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
GLADEWATER MUNI (IATA: 07F) is a public airport located in GLADEWATER, TX.
