1L7

ESCALANTE MUNI

PublicPUB

2 miles SE of ESCALANTE, UT

View on Map

Status

Operational

Coordinates

37° 44' 43"N 111° 34' 13"W

Elevation

5737' MSL

Pattern Alt

6737' MSL

Mag Variation

14E

Fuel

100LL

FSS

CEDAR CITY (CDC)

Sectional

LAS VEGAS

ARTCC

SALT LAKE CITY (ZLC)

Data Effective

5/16/24-6/13/24

KBCE (28nm) VFR

8:53 PM MDT RAW

Clear

Viz

10sm

Temp

59°F

Dew

24°F

Pres

30.15"Hg

Wind

280° 6kts

RMK

AO2 SLP097 T01501044 53001

KBCE 010253Z AUTO 28006KT 10SM CLR 15/M04 A3015 RMK AO2 SLP097 T01501044 53001

Add Your Business

1L7 FBOs

Promote Listing

Sphere One Aviation

UNICOM: 122.8

Phone: (435) 586-4504

0 Reviews (Read | Sign In To Write)

Avfuel

As of 5/15	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	8.00
Full Serve

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.8 CTAF 122.8

No communication frequencies available for this airport.

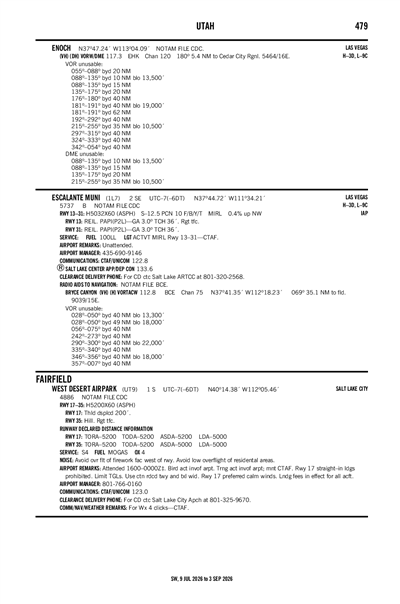

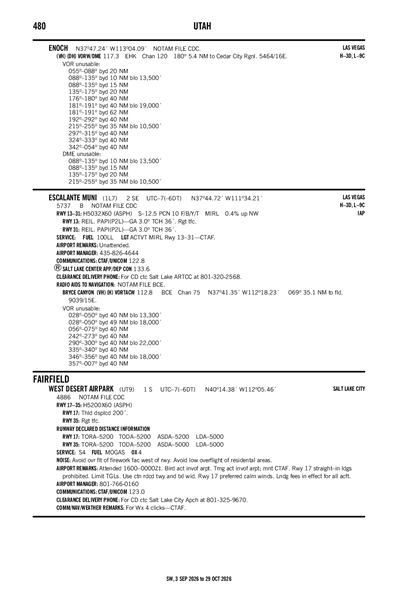

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

TAKEOFF MINIMUMS

Departure Procedures

HASSL ONE (OBSTACLE) (RNAV)

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

RNAV (GPS) RWY 31

Terminal Area Forecast

KBCE (28nm)

RAW

Reported

Fri, 5/31 5:20 PM MDT

Valid

Fri, 5/31 6:00 PM MDT - Sat, 6/1 6:00 PM MDT

VFR

6:00 PM MDT - 9:00 PM MDT

Sky Clear

Viz

6sm

Wind

260° 10kts

Gusts 20kts

VFR

9:00 PM MDT - 6:00 AM MDT

Sky Clear

Viz

6sm

Wind

320° 8kts

VFR

6:00 AM MDT - 10:00 AM MDT

Sky Clear

Viz

6sm

Wind

VRB° 5kts

VFR

10:00 AM MDT - 6:00 PM MDT

Sky Clear

Viz

6sm

Wind

210° 15kts

Gusts 25kts

KBCE 312320Z 0100/0124 26010G20KT P6SM SKC
   FM010300 32008KT P6SM SKC
   FM011200 VRB05KT P6SM SKC
   FM011600 21015G25KT P6SM SKC

1L7

FDC
1/29/241726Z	!FDC 4/9036 1L7 IAP ESCALANTE MUNI, ESCALANTE, UT. RNAV (GPS) RWY 31, ORIG... FEEDER SEGMENT FROM HASSL TO UVCEH NA. 2401291726-2601291726EST

ATC Tower

Attendance

UNATNDD

Owner

ESCALANTE CITY
56 N. 100 W., PO BOX 189
ESCALANTE, UT 84726
Phone: 435-826-4644

Manager

LENZA WILSON
PO BOX 189
ESCALANTE, UT 84726
Phone: 435-690-9146

FSS

CEDAR CITY FSS (CDC)
Toll Free: 1-800-WX-BRIEF

NOTAM

CDC

Light Schedule

Lights

ACTVT MIRL RY 13/31 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 13/31

Dimensions

5032 ft. x 60 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

10 /F/B/Y/T

Single Wheel

12,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 13	Runway 31
True Heading	139°	319°
Traffic Pattern	Right	Left
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	37° 45' 02"N	37° 44' 24"N
Longitude	111° 34' 33"W	111° 33' 52"W
Elevation	5,737'	5,718'
Threshold Crossing Height	36 ft. AGL	36 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-1

FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.

ESCALANTE MUNI (IATA: 1L7) is a public airport located in ESCALANTE, UT.
