iFlightPlanner



...

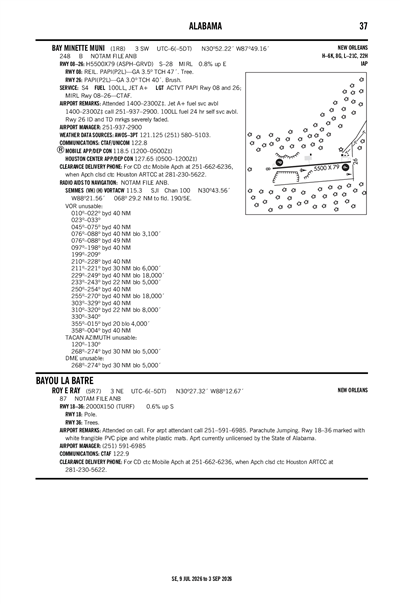

BAY MINETTE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1R8
BAY MINETTE MUNI
PublicPUB

3 miles SW of BAY MINETTE, AL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 52' 13"N 87° 49' 10"W
248' MSL
1248' MSL
00E
JET A (FSII), 100LL
ANNISTON (ANB)
NEW ORLEANS
HOUSTON (ZHU)
5/16/24-6/13/24
K1R8 VFR
11:35 PM CDT
Thunderstorm in vicinity
Broken 7,500'
Few 4,500'
Few 3,400'
10sm
72°F
68°F
30.03"Hg
120° 8kts
Gusts 13kts
AO2 LTG DSNT NE AND NW
K1R8 010435Z AUTO 12008G13KT 10SM VCTS FEW034 FEW045 BKN075 22/20 A3003 RMK AO2 LTG DSNT NE AND NW
Add Your Business

1R8 FBOs

Promote Listing
Baldwin Aviation
UNICOM: 122.8
Phone: (251) 937-2900
Other: (601) 544-0951
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/24
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.49 5.99
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
251-580-5103
 121.125

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KBFM (20nm)
Fri, 5/31 6:22 PM CDT
Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT
VFR
7:00 PM CDT - 4:00 AM CDT
Scattered 3,000'
Scattered 2,600'
6sm
160° 9kts
VFR
4:00 AM CDT - 10:00 AM CDT
Mist and Thunderstorm in vicinity
Broken 9,000'
Scattered 3,000'
6sm
140° 9kts
MVFR
Temporary 5:00 AM CDT - 9:00 AM CDT
Thunderstorm and Rain and Mist
Overcast 2,500'
Scattered 1,500'
4sm
Calm
MVFR
10:00 AM CDT - 3:00 PM CDT
Light Thunderstorm and Rain
Broken 3,000'
Scattered 1,500'
6sm
150° 10kts
MVFR
3:00 PM CDT - 7:00 PM CDT
Mist and Thunderstorm in vicinity
Overcast 1,700'
6sm
150° 11kts
KBFM 312322Z 0100/0124 16009KT P6SM SCT026 SCT030
   FM010900 14009KT 6SM BR VCTS SCT030CB BKN090
   TEMPO 0110/0114 4SM TSRA BR SCT015 OVC025CB
   FM011500 15010KT 6SM -TSRA SCT015 BKN030CB
   FM012000 15011KT 6SM BR VCTS OVC017CB
1R8
Domestic
5/29/241706Z !ANB 05/161 1R8 OBST TOWER LGT (ASR 1306116) 305901.12N0874016.02W (10.3NM NE 1R8) 532FT (342FT AGL) U/S 2405291706-2407131706
5/26/241009Z !ANB 05/004 1R8 OBST TOWER LGT (ASR 1039250) 305837.50N0874221.90W (8.7NM NE 1R8) 696.9FT (481.0FT AGL) U/S 2405261009-2408240400
5/13/241646Z !ANB 05/596 1R8 OBST TOWER LGT (ASR 1308256) 305720.90N0874608.02W (5.8NM NNE 1R8) 599FT (315FT AGL) U/S 2405131646-2406271646
4/22/241833Z !ANB 04/695 1R8 OBST TOWER LGT (ASR 1228319) 305620.80N0874615.70W (4.9NM NNE 1R8) 768.0FT (499.0FT AGL) U/S 2404221833-2406212359
4/19/241507Z !ANB 04/616 1R8 OBST TOWER LGT (ASR 1035771) 304120.40N0874950.60W (10.9NM S 1R8) 2048.9FT (1878.9FT AGL) U/S 2404191507-2407192359
No
0800-1700
CITY OF BAY MINETTE
PO BOX 1208
BAY MINETTE, AL 36507
Phone: 251-580-1619
ASHLEY BOOTHE
11981 AIRPORT RD
BAY MINETTE, AL 36507
Phone: 251-937-2900
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
ANB
--
ACTVT PAPI RWY 08 & 26; MIRL RWY 08/26 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
12
0
0
0
0
0
Major
Major
None
None
None

Runway 08/26

5500 ft. x 79 ft.
ASPH
Good
GRVD
MED

28,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 86°266°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR POOR
Latitude 30° 52' 11"N 30° 52' 15"N
Longitude 87° 49' 41"W 87° 48' 38"W
Elevation 206' 248'
Threshold Crossing Height 47 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-1FOR CD CTC MOBILE APCH AT 251-662-6236, WHEN APCH CLSD CTC HOUSTON ARTCC AT 281-230-5622.
BAY MINETTE MUNI (IATA: 1R8) is a public airport located in BAY MINETTE, AL.
