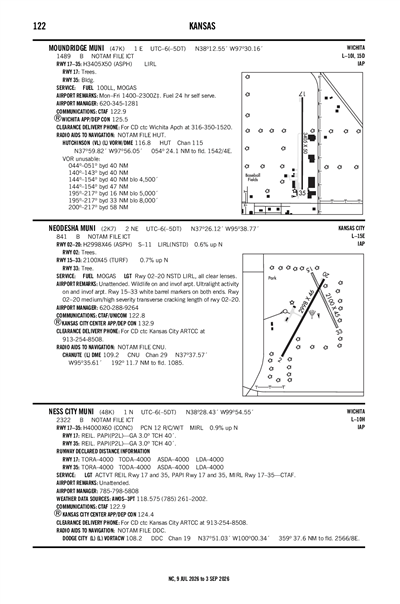

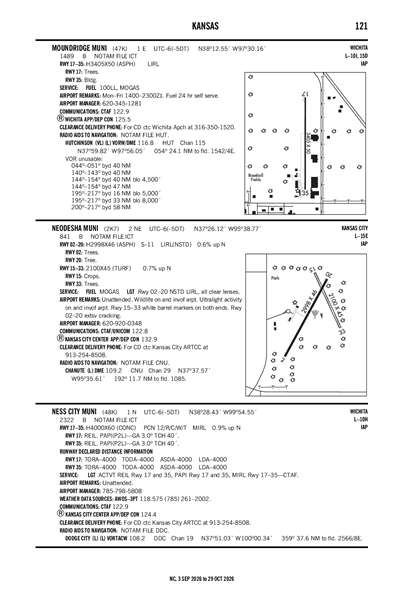

NEODESHA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

2K7
NEODESHA MUNI
PublicPUB

2 miles NE of NEODESHA, KS
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 26' 07"N 95° 38' 46"W
841' MSL
1841' MSL
02E
MOGAS
WICHITA (ICT)
KANSAS CITY
KANSAS CITY (ZKC)
5/16/24-6/13/24
KPPF (9nm) IFR
12:04 AM CDT
Mist
Broken 800'
4sm
62°F
60°F
29.97"Hg
Calm
AO2 T01670156 PNO $
KPPF 010504Z AUTO 00000KT 4SM BR BKN008 17/16 A2997 RMK AO2 T01670156 PNO $
Add Your Business

2K7 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCNU (16nm)
Fri, 5/31 10:14 PM CDT
Fri, 5/31 10:00 PM CDT - Sat, 6/1 7:00 PM CDT
IFR
10:00 PM CDT - 1:00 AM CDT
Overcast 900'
6sm
030° 5kts
IFR
1:00 AM CDT - 7:00 PM CDT
Broken 700'
6sm
Calm
KCNU 010314Z 0103/0124 03005KT P6SM OVC009
   FM010600 00000KT P6SM BKN007
2K7
Domestic
4/25/241252Z !ICT 04/336 2K7 OBST TOWER LGT (ASR 1250574) 372818.00N0952838.00W (8.4NM ENE 2K7) 1361.5FT (315.0FT AGL) U/S 2404251252-2406252359
4/12/241154Z !ICT 04/161 2K7 RWY 02/20 REDL U/S 2404121154-2410142111EST
FDC
12/14/221502Z !FDC 2/5467 2K7 IAP NEODESHA MUNI, NEODESHA, KS.
RNAV (GPS)-A, ORIG...
PROCEDURE NA AT NIGHT.
2212141502-2412131502EST
No
UNATNDD
CITY OF NEODESHA
PO BOX 336
NEODESHA, KS 66757
Phone: 620-325-2828
JEREMY JOHNSON
PO BOX 336
NEODESHA, KS 66757
Phone: 620-288-9264
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
ICT
Sunset to Sunrise
--
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
2
0
0
0
0
0
None
None
None
None
None

Runway 02/20

2998 ft. x 46 ft.
ASPH
Poor
NONE
LOW

11,000lbs
--
--
--
  Runway 02 Runway 20
True Heading 29°209°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 37° 25' 52"N 37° 26' 18"N
Longitude 95° 38' 59"W 95° 38' 41"W
Elevation 822' 841'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No

Runway 15/33

2100 ft. x 45 ft.
TURF
Good
NONE


--
--
--
--
  Runway 15 Runway 33
True Heading 156°336°
Traffic Pattern
Markings
Markings Condition FAIR FAIR
Latitude 37° 26' 20"N 37° 26' 01"N
Longitude 95° 38' 45"W 95° 38' 35"W
Elevation 840' 825'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ULTRALIGHT ACTIVITY ON AND INVOF ARPT.
A110-2WILDLIFE ON & INVOF ARPT.
A110-3FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
NEODESHA MUNI (IATA: 2K7) is a public airport located in NEODESHA, KS.
