2V5

WRAY MUNI

PublicPUB

2 miles NW of WRAY, CO

View on Map

Status

Operational

Coordinates

40° 06' 01"N 102° 14' 28"W

Elevation

3678' MSL

Pattern Alt

4678' MSL

Mag Variation

08E

Fuel

100LL

FSS

DENVER (DEN)

Sectional

CHEYENNE

ARTCC

DENVER (ZDV)

Data Effective

5/16/24-6/13/24

K2V5 VFR

9:15 PM MDT RAW

Scattered 6,000'

Viz

10sm

Temp

32°F

Dew

32°F

Pres

30.02"Hg

Wind

Calm

RMK

AO2

K2V5 010315Z AUTO 10SM SCT060 A3002 RMK AO2

Add Your Business

2V5 FBOs

Promote Listing

Tri County Ag

UNICOM: 122.8

Phone: (970) 332-4607

0 Reviews (Read | Sign In To Write)

As of 5/24	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.50		5.90
Full Serve

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.8 CTAF 122.8

AWOS-3

970-332-5930

118.25

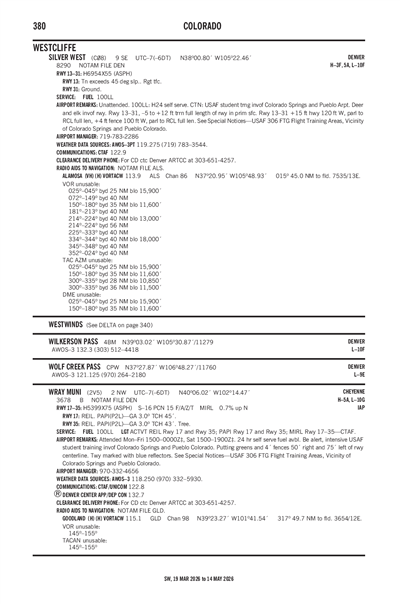

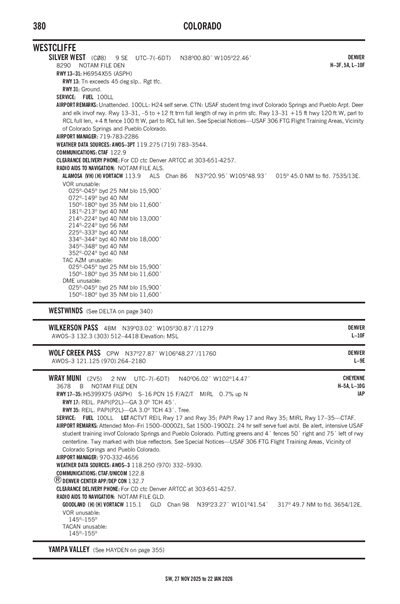

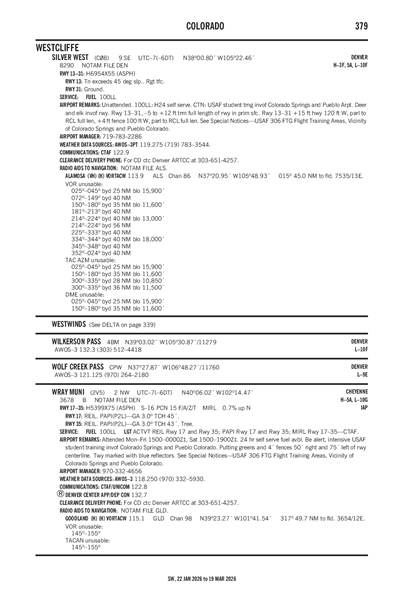

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KGLD (51nm)

RAW

Reported

Fri, 5/31 5:20 PM MDT

Valid

Fri, 5/31 6:00 PM MDT - Sat, 6/1 6:00 PM MDT

VFR

6:00 PM MDT - 4:00 AM MDT

Scattered 25,000'

Viz

6sm

Wind

VRB° 6kts

MVFR

4:00 AM MDT - 10:00 AM MDT

Mist

Scattered 500'

Viz

5sm

Wind

160° 6kts

LIFR

Temporary 5:00 AM MDT - 9:00 AM MDT

Fog

Broken 300'

Viz

0.5sm

Wind

Calm

VFR

10:00 AM MDT - 6:00 PM MDT

Scattered 25,000'

Viz

6sm

Wind

170° 15kts

Gusts 25kts

KGLD 312320Z 0100/0124 VRB06KT P6SM SCT250
   FM011000 16006KT 5SM BR SCT005
   TEMPO 0111/0115 1/2SM FG BKN003
   FM011600 17015G25KT P6SM SCT250

2V5

Domestic
5/29/241716Z	!DEN 05/697 2V5 SVC AUTOMATED WX BCST SYSTEM WIND/T U/S 2405291716-2407302359
5/21/241957Z	!DEN 05/549 2V5 OBST TOWER LGT (ASR 1023857) 400158.00N1021347.00W (4.1NM S 2V5) 4034.8FT (219.2FT AGL) U/S 2405211957-2406212359
5/21/240542Z	!DEN 05/528 2V5 OBST TOWER LGT (ASR 1026660) 400042.70N1021932.60W (6.6NM SW 2V5) 4432.1FT (482.0FT AGL) U/S 2405210542-2409180542

ATC Tower

Attendance

MON-FRI 0800-1700
SAT 0800-1200

Owner

CITY OF WRAY
PO BOX 35
WRAY, CO 80758
Phone: 970-332-4431

Manager

GREG ALLEN
36395 S HWY 385
WRAY, CO 80758
Phone: 970-332-4656

FSS

DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF

NOTAM

DEN

Light Schedule

Lights

ACTVT REIL RWY 17 & 35; PAPI RWY 17 & 35; MIRL RWY 17/35 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Crop Dusting
Air Ambulance
Pilot Instruction

Runway 17/35

Dimensions

5399 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

15 /F/A/Z/T

Single Wheel

16,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 17	Runway 35
True Heading	180°	360°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	40° 06' 28"N	40° 05' 35"N
Longitude	102° 14' 28"W	102° 14' 28"W
Elevation	3,678'	3,638'
Threshold Crossing Height	45 ft. AGL	43 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-1	TWY MKD WITH BLUE REFLECTORS
A110-2	24 HOUR SELF SERVE FUEL AVAILABLE.
A110-3	BE ALERT; INTENSIVE USAF STUDENT TRAINING IN VICINITY OF COLORADO SPRINGS & PUEBLO COLORADO.
A110-4	FOR CD CTC DENVER ARTCC AT 303-651-4257.

WRAY MUNI (IATA: 2V5) is a public airport located in WRAY, CO.
