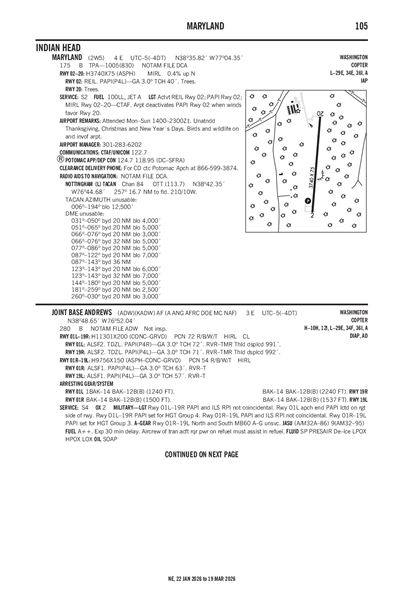

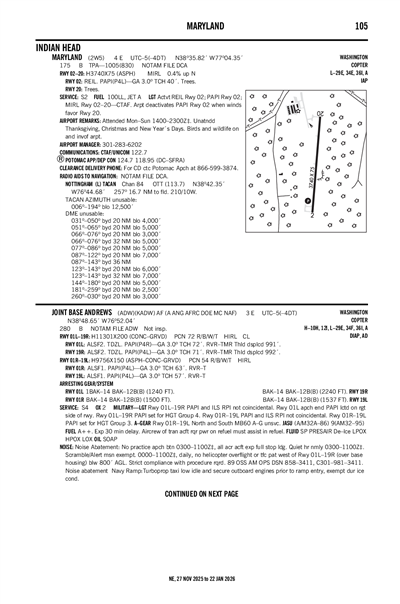

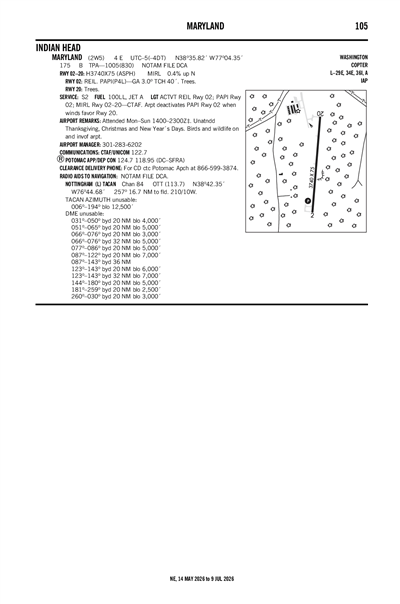

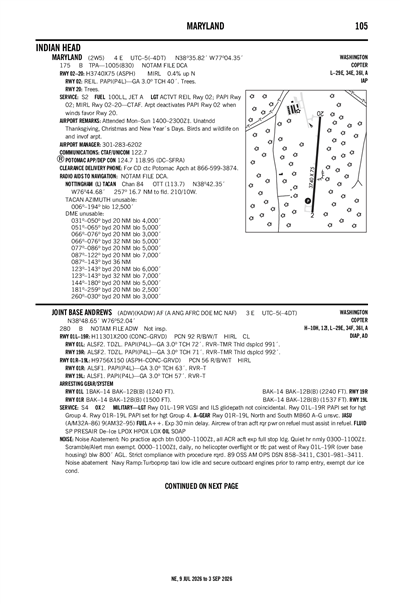

MARYLAND - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

2W5
MARYLAND
PublicPUB

4 miles E of INDIAN HEAD, MD
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 35' 49"N 77° 04' 21"W
175' MSL
1005' MSL
09W
JET A, 100LL
LEESBURG (DCA)
WASHINGTON
WASHINGTON (ZDC)
5/16/24-6/13/24
KDAA (9nm) VFR
7:55 PM EDT
Scattered 7,500'
Few 6,000'
10sm
77°F
62°F
29.97"Hg
150° 3kts
AO2 SLP151 T02490166 10278 20249 55003 $
KDAA 122355Z AUTO 15003KT 10SM FEW060 SCT075 25/17 A2997 RMK AO2 SLP151 T02490166 10278 20249 55003 $
Add Your Business

2W5 FBOs

Promote Listing
PSM Aviation
UNICOM: 122.7
Phone: (301) 283-6202
Other: (301) 375-7337
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/17
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.75 6.85 6.85
Full Serve 6.80 6.85 6.85
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KDAA (9nm)
Wed, 6/12 4:00 PM EDT
Wed, 6/12 4:00 PM EDT - Thu, 6/13 10:00 PM EDT
VFR
4:00 PM EDT - 7:00 PM EDT
Broken 25,000'
Broken 6,000'
6sm
29.97"Hg
VRB° 6kts
VFR
Becoming 7:00 PM EDT - 9:00 AM EDT
Scattered 6,000'
6sm
30.00"Hg
VRB° 5kts
VFR
Becoming 9:00 AM EDT - 4:00 PM EDT
Broken 20,000'
Scattered 5,000'
6sm
30.00"Hg
190° 12kts
VFR
Becoming 4:00 PM EDT - 10:00 PM EDT
Showers in vicinity
Broken 20,000'
Broken 10,000'
Scattered 5,000'
6sm
29.97"Hg
180° 7kts
TAF KDAA 122000Z 1220/1402 VRB06KT 9999 BKN060 BKN250 QNH2998INS
   BECMG 1223/1224 VRB05KT 9999 SCT060 QNH3000INS
   BECMG 1313/1314 19012KT 9999 SCT050 BKN200 QNH3001INS
   BECMG 1320/1321 18007KT 9999 VCSH SCT050 BKN100 BKN200 QNH2996INS TX28/1221Z TN18/1310Z LAST NO AMDS AFT 1301 NEXT 1312
2W5
Domestic
6/10/241124Z !DCA 06/201 2W5 OBST TOWER LGT (ASR 1036153) 383638.90N0765512.60W (7.2NM E 2W5) 556.1FT (344.2FT AGL) U/S 2406101124-2407311700
5/26/240419Z !DCA 05/668 2W5 OBST POWER LINE LGT (ASN 2008-AEA-846-OE) 384404N0771211W (10.2NM NW 2W5) 230FT (115FT AGL) U/S 2405260419-2407100418
4/18/241313Z !DCA 04/377 2W5 OBST TOWER LGT (ASR 1053372) 383236.00N0765936.00W (4.9NM SE 2W5) 383.2FT (203.4FT AGL) U/S 2404181313-2406302359
3/14/241901Z !DCA 03/228 2W5 RWY 02 PAPI U/S 2403141901-2409162111EST
3/14/241901Z !DCA 03/227 2W5 RWY 02 RWY END ID LGT U/S 2403141901-2409162111EST
1/15/200002Z !DCA 01/186 2W5 AIRSPACE SEE FDC 1/1155, 9/1811, 0/0053, 9/1812,
0/3929 ZDC SPECIAL SECURITY INSTRUCTIONS 2001150002-PERM
No
MON-SUN 0900-1800
UNATNDD THANKSGIVING, CHRISTMAS AND NEW YEARS DAYS.
PSM AVIATION LLC
3900 LIVINGSTON RD,
INDIAN HEAD, MD 20640
Phone: 301-283-6202
SHEEL PATEL
3900 LIVINGSTON RD
INDIAN HEAD, MD 20640
Phone: 301-283-6202
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
DCA
--
ACTVT REIL RWY 02; PAPI RWY 02; MIRL RWY 02/20 - CTAF. ARPT DEACTIVATES PAPI RWY 02 WHEN WINDS FAVOR RWY 20.
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
107
2
0
4
0
0
Minor
Minor
None
None
Avionics
Pilot Instruction

Runway 02/20

3740 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 02 Runway 20
True Heading 5°185°
Traffic Pattern Left Left
Markings NPI BSC
Markings Condition GOOD GOOD
Latitude 38° 35' 31"N 38° 36' 08"N
Longitude 77° 04' 23"W 77° 04' 19"W
Elevation 156' 175'
Threshold Crossing Height 40 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-2BIRDS & WILDLIFE ON & INVOF ARPT.
A110-4FOR CD CTC POTOMAC APCH AT 866-599-3874.
MARYLAND (IATA: 2W5) is a public airport located in INDIAN HEAD, MD.
