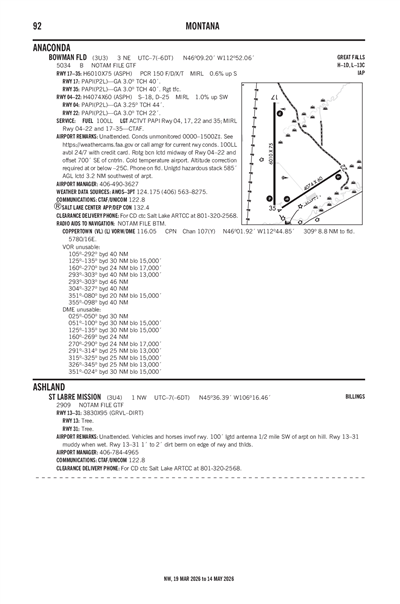

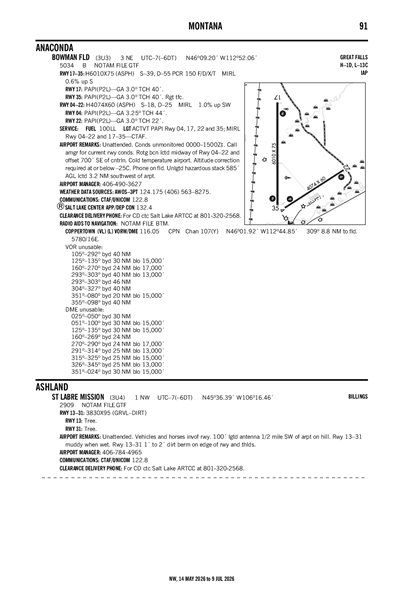

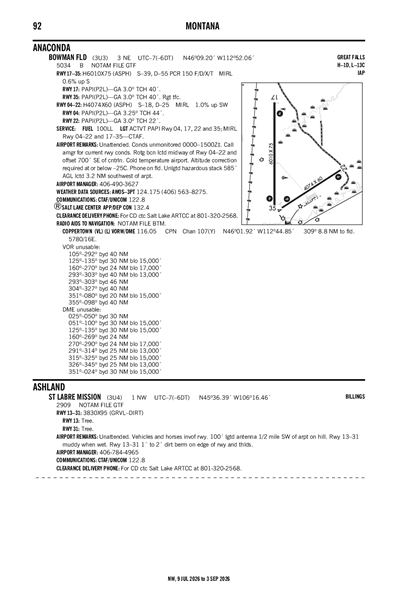

BOWMAN FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3U3
BOWMAN FLD
PublicPUB

3 miles NE of ANACONDA, MT
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
46° 09' 12"N 112° 52' 04"W
5034' MSL
6034' MSL
14E
None Listed
GREAT FALLS (GTF)
GREAT FALLS
SALT LAKE CITY (ZLC)
5/16/24-6/13/24
K3U3 VFR
9:45 PM MDT
No Clouds
10sm
52°F
27°F
30.08"Hg
Calm
K3U3 010345Z AUTO 00000KT 10SM 11/M03 A3008
Add Your Business

3U3 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-AV

AWOS-AV
406-563-8275
 122.8

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KBTM (19nm)
Fri, 5/31 5:41 PM MDT
Fri, 5/31 6:00 PM MDT - Sat, 6/1 6:00 PM MDT
VFR
6:00 PM MDT - 9:00 PM MDT
Sky Clear
6sm
320° 9kts
Gusts 18kts
VFR
9:00 PM MDT - 6:00 PM MDT
Sky Clear
6sm
310° 5kts
KBTM 312341Z 0100/0124 32009G18KT P6SM SKC
   FM010300 31005KT P6SM SKC
3U3
No NOTAM Available
No
UNATNDD
ANACONDA DEERLODGE COUNTY
800 S. MAIN ST
ANACONDA, MT 59711
Phone: 406-563-4000
MONTE BELGARDE
800 S MAIN ST
ANACONDA, MT 59711
Phone: 406-490-3627
GREAT FALLS FSS (GTF)
Toll Free: 1-800-WX-BRIEF
GTF
--
ACTVT PAPI RWY 04, 17, 22, & 35; MIRL RWY 04/22 & 17/35 - CTAF.
N/A
ROTG BCN LCTD MIDWAY OF RY 04/22 & OFFSET 700 FT SE OF CNTRLN.
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
10
2
0
1
0
0
None
None
None
None
Crop Dusting
Air Ambulance

Runway 04/22

4074 ft. x 60 ft.
ASPH
Excellent
NONE
MED

18,000lbs
25,000lbs
--
--
  Runway 04 Runway 22
True Heading 57°237°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 46° 08' 49"N 46° 09' 11"N
Longitude 112° 52' 10"W 112° 51' 21"W
Elevation 5,030' 4,989'
Threshold Crossing Height 44 ft. AGL 22 ft. AGL
Visual Glide Path Angle 3.25° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

6010 ft. x 75 ft.
ASPH
Excellent
NONE
MED

--
--
--
--
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 46° 09' 50"N 46° 08' 51"N
Longitude 112° 52' 16"W 112° 52' 16"W
Elevation 4,998' 5,033'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3UNLIGHTED HAZARDOUS STACK; 585 FT AGL LCTD 3.2 NM SW OF ARPT.
A110-4COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -25C.
A110-5AWOS AVBL - CTAF. CLICK MIC FOUR TIMES.
A110-6FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
BOWMAN FLD (IATA: 3U3) is a public airport located in ANACONDA, MT.
