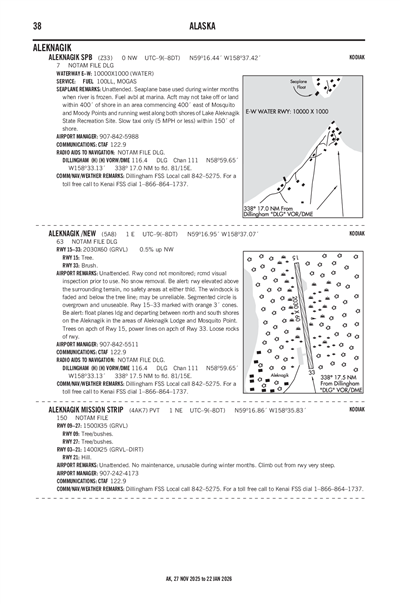

ALEKNAGIK MISSION STRIP - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

4AK7
ALEKNAGIK MISSION STRIP
PrivatePVT

1 miles NE of ALEKNAGIK, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
59° 16' 51"N 158° 35' 50"W
150' MSL
1150' MSL
20E
None Listed
DILLINGHAM (DLG)
KODIAK
ANCHORAGE (ZAN)
5/16/24-6/13/24
PADL (15nm) VFR
6:56 PM AKDT
Broken 6,500'
10sm
59°F
34°F
29.61"Hg
090° 8kts
Gusts 13kts
AO2 SLP030 T01500011 56017 $
PADL 010256Z 09008G13KT 10SM BKN065 15/01 A2961 RMK AO2 SLP030 T01500011 56017 $
Add Your Business

4AK7 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

PADL (15nm)
Fri, 5/31 3:29 PM AKDT
Fri, 5/31 4:00 PM AKDT - Sat, 6/1 4:00 PM AKDT
VFR
4:00 PM AKDT - 4:00 AM AKDT
Broken 5,000'
Few 3,000'
6sm
VRB° 4kts
VFR
4:00 AM AKDT - 4:00 PM AKDT
Light Rain
Broken 4,000'
6sm
030° 4kts
PADL 312329Z 0100/0124 VRB04KT P6SM FEW030 BKN050
   FM011200 03004KT P6SM -RA BKN040
4AK7
No NOTAM Available
No
UNATNDD
WOODRIVER HEIGHTS
3665 AIRCRAFT DR.
ANCHORAGE, AK 99502
Phone: 907-242-4173
RON SMITH
3665 AIRCRAFT DR.
ANCHORAGE, AK 99502
Phone: 907-242-4173
DILLINGHAM FSS (DLG)
Toll Free: LC842-5275
N/A
--
--
N/A
No
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 03/21

1400 ft. x 25 ft.
GRVL
DIRT
NONE


--
--
--
--
  Runway 03 Runway 21
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 09/27

1500 ft. x 35 ft.

GRAVEL
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1CLIMB OUT FM RWY VERY STEEP.
A110-2RWY 27 ROCKY UNEVEN; FIRST 500' BADLY CUT.
A110-4NO MAINTENANCE, UNUSABLE DURING WINTER MONTHS.
A110-5RWY 3/21 BUSHES 3' - 5' HIGH ON EDGE OF RWY.
A110-6WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
ALEKNAGIK MISSION STRIP (IATA: 4AK7) is a private airport located in ALEKNAGIK, AK.
