4U9
DELL FLIGHT STRIP
Public
PUB
1 miles NW of DELL, MT
View on
Map
Status
Operational
Coordinates
44° 44' 09"N
112° 43' 11"W
Elevation
6007' MSL
Pattern Alt
7007' MSL
Mag Variation
16E
Fuel
None Listed
FSS
GREAT FALLS (GTF)
Sectional
GREAT FALLS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
5/16/24-6/13/24
KDLN (32nm)
VFR
9:53 PM MDT
RAW
Clear
Viz
10sm
Temp
53°F
Dew
26°F
Pres
30.03"Hg
Wind
140° 5kts
RMK
AO2 SLP143 T01171033
KDLN 010353Z AUTO 14005KT 10SM CLR 12/M03 A3003 RMK AO2 SLP143 T01171033
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
4U9 FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.

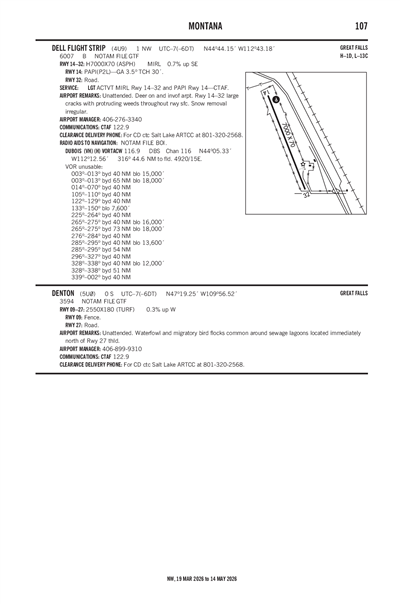

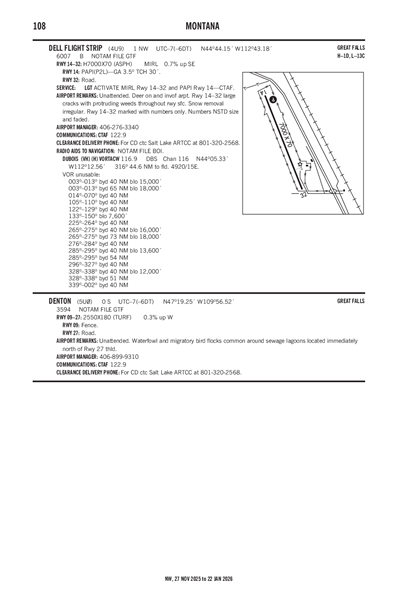

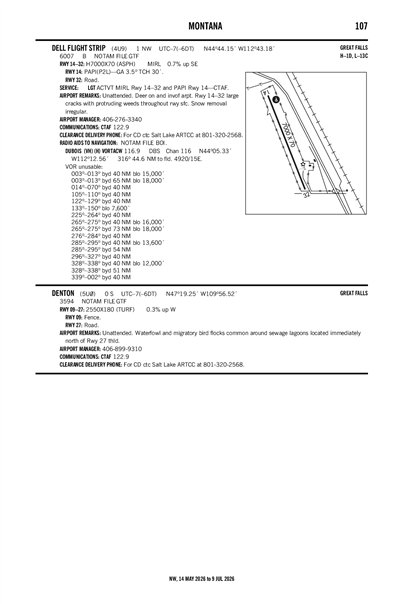

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KSMN (55nm)
RAW
Reported
Fri, 5/31 5:41 PM MDT
Valid
Fri, 5/31 6:00 PM MDT - Sat, 6/1 6:00 PM MDT
VFR
6:00 PM MDT - 6:00 PM MDT
Sky Clear
Viz
6sm
Wind
VRB° 5kts
KSMN 312341Z 0100/0124 VRB05KT P6SM SKC
4U9
Domestic
4/30/24
1749Z
!GTF 04/205 4U9 AD AP
CLSD
TO NGT OPS 2404301749-2407012350
3/23/24
1749Z
!GTF 03/294 4U9 OBST TOWER LGT (ASR 1237605) 443329.00N1121714.00W (21.3NM ESE 4U9) 7248.0FT (210.0FT AGL) U/S 2403231749-2407211749
ATC Tower
No
Attendance
UNATNDD
Owner
MONTANA AERONAUTICS DIVISION
PO BOX 200507
HELENA, MT 59620-0507
Phone: 406-444-2506
Manager
TIM CONWAY
BOX 200507
HELENA, MT 59620-0507
Phone: 406-444-2506
FSS
GREAT FALLS FSS (GTF)
Toll Free: 1-800-WX-BRIEF
NOTAM
GTF
Light Schedule
--
Lights
ACTVT MIRL RY 14/32 & PAPI RY 14 - CTAF.
Beacon
N/A
Wind Indicator
Yes
Segmented Cir.
No
Landing Fee
No
Parking
Tie-Down
Int'l Operations
No
# Single Engine
2
# Multi Engine
0
# Jets
1
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 14/32
Dimensions
7000 ft. x 70 ft.
Surface Type
ASPH
Surface Cond
Poor
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 14
Runway 32
True Heading
159°
339°
Traffic Pattern
Left
Left
Markings
NSTD
NSTD
Markings Condition
FAIR
FAIR
Latitude
44° 44' 41"N
44° 43' 36"N
Longitude
112° 43' 28"W
112° 42' 54"W
Elevation
5,958'
6,007'
Threshold Crossing Height
30 ft. AGL
--
Visual Glide Path Angle
3.5°
--
Visual Slope Indicator
P2L
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
SNOW REMOVAL IRREGULAR.
A110-2
DEER ON & INVOF ARPT.
A110-3
FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
DELL FLIGHT STRIP (IATA: 4U9) is a public airport located in DELL, MT.
