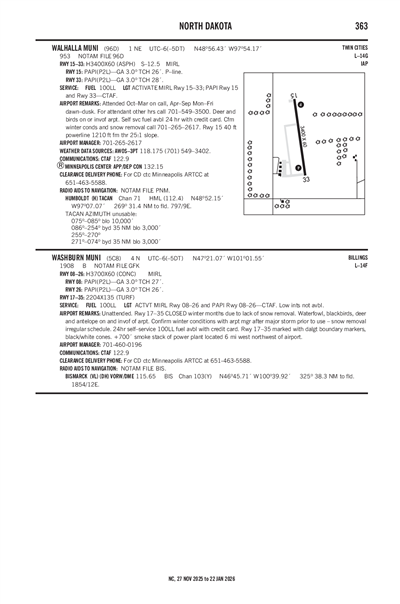

WASHBURN MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

5C8
WASHBURN MUNI
PublicPUB

4 miles N of WASHBURN, ND
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
47° 21' 04"N 101° 01' 33"W
1908' MSL
2908' MSL
10E
100LL
GRAND FORKS (GFK)
BILLINGS
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
K1CN (22nm) VFR
10:45 PM CDT
Light Rain
Overcast 8,500'
Few 6,500'
10sm
55°F
46°F
29.92"Hg
340° 4kts
AO2 RAB08E20RAB45 SLP136 $
K1CN 010345Z AUTO 34004KT 10SM -RA FEW065 OVC085 13/08 A2992 RMK AO2 RAB08E20RAB45 SLP136 $
Add Your Business

5C8 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KBIS (36nm)
Fri, 5/31 6:34 PM CDT
Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT
VFR
7:00 PM CDT - 7:00 AM CDT
Broken 8,000'
6sm
220° 7kts
VFR
7:00 AM CDT - 7:00 PM CDT
Sky Clear
6sm
VRB° 5kts
KBIS 312334Z 0100/0124 22007KT P6SM BKN080
   FM011200 VRB05KT P6SM SKC
5C8
Domestic
4/20/241742Z !GFK 04/175 5C8 OBST TOWER LGT (ASR 1243423) 472031.80N1010649.50W (3.6NM W 5C8) 2192.6FT (257.9FT AGL) U/S 2404201742-2406041741
No
UNATNDD
WASHBURN AIRPORT AUTHORITY
BOX 403
WASHBURN, ND 58577
Phone: (701) 390-3926
LYLE LELM
BOX 403
WASHBURN, ND 58577
Phone: 701-390-3926
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
GFK
--
ACTVT MIRL RWY 08/26 - CTAF. LOW INTST NOT AVBL.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
15
0
0
0
0
0
None
None
None
None
Crop Dusting

Runway 08/26

3700 ft. x 60 ft.
CONC
Good
NONE
MED

--
--
--
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 47° 21' 00"N 47° 21' 00"N
Longitude 101° 02' 01"W 101° 01' 08"W
Elevation 1,907' 1,907'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

2204 ft. x 135 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 47° 21' 21"N 47° 20' 60"N
Longitude 101° 01' 31"W 101° 01' 31"W
Elevation 1,904' 1,906'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1+700' SMOKE STACK OF POWER PLANT LOCATED 6 MI WNW OF ARPT.
A110-2WATERFOWL,BLACKBIRDS, DEER AND ANTELOPE ON AND INVOF OF ARPT.
A110-3CONFIRM WINTER CONDITIONS WITH ARPT MGR AFTER MAJOR STORM PRIOR TO USE - SNOW REMOVAL IRREGULAR SCHEDULE.
A110-4FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
WASHBURN MUNI (IATA: 5C8) is a public airport located in WASHBURN, ND.
