5M8
GURDON LOWE FLD
Public
PUB
1 miles NW of GURDON, AR
View on
Map
Status
Operational
Coordinates
33° 55' 26"N
93° 10' 05"W
Elevation
229' MSL
Pattern Alt
1229' MSL
Mag Variation
04E
Fuel
None Listed
FSS
JONESBORO (JBR)
Sectional
MEMPHIS
ARTCC
FORT WORTH (ZFW)
Data Effective
5/16/24-6/13/24
KADF (11nm)
VFR
12:25 AM CDT
RAW
Overcast 4,800'
Scattered 1,800'
Scattered 500'
Viz
10sm
Temp
70°F
Dew
70°F
Pres
29.96"Hg
Wind
360° 3kts
RMK
AO2 RAE0457
KADF 010525Z AUTO 36003KT 10SM SCT005 SCT018 OVC048 21/21 A2996 RMK AO2 RAE0457
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
5M8 FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.

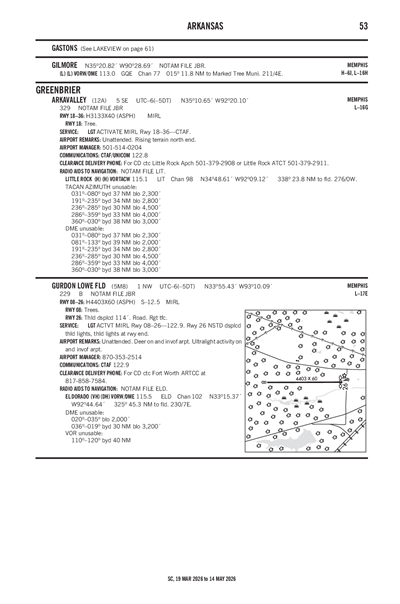

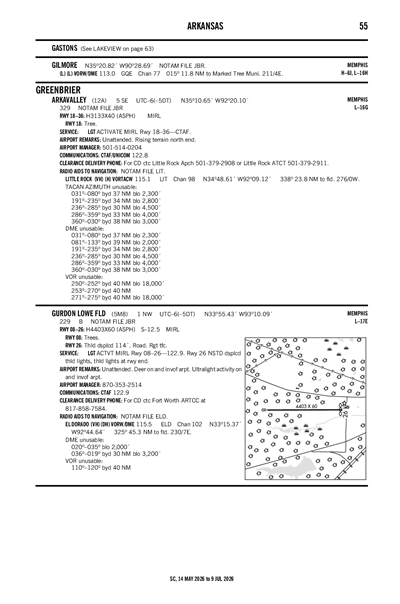

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KADF (11nm)
RAW
Reported
Sat, 6/1 12:29 AM CDT
Valid
Sat, 6/1 12:00 AM CDT - Sun, 6/2 1:00 AM CDT
VFR
12:00 AM CDT - 6:00 AM CDT
Overcast 4,000'
Viz
6sm
Wind
VRB° 4kts
MVFR
Temporary
1:00 AM CDT - 5:00 AM CDT
Mist
Overcast 3,000'
Viz
6sm
Wind
Calm
IFR
6:00 AM CDT - 11:00 AM CDT
Mist
Overcast 600'
Viz
4sm
Wind
VRB° 2kts
MVFR
Temporary
6:00 AM CDT - 10:00 AM CDT
Mist
Overcast 3,000'
Viz
6sm
Wind
Calm
MVFR
11:00 AM CDT - 1:00 AM CDT
Overcast 3,000'
Viz
6sm
Wind
270° 4kts
KADF 010529Z 0105/0206 VRB04KT P6SM OVC040
TEMPO 0106/0110 6SM BR OVC030
FM011100 VRB02KT 4SM BR OVC006
TEMPO 0111/0115 6SM BR OVC030
FM011600 27004KT P6SM OVC030
5M8
Domestic
5/27/24
0511Z
!JBR 05/475 5M8 OBST TOWER LGT (ASR 1037524) 335740.50N0930130.80W (7.5NM ENE 5M8) 682.7FT (327.8FT AGL) U/S 2405270511-2409240511
ATC Tower
No
Attendance
UNATNDD
Owner
CITY OF GURDON
P. O. BOX 246
GURDON, AR 71743
Phone: 870-353-2514
Manager
AMY WOODS
P. O. BOX 246
GURDON, AR 71743
Phone: 870-353-2514
FSS
JONESBORO FSS (JBR)
Toll Free: 1-800-WX-BRIEF
NOTAM
JBR
Light Schedule
--
Lights
ACTVT MIRL RY 08/26 - 122.9
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
No
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
2
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
1
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 08/26
Dimensions
4403 ft. x 60 ft.
Surface Type
ASPH
Surface Cond
Fair
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
12,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 08
Runway 26
True Heading
90°
270°
Traffic Pattern
Left
Right
Markings
BSC
BSC
Markings Condition
POOR
POOR
Latitude
33° 55' 26"N
33° 55' 26"N
Longitude
93° 10' 31"W
93° 09' 39"W
Elevation
--
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
ULTRALIGHT ACTIVITY ON & INVOF ARPT.
A110-2
RY 08/26 MAGNETIC DIRECTION 09/27.
A110-3
DEER ON & INVOF ARPT.
A110-4
FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
GURDON LOWE FLD (IATA: 5M8) is a public airport located in GURDON, AR.
