67L
MESQUITE
Public
PUB
2 miles N of MESQUITE, NV
View on
Map
Status
Operational
Coordinates
36° 49' 59"N
114° 03' 21"W
Elevation
1978' MSL
Pattern Alt
2978' MSL
Mag Variation
11E
Fuel
JET A, 100LL
FSS
RENO (RNO)
Sectional
LAS VEGAS
ARTCC
LOS ANGELES (ZLA)
Data Effective
5/16/24-6/13/24
KSGU (30nm)
VFR
8:56 PM MDT
RAW
Clear
Viz
10sm
Temp
92°F
Dew
25°F
Pres
29.78"Hg
Wind
280° 7kts
RMK
AO2 SLP043 T03331039 53002
KSGU 010256Z AUTO 28007KT 10SM CLR 33/M04 A2978 RMK AO2 SLP043 T03331039 53002
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
67L FBOs
Promote Listing
Mesquite Airport
UNICOM: 122.8
Phone: (702) 346-2841
0 Reviews
(
Read
|
Sign In To Write
)
Avfuel
As of
5/28
100LL
JET
A
JET
A (FSII)
MOGAS
UL94
Self Serve
5.98
Full Serve
5.95
6.05
Fuel Notes
Prices include tax
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.8
CTAF
122.8
AWOS-2
AWOS-2
702-345-7634
118.525

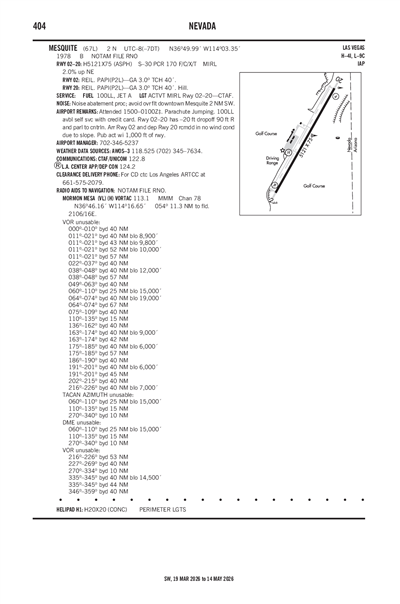

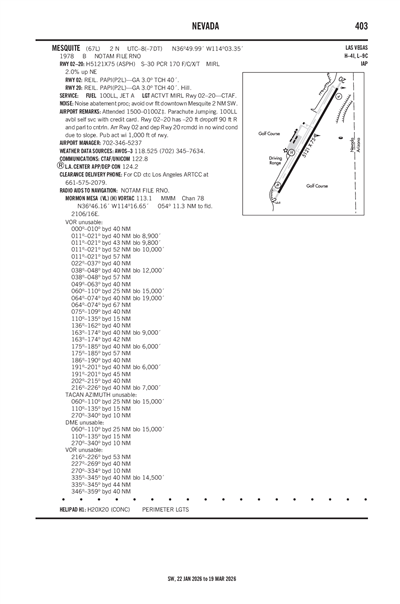

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 02
Terminal Area Forecast
KSGU (30nm)
RAW
Reported
Fri, 5/31 8:31 PM MDT
Valid
Fri, 5/31 9:00 PM MDT - Sat, 6/1 6:00 PM MDT
VFR
9:00 PM MDT - 11:00 PM MDT
Sky Clear
Viz
6sm
Wind
250° 8kts
VFR
11:00 PM MDT - 12:00 PM MDT
Sky Clear
Viz
6sm
Wind
140° 7kts
VFR
12:00 PM MDT - 6:00 PM MDT
Sky Clear
Viz
6sm
Wind
210° 14kts
Gusts 24kts
KSGU 010231Z 0103/0124 25008KT P6SM SKC
FM010500 14007KT P6SM SKC
FM011800 21014G24KT P6SM SKC
67L
Domestic
1/5/24
1332Z
!RNO 01/011 67L RWY 02 PAPI UNUSABLE 2401051332-2407052111EST
ATC Tower
No
Attendance
0700-1700
Owner
CITY OF MESQUITE
10 E MESQUITE BLVD
MESQUITE, NV 89027
Phone: 702-346-5295
Manager
TRAVIS ANDERSON
10 E MESQUITE BLVD
MESQUITE, NV 89027
Phone: 702-346-5237
FSS
RENO FSS (RNO)
Toll Free: 1-800-WX-BRIEF
NOTAM
RNO
Light Schedule
--
Lights
ACTVT MIRL RWY 02/20 - CTAF.
Beacon
N/A
Wind Indicator
Yes
Segmented Cir.
Yes
Landing Fee
No
Parking
Tie-Down
Int'l Operations
No
# Single Engine
17
# Multi Engine
0
# Jets
0
# Helicopters
2
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Air Ambulance
Cargo Handling
Glider Service
Parachute Jump Activity
Runway 02/20
Dimensions
5121 ft. x 75 ft.
Surface Type
ASPH
Surface Cond
Excellent
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
30,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 02
Runway 20
True Heading
29°
209°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
36° 49' 37"N
36° 50' 21"N
Longitude
114° 03' 37"W
114° 03' 06"W
Elevation
1,876'
1,978'
Threshold Crossing Height
40 ft. AGL
40 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Yes
Runway H1
Dimensions
20 ft. x 20 ft.
Surface Type
CONC
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway H1
Runway
True Heading
Not Listed
Not Listed
Traffic Pattern
Markings
Markings Condition
Latitude
N/A
N/A
Longitude
N/A
N/A
Elevation
--
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3
NOISE ABATEMENT PROC; AVOID OVR FLT DOWNTOWN MESQUITE 2 NM SW.
A110-4
PUB ACT WI 1000 FT OF RWY.
A110-6
FOR CD CTC LOS ANGELES ARTCC AT 661-575-2079.
A110-7
OTR CTC FBO - 702-246-2841/262-707-5980.
MESQUITE (IATA: 67L) is a public airport located in MESQUITE, NV.
