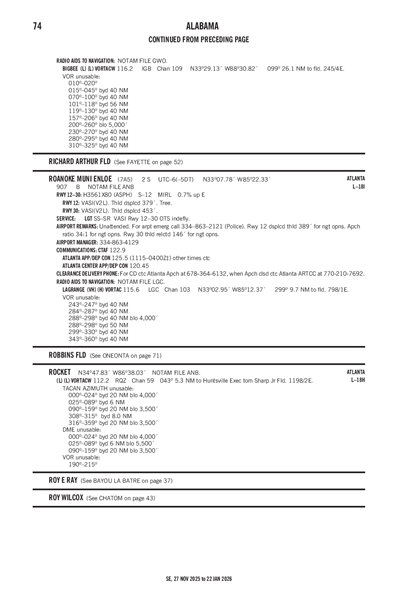

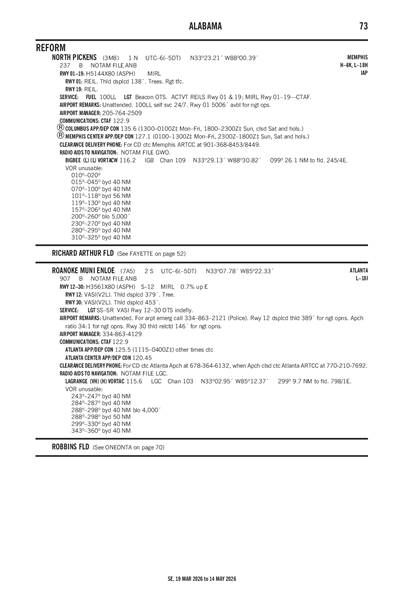

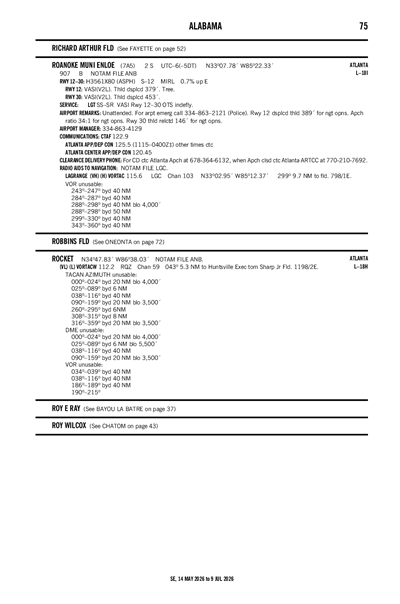

ROANOKE MUNI ENLOE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

7A5
ROANOKE MUNI ENLOE
PublicPUB

2 miles S of ROANOKE, AL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 07' 47"N 85° 22' 20"W
907' MSL
1907' MSL
01W
None Listed
ANNISTON (ANB)
ATLANTA
ATLANTA (ZTL)
5/16/24-6/13/24
KLGC (17nm) VFR
12:55 AM EDT
Clear
10sm
73°F
52°F
30.15"Hg
120° 5kts
AO2 T02250110
KLGC 010455Z AUTO 12005KT 10SM CLR 23/11 A3015 RMK AO2 T02250110
Add Your Business

7A5 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KANB (37nm)
Fri, 5/31 6:24 PM CDT
Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT
VFR
7:00 PM CDT - 1:00 AM CDT
Broken 25,000'
Broken 11,000'
6sm
110° 6kts
VFR
1:00 AM CDT - 2:00 AM CDT
Overcast 11,000'
6sm
100° 6kts
Shear 130° 40kts @ 2000'
VFR
2:00 AM CDT - 8:00 AM CDT
Overcast 10,000'
6sm
110° 7kts
MVFR
4:00 AM CDT - 8:00 AM CDT
Thunderstorm and Rain and Mist
Overcast 2,500'
4sm
Calm
MVFR
8:00 AM CDT - 10:00 AM CDT
Showers and Rain and Mist
Broken 2,700'
6sm
120° 7kts
MVFR
8:00 AM CDT - 10:00 AM CDT
Thunderstorm and Rain and Mist
Overcast 1,500'
4sm
Calm
MVFR
10:00 AM CDT - 7:00 PM CDT
Showers and Rain and Mist
Broken 1,300'
6sm
130° 9kts
MVFR
10:00 AM CDT - 4:00 PM CDT
Thunderstorm and Rain and Mist
Overcast 1,000'
4sm
Calm
KANB 312324Z 0100/0124 11006KT P6SM BKN110 BKN250
   FM010600 10006KT P6SM OVC110 WS020/13040KT
   FM010700 11007KT P6SM OVC100
   PROB30 0109/0113 4SM TSRA BR OVC025CB
   FM011300 12007KT 6SM SHRA BR BKN027
   PROB30 0113/0115 4SM TSRA BR OVC015CB
   FM011500 13009KT 6SM SHRA BR BKN013
   PROB30 0115/0121 4SM TSRA BR OVC010CB
7A5
Domestic
5/20/241603Z !ANB 05/819 7A5 OBST TOWER LGT (ASR 1259603) 330711.50N0853154.80W (8.1NM W 7A5) 1224.1FT (411.1FT AGL) U/S 2405201603-2406041503
5/20/240428Z !ANB 05/808 7A5 OBST TOWER LGT (ASR 1271600) 325935.50N0852343.30W (8.3NM S 7A5) 1175.2FT (310.0FT AGL) U/S 2405200428-2406040328
5/18/241944Z !ANB 05/776 7A5 OBST TOWER LGT (ASN 2018-ASO-26209-OE) 330236N0852104W (5.3NM SSE 7A5) 1110FT (260FT AGL) U/S 2405181944-2407021943
5/14/240731Z !ANB 05/636 7A5 OBST TOWER LGT (ASR 1314393) 331203.76N0851859.56W (5.2NM NNE 7A5) 1166FT (264FT AGL) U/S 2405140731-2406280731
1/26/241709Z !ANB 01/981 7A5 RWY 12/30 NOW 2463FT X 80FT. DECLARED DIST: RWY 12 TORA 2463FT TODA 2463FT ASDA 2463FT LDA 2010FT. RWY 30 TORA 2010FT TODA 2010FT ASDA 2010FT LDA 2010FT. 2401261709-2407312359
No
UNATNDD
CITY OF ROANOKE
P.O. BOX 1270
ROANOKE, AL 36274
Phone: 334-863-4129
JAMES JOHNSON
P.O. BOX 1270
ROANOKE, AL 36274
Phone: 334-338-4240
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
ANB
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
13
0
0
0
0
0
None
None
None
None
None

Runway 12/30

3561 ft. x 80 ft.
ASPH
Fair
NONE
MED

12,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 113°293°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 33° 07' 54"N 33° 07' 40"N
Longitude 85° 22' 39"W 85° 22' 01"W
Elevation 879' 904'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator V2L V2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR ARPT EMERGS CALL (334) 863-2121 (POLICE).
A110-2FOR CD CTC ATLANTA APCH AT 678-364-6132, WHEN APCH CLSD CTC ATLANTA ARTCC AT 770-210-7692.
ROANOKE MUNI ENLOE (IATA: 7A5) is a public airport located in ROANOKE, AL.
