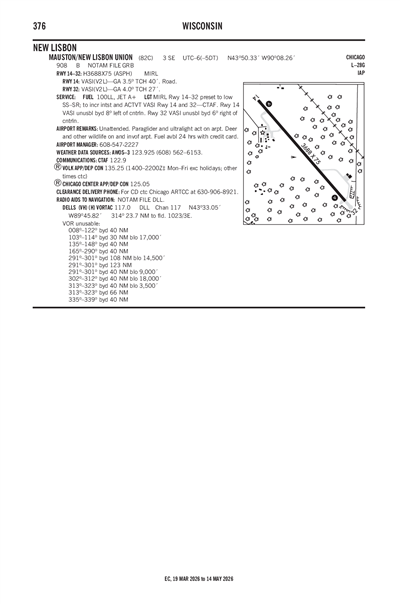

MAUSTON/NEW LISBON UNION - Airport Diagram

82C

MAUSTON/NEW LISBON UNION

PublicPUB

3 miles SE of NEW LISBON, WI

View on Map

Status

Operational

Coordinates

43° 50' 20"N 90° 08' 16"W

Elevation

908' MSL

Pattern Alt

1908' MSL

Mag Variation

01W

Fuel

JET A, 100LL

FSS

GREEN BAY (GRB)

Sectional

CHICAGO

ARTCC

CHICAGO (ZAU)

Data Effective

5/16/24-6/13/24

K82C VFR

9:35 PM CDT RAW

Clear

Viz

10sm

Temp

62°F

Dew

56°F

Pres

30.07"Hg

Wind

Calm

RMK

AO2 T01680133

K82C 010235Z AUTO 00000KT 10SM CLR 17/13 A3007 RMK AO2 T01680133

Add Your Business

82C FBOs

Promote Listing

Mauston-New Lisbon Union Airport

Phone: (608) 547-6503

0 Reviews (Read | Sign In To Write)

As of 5/28	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.18		4.80
Full Serve

Fuel Notes

Prices include tax

Your Information

Business

UNICOM -- CTAF 122.9

AWOS-3

608-562-6153

123.925

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

TAKEOFF MINIMUMS

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KVOK (8nm)

RAW

Reported

Fri, 5/31 12:03 PM CDT

Valid

Fri, 5/31 12:00 PM CDT - Sat, 6/1 6:00 PM CDT

VFR

12:00 PM CDT - 2:00 PM CDT

Sky Clear

Viz

6sm

Pres

30.06"Hg

Wind

170° 9kts

VFR

Becoming 2:00 PM CDT - 6:00 AM CDT

Broken 5,000'

Viz

6sm

Pres

29.97"Hg

Wind

180° 9kts

MVFR

Becoming 6:00 AM CDT - 6:00 PM CDT

Rain

Overcast 3,000'

Viz

4.97sm

Pres

29.88"Hg

Wind

VRB° 6kts

TAF KVOK 3117/0123 17009KT 9999 SKC QNH3006INS
BECMG 3119/3120 18009KT 9999 BKN050 QNH2997INS
BECMG 0111/0112 VRB06KT 8000 RA OVC030 QNH2987INS TX24/3122Z TN15/0111Z

82C

Domestic
5/16/241255Z	!GRB 05/226 82C OBST TOWER LGT (ASR 1035039) 435441.50N0901710.30W (7.8NM NW 82C) 1245.7FT (106.0FT AGL) U/S 2405161255-2406150001

ATC Tower

Attendance

UNATNDD

Owner

MAUSTON&NEW LISBON UNION CITY
CITY HALL
MAUSTON, WI 53948
Phone: 608-847-6676

Manager

DAVID SEITZ
W7493 FERDON RD
NEW LISBON, WI 53950
Phone: 608-547-2227

FSS

GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF

NOTAM

GRB

Light Schedule

Lights

ACTVT VASI RWY 14 & 32; MIRL RWY 14/32 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Pilot Instruction

Runway 14/32

Dimensions

3688 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 14	Runway 32
True Heading	139°	319°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	43° 50' 33"N	43° 50' 06"N
Longitude	90° 08' 32"W	90° 07' 59"W
Elevation	908'	899'
Threshold Crossing Height	40 ft. AGL	27 ft. AGL
Visual Glide Path Angle	3.5°	4°
Visual Slope Indicator	V2L	V2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-1	DEER ON & INVOF ARPT.
A110-2	FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A110-3	PARAGLDR ACT ON ARPT.

MAUSTON/NEW LISBON UNION (IATA: 82C) is a public airport located in NEW LISBON, WI.
