HARRISON COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

8G6
HARRISON COUNTY
PublicPUB

2 miles S of CADIZ, OH
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 14' 18"N 81° 00' 46"W
1176' MSL
2176' MSL
08W
100LL
CLEVELAND (CLE)
DETROIT
CLEVELAND (ZOB)
5/16/24-6/13/24
K2G2 (16nm) VFR
11:15 PM EDT
Few 3,500'
10sm
55°F
48°F
30.25"Hg
Calm
A01
K2G2 010315Z AUTO 00000KT 10SM FEW035 13/09 A3025 RMK A01
Add Your Business

8G6 FBOs

Promote Listing
DESAPI Air Services
UNICOM: 122.8
Phone: (740) 942-2316
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/9
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.55
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

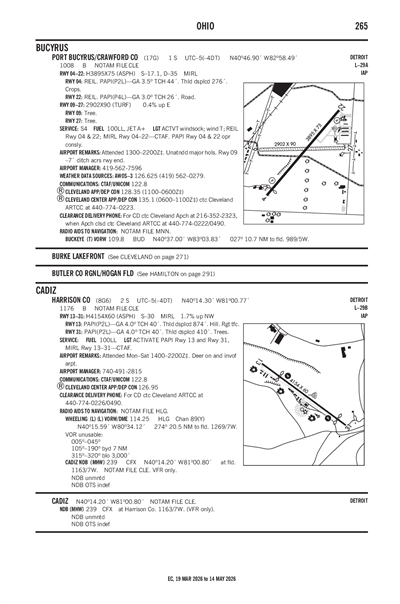

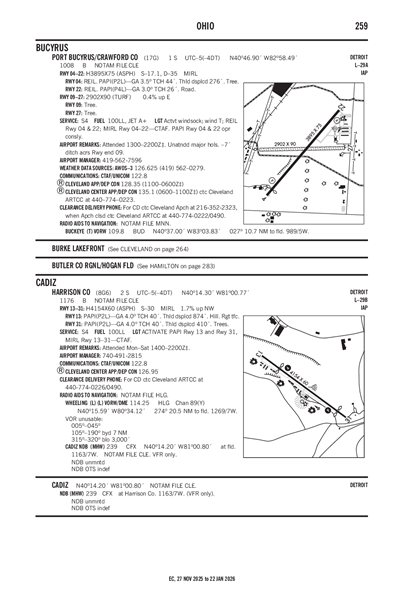

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KHLG (17nm)
Fri, 5/31 7:20 PM EDT
Fri, 5/31 8:00 PM EDT - Sat, 6/1 8:00 PM EDT
VFR
8:00 PM EDT - 11:00 AM EDT
Sky Clear
6sm
Calm
VFR
11:00 AM EDT - 8:00 PM EDT
Broken 25,000'
6sm
160° 5kts
KHLG 312320Z 0100/0124 00000KT P6SM SKC
   FM011500 16005KT P6SM BKN250
8G6
Domestic
5/13/242135Z !CLE 05/360 8G6 OBST TOWER LGT (ASR 1014831) 401725.30N0805316.60W (6.5NM ENE 8G6) 1605.0FT (269.0FT AGL) U/S 2405132135-2409102135
5/4/241832Z !CLE 05/071 8G6 OBST TOWER LGT (ASN 2017-AGL-8029-OE) 401143N0811056W (8.2NM WSW 8G6) 1461FT (310FT AGL) U/S 2405041832-2406181831
3/8/241755Z !CLE 03/156 8G6 OBST TOWER LGT (ASR 1245799) 401832.30N0811124.50W (9.1NM WNW 8G6) 1620.4FT (373.0FT AGL) U/S 2403081755-2503082359
FDC
5/7/241538Z !FDC 4/9747 8G6 IAP HARRISON COUNTY, CADIZ, OH.
RNAV (GPS) RWY 31, ORIG-C...
LNAV CATS A/B MDA 1740/HAT 577.
TEMPORARY RIG, 1387 MSL, 1.1NM SE OF RWY 31 (2023-AGL-3708-OE), TEMPORARY RIG, 1351 MSL, 1.04 NM EAST OF RWY 31 (2023-AGL-2757-OE).
2405071538-2409071538EST
5/7/241536Z !FDC 4/9744 8G6 ODP HARRISON COUNTY, CADIZ, OH.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 4...
TAKEOFF MINIMUMS: RWY 13, 300 - 1 3/8 OR STANDARD WITH MINIMUM CLIMB OF 398 FT PER NM TO 1600. TEMPORARY RIG 1387 MSL 1.1NM SE OF RWY 31 (2023-AGL-3708-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2405071536-2409071536EST
No
MON-SAT 0900-1700
HARRISON CO ARPT AUTH
43000 AIRPORT RD
CADIZ, OH 43907-9605
Phone: 740-942-2316
DARRIN LEAS
43000 AIRPORT RD
CADIZ, OH 43907-9605
Phone: 740-942-2316
CLEVELAND FSS (CLE)
Toll Free: 1-800-WX-BRIEF
CLE
--
ACTVT PAPI RWY 13 & 31; MIRL RWY 13/31 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
21
0
0
1
0
0
Major
Major
None
None
None

Runway 13/31

4154 ft. x 60 ft.
ASPH
Excellent
NONE
MED

30,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 126°306°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 14' 30"N 40° 14' 06"N
Longitude 81° 01' 08"W 81° 00' 25"W
Elevation 1,176' 1,106'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-2FOR CD CTC CLEVELAND ARTCC AT 440-774-0226/0490.
HARRISON COUNTY (IATA: 8G6) is a public airport located in CADIZ, OH.
