98D
ONIDA MUNI
Public
PUB
2 miles W of ONIDA, SD
View on
Map
Status
Operational
Coordinates
44° 42' 02"N
100° 06' 05"W
Elevation
1885' MSL
Pattern Alt
2885' MSL
Mag Variation
06E
Fuel
JET A, 100LL
FSS
HURON (HON)
Sectional
TWIN CITIES
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
5/16/24-6/13/24
KPIR (21nm)
VFR
10:53 PM CDT
RAW
Few 7,000'
Viz
10sm
Temp
53°F
Dew
45°F
Pres
30.01"Hg
Wind
140° 6kts
RMK
AO2 SLP161 T01170072
KPIR 010353Z AUTO 14006KT 10SM FEW070 12/07 A3001 RMK AO2 SLP161 T01170072
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
98D FBOs
Promote Listing
Onida Municipal Airport
Phone: (605) 258-2743
0 Reviews
(
Read
|
Sign In To Write
)
As of
5/16
100LL
JET
A
JET
A (FSII)
MOGAS
UL94
Self Serve
6.90
4.95
Full Serve
Fuel Notes
Prices include tax
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
AWOS-2
AWOS-2
617-262-3825
122.9

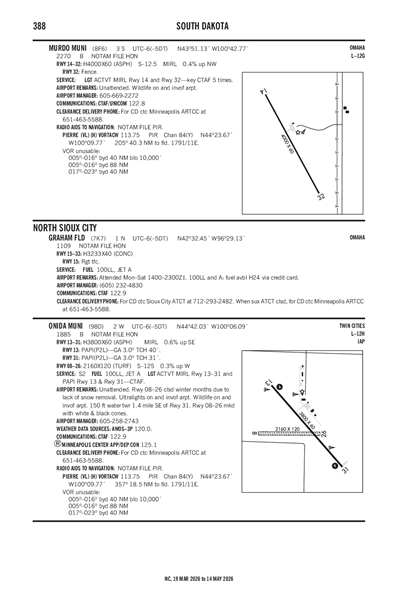

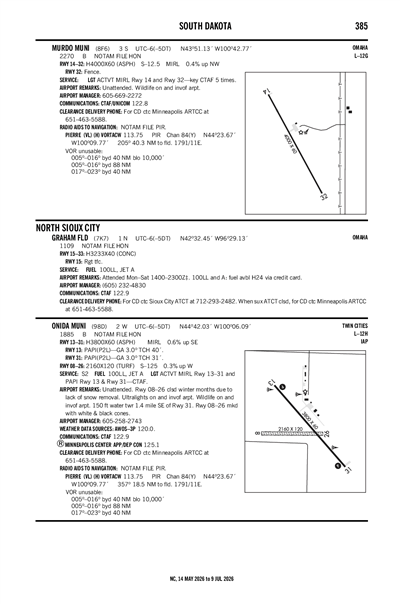

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 13
RNAV (GPS) RWY 31
Terminal Area Forecast
KPIR (21nm)
RAW
Reported
Fri, 5/31 6:20 PM CDT
Valid
Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT
VFR
7:00 PM CDT - 5:00 AM CDT
Broken 10,000'
Viz
6sm
Wind
VRB° 6kts
VFR
5:00 AM CDT - 3:00 PM CDT
Few 25,000'
Viz
6sm
Wind
210° 4kts
VFR
3:00 PM CDT - 7:00 PM CDT
Scattered 8,000'
Viz
6sm
Wind
140° 7kts
KPIR 312320Z 0100/0124 VRB06KT P6SM BKN100
FM011000 21004KT P6SM FEW250
FM012000 14007KT P6SM SCT080
98D
Domestic
5/29/24
1506Z
!HON 05/095 98D AD AP WINDCONE LGT U/S 2405291506-2406042200
5/29/24
0017Z
!HON 05/091 98D RWY 13 PAPI U/S 2405290017-2406112359
ATC Tower
No
Attendance
UNATNDD
Owner
CITY OF ONIDA
PO BOX 72
ONIDA, SD 57564
Phone: 605-258-2441
Manager
TERRY BARBER
PO BOX 131
ONIDA, SD 57564
Phone: 605-258-2743
FSS
HURON FSS (HON)
Toll Free: 1-800-WX-BRIEF
NOTAM
HON
Light Schedule
--
Lights
ACTVT MIRL RWY 13/31 & PAPI RWY 13 & 31 - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
No
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
14
# Multi Engine
0
# Jets
0
# Helicopters
1
# Military
0
# Ultralights
0
Airframe Repair
Minor
Pwrplant Repair
Minor
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Crop Dusting
Runway 08/26
Dimensions
2160 ft. x 120 ft.
Surface Type
TURF
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
125,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 08
Runway 26
True Heading
91°
271°
Traffic Pattern
Left
Left
Markings
Markings Condition
Latitude
44° 42' 00"N
44° 42' 00"N
Longitude
100° 06' 26"W
100° 05' 56"W
Elevation
1,883'
1,876'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway 13/31
Dimensions
3800 ft. x 60 ft.
Surface Type
ASPH
Surface Cond
Excellent
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 13
Runway 31
True Heading
139°
319°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
GOOD
FAIR
Latitude
44° 42' 17"N
44° 41' 49"N
Longitude
100° 06' 19"W
100° 05' 45"W
Elevation
1,861'
1,885'
Threshold Crossing Height
40 ft. AGL
31 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
150 FT WATER TWR 1.4 MILE SE OF RWY 31.
A110-2
ULTRA-LIGHT ACT ARND ARPT.
A110-3
WILDLIFE ON AND INVOF ARPT.
A110-4
FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
ONIDA MUNI (IATA: 98D) is a public airport located in ONIDA, SD.
