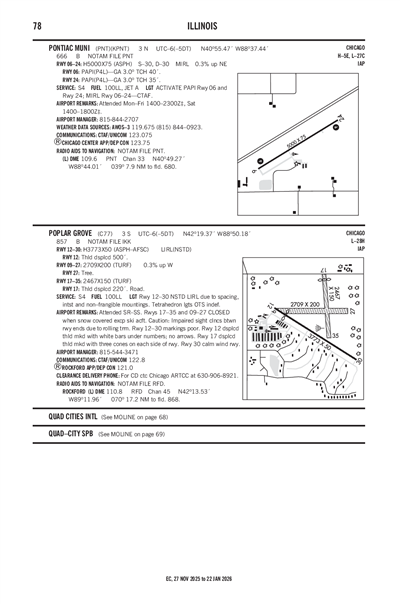

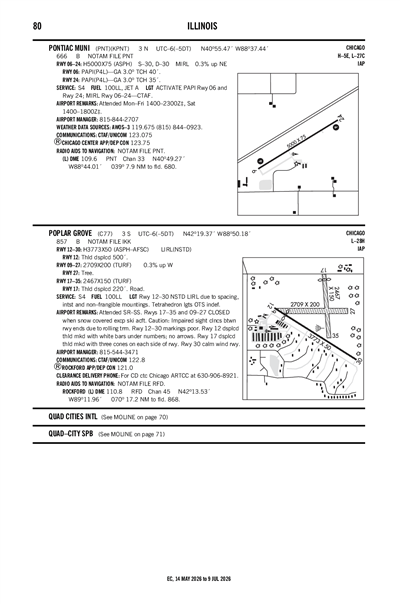

POPLAR GROVE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

C77
POPLAR GROVE
PublicPUB

3 miles S of POPLAR GROVE, IL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 19' 22"N 88° 50' 11"W
857' MSL
1857' MSL
03W
100LL
KANKAKEE (IKK)
CHICAGO
CHICAGO (ZAU)
5/16/24-6/13/24
KRFD (14nm) VFR
4:54 AM CDT
Few 25,000'
10sm
63°F
55°F
29.91"Hg
160° 5kts
AO2 SLP126 T01720128
KRFD 120954Z 16005KT 10SM FEW250 17/13 A2991 RMK AO2 SLP126 T01720128
Add Your Business

C77 FBOs

Promote Listing
Poplar Grove Airmotive
UNICOM: 122.8
Phone: (815) 544-3471
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 5/16
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.45
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KRFD (14nm)
Wed, 6/12 4:00 AM CDT
Wed, 6/12 4:00 AM CDT - Thu, 6/13 1:00 AM CDT
VFR
4:00 AM CDT - 12:00 PM CDT
Scattered 25,000'
Few 8,000'
6sm
200° 7kts
VFR
12:00 PM CDT - 8:00 PM CDT
Scattered 25,000'
Few 7,000'
6sm
240° 10kts
VFR
8:00 PM CDT - 1:00 AM CDT
Broken 25,000'
Few 7,000'
6sm
210° 8kts
KRFD 120900Z 1209/1306 20007KT P6SM FEW080 SCT250
   FM121700 24010KT P6SM FEW070 SCT250
   FM130100 21008KT P6SM FEW070 BKN250
C77
Domestic
6/12/240900Z !IKK 06/086 C77 OBST TOWER LGT (ASR 1207110) 422228.40N0885032.10W (3.1NM N C77) 1189.0FT (256.9FT AGL) U/S 2406120900-2410100900
5/23/241340Z !IKK 05/197 C77 OBST TOWER LGT (ASR 1303542) 420815.20N0884658.20W (11.33NM S C77) 1079FT (230FT AGL) U/S 2405231340-2406252359
3/18/241737Z !IKK 03/105 C77 OBST TOWER LGT (ASR 1005630) 421326.00N0884749.00W (6.2NM SSE C77) 1113.2FT (265.1FT AGL) U/S 2403181737-2406182359
No
SR-SS
STEVE THOMAS
11619 RTE 76
POPLAR GROVE, IL 61065
Phone: 815-544-3471
BKAKE . THOMAS
11619 RT 76
POPLAR GROVE, IL 61065
Phone: 815-544-3471
KANKAKEE FSS (IKK)
Toll Free: 1-800-WX-BRIEF
IKK
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
No
0
0
0
0
0
0
Major
Major
None
None
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 09/27

2709 ft. x 200 ft.
TURF
Good
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading 90°270°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 42° 19' 25"N 42° 19' 25"N
Longitude 88° 50' 31"W 88° 49' 55"W
Elevation 857' 849'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 12/30

3773 ft. x 50 ft.
ASPH
Good
AFSC
LOW

--
--
--
--
  Runway 12 Runway 30
True Heading 123°303°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition POOR POOR
Latitude 42° 19' 26"N 42° 19' 06"N
Longitude 88° 50' 33"W 88° 49' 51"W
Elevation 856' 850'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 17/35

2467 ft. x 150 ft.
TURF
Good
NONE


--
--
--
--
  Runway 17 Runway 35
True Heading 176°356°
Traffic Pattern
Markings
Markings Condition
Latitude 42° 19' 40"N 42° 19' 16"N
Longitude 88° 50' 07"W 88° 50' 05"W
Elevation 850' 849'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2CAUTION: IMPAIRED SIGHT CLNCS BTN RWY ENDS DUE TO ROLLING TRRN.
A110-3FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A110-4RWY 12/30 MARKINGS POOR.
POPLAR GROVE (IATA: C77) is a public airport located in POPLAR GROVE, IL.
