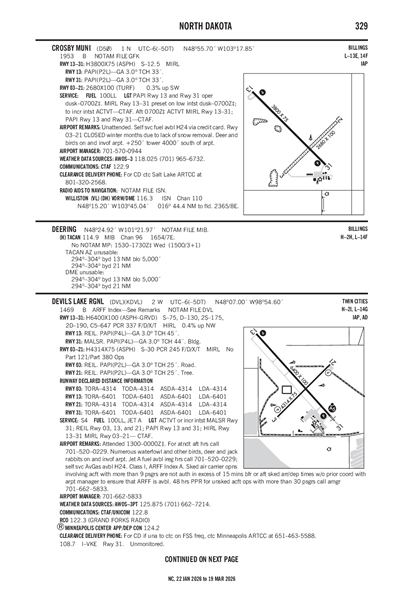

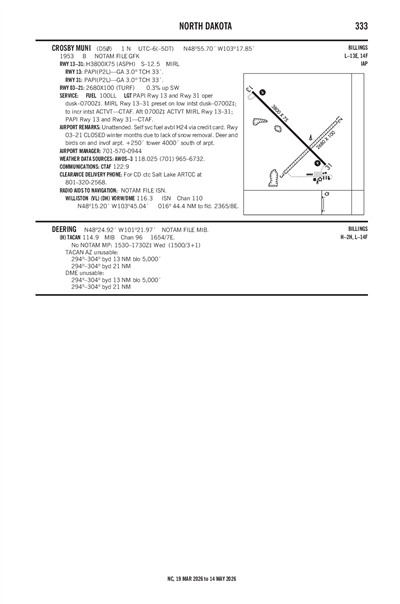

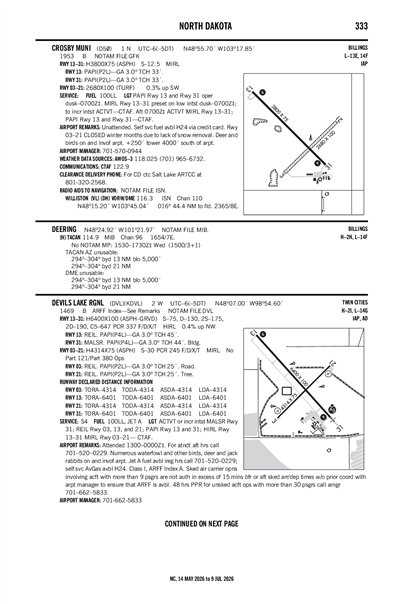

CROSBY MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

D50
CROSBY MUNI
PublicPUB

1 miles N of CROSBY, ND
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
48° 55' 42"N 103° 17' 51"W
1950' MSL
2950' MSL
11E
100LL
GRAND FORKS (GFK)
BILLINGS
SALT LAKE CITY (ZLC)
5/16/24-6/13/24
KD50 VFR
10:35 PM CDT
Scattered 9,500'
Few 8,000'
Few 5,500'
10sm
50°F
50°F
29.91"Hg
190° 4kts
AO2
KD50 010335Z AUTO 19004KT 10SM FEW055 FEW080 SCT095 10/10 A2991 RMK AO2
Add Your Business

D50 FBOs

Promote Listing
Crosby Municipal Airport
Phone: (701) 965-6512
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/10
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.50
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3

AWOS-3
701-965-6732
 118.025

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KXWA (44nm)
Fri, 5/31 6:34 PM CDT
Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT
VFR
7:00 PM CDT - 11:00 PM CDT
Broken 9,000'
6sm
260° 9kts
VFR
11:00 PM CDT - 7:00 PM CDT
Scattered 15,000'
6sm
260° 8kts
KXWA 312334Z 0100/0124 26009KT P6SM BKN090
   FM010400 26008KT P6SM SCT150
D50
Domestic
4/12/242310Z !GFK 04/099 D50 SVC AUTOMATED WX BCST SYSTEM ALTIMETER SETTING UNREL 2404122310-2406262000EST
FDC
3/4/241642Z !FDC 4/2420 D50 ODP CROSBY MUNI, CROSBY, ND.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
CHANGE ALL REFERENCES TO RWY 30 TO RWY 31.
CHANGE ALL REFERENCES TO RWY 12 TO RWY 13.
ALL OTHER DATA REMAINS AS PUBLISHED. 2403041642-2603041642EST
3/1/241810Z !FDC 4/1957 D50 IAP CROSBY MUNI, CROSBY, ND.
RNAV (GPS) RWY 30, ORIG-B...
CHANGE ALL REFERENCES TO RWY 30 TO RWY 31.
CHANGE ALL REFERENCES TO RWY 12 TO RWY 13.
2403011810-2603011810EST
No
UNATNDD
CROSBY ARPT AUTH
PO BOX 882
CROSBY, ND 58730
Phone: (701) 570-0944
MIKE MELBY
PO BOX 154
CROSBY, ND 58730
Phone: 701-570-0944
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
GFK
--
PAPI RYS 12 & 30 OPER DUSK-0100. MIRL RY 12/30 PRESET ON LOW INTST DUSK-0100; TO INCR INTST ACTVT - CTAF. AFT 0100 ACTVT MIRL RY 12/30 & PAPI RYS 12 & 30 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
11
1
0
0
0
0
None
None
None
None
Crop Dusting

Runway 03/21

2680 ft. x 100 ft.
TURF
Good
NONE


--
--
--
--
  Runway 03 Runway 21
True Heading 45°225°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 48° 55' 28"N 48° 55' 47"N
Longitude 103° 17' 59"W 103° 17' 30"W
Elevation 1,949' 1,942'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 12/30

3800 ft. x 60 ft.
ASPH
Fair
NONE
MED

12,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 134°314°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 48° 55' 58"N 48° 55' 32"N
Longitude 103° 18' 16"W 103° 17' 36"W
Elevation 1,950' 1,944'
Threshold Crossing Height 22 ft. AGL 23 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-2+250' TOWER 4000' SOUTH OF AIRPORT.
A110-3DEER AND BIRDS ON & INVOF ARPT.
A110-4FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
CROSBY MUNI (IATA: D50) is a public airport located in CROSBY, ND.
