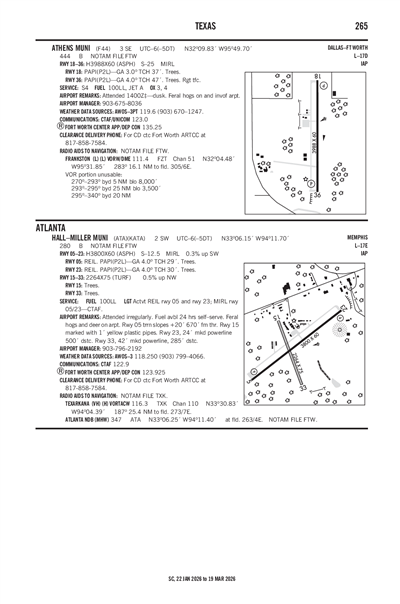

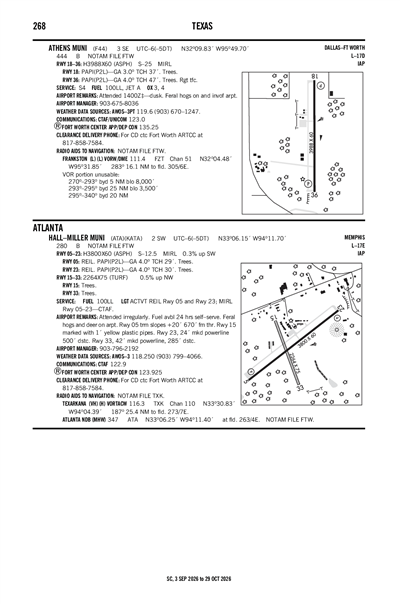

ATHENS MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

F44
ATHENS MUNI
PublicPUB

3 miles SE of ATHENS, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 09' 50"N 95° 49' 42"W
444' MSL
1444' MSL
02E
JET A, 100LL
FORT WORTH (FTW)
DALLAS-FT WORTH
FORT WORTH (ZFW)
5/16/24-6/13/24
KF44 VFR
9:55 PM CDT
Clear
10sm
70°F
68°F
29.93"Hg
Calm
AO2
KF44 010255Z AUTO 10SM CLR 21/20 A2993 RMK AO2
Add Your Business

F44 FBOs

Promote Listing
Dyson Aviation
UNICOM: 123.0
Phone: (903) 677-0669
Other: (903) 681-3294
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/21
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 4.70 4.56
Fuel Notes
Prices include tax
Promote Listing
Addco Aviation Services
UNICOM: 123.0
Phone: (903) 675-0086
Fax: (903) 288-4455
Other: (903) 288-4455
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 5/28
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.35
Full Serve 4.97
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3PT

AWOS-3PT
903-670-1247
 119.6

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KTYR (25nm)
Fri, 5/31 6:20 PM CDT
Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT
VFR
7:00 PM CDT - 1:00 AM CDT
Scattered 20,000'
6sm
VRB° 4kts
MVFR
1:00 AM CDT - 7:00 AM CDT
Broken 2,500'
6sm
150° 3kts
MVFR
7:00 AM CDT - 10:00 AM CDT
Overcast 1,000'
6sm
140° 3kts
MVFR
10:00 AM CDT - 1:00 PM CDT
Broken 1,500'
6sm
250° 5kts
VFR
1:00 PM CDT - 7:00 PM CDT
Broken 5,000'
6sm
210° 5kts
KTYR 312320Z 0100/0124 VRB04KT P6SM SCT200
   FM010600 15003KT P6SM BKN025
   FM011200 14003KT P6SM OVC010
   FM011500 25005KT P6SM BKN015
   FM011800 21005KT P6SM BKN050
F44
Domestic
5/31/241210Z !FTW 05/193 F44 OBST TOWER LGT (ASR 1213117) 315720.50N0955850.00W (14.7NM SSW F44) 729.0FT (419.0FT AGL) U/S 2405311210-2409281210
5/31/241033Z !FTW 05/184 F44 OBST TOWER LGT (ASR 1214695) 320829.70N0960444.50W (12.9NM W F44) 707.0FT (415.0FT AGL) U/S 2405311033-2409281033
5/31/240133Z !FTW 05/150 F44 OBST TOWER LGT (ASR 1244626) 320423.40N0955918.20W (9.8NM SW F44) 615.8FT (259.8FT AGL) U/S 2405310133-2409280133
5/30/242158Z !FTW 05/135 F44 OBST TOWER LGT (ASR 1284077) 321342.20N0953856.70W (10.0NM ENE F44) 708.7FT (259.8FT AGL) U/S 2405302158-2409272158
5/28/241705Z !FTW 05/988 F44 OBST TOWER LGT (ASR 1245096) 321101.10N0955710.50W (6.5NM W F44) 732.9FT (363.8FT AGL) U/S 2405281705-2406121605
5/28/241326Z !FTW 05/936 F44 OBST TOWER LGT (ASR 1271261) 321712.60N0954458.90W (8.4NM NNE F44) 708.3FT (260.2FT AGL) U/S 2405281326-2409251326
5/28/241311Z !FTW 05/928 F44 OBST TOWER LGT (ASR 1215055) 322329.10N0955058.10W (13.6NM N F44) 851.0FT (409.1FT AGL) U/S 2405281311-2409251311
5/21/240421Z !FTW 05/604 F44 OBST TOWER LGT (ASR 1243003) 322003.90N0960132.90W (14.3NM NW F44) 765.1FT (370.1FT AGL) U/S 2405210421-2406050321
5/20/241140Z !FTW 05/582 F44 OBST TOWER LGT (ASR 1269330) 315758.80N0960141.90W (15.7NM SW F44) 620.1FT (330.1FT AGL) U/S 2405201140-2406041040
5/20/240509Z !FTW 05/579 F44 OBST TOWER LGT (ASR 1269321) 320223.20N0954731.50W (7.6NM SSE F44) 717.2FT (326.1FT AGL) U/S 2405200509-2406040409
5/16/241500Z !FTW 05/477 F44 OBST TOWER LGT (ASR 1228474) 320959.40N0960215.90W (10.7NM W F44) 609.9FT (257.9FT AGL) U/S 2405161500-2408140400
5/12/242143Z !FTW 05/364 F44 OBST TOWER LGT (ASR 1311718) 321641.60N0955837.70W (10.21NM NW F44) 606FT (250FT AGL) U/S 2405122143-2406122359
4/10/240100Z !FTW 04/288 F44 OBST TOWER LGT (ASR 1207581) 321735.20N0955859.30W (11.0NM NW F44) 674.9FT (259.8FT AGL) U/S 2404100100-2407080400
4/8/242301Z !FTW 04/176 F44 OBST TOWER LGT (ASR 1066076) 321411.00N0955021.00W (4.4NM N F44) 899.9FT (419.9FT AGL) U/S 2404082301-2406072359
No
0800-DUSK
CITY OF ATHENS
508 E. TYLER
ATHENS, TX 75751
Phone: 903-675-5131
TIM PERRY
508 E. TYLER
ATHENS, TX 75751
Phone: 903-675-0066
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
FTW
Sunset to Sunrise
--
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
19
4
4
0
0
0
Major
Major
High & Low Pressure
None
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 18/36

3988 ft. x 60 ft.
ASPH
Good
NONE
MED

25,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 32° 10' 10"N 32° 09' 30"N
Longitude 95° 49' 42"W 95° 49' 42"W
Elevation 438' 437'
Threshold Crossing Height 37 ft. AGL 47 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2FERAL HOGS ON AND INVOF ARPT.
A110-3FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
ATHENS MUNI (IATA: F44) is a public airport located in ATHENS, TX.
