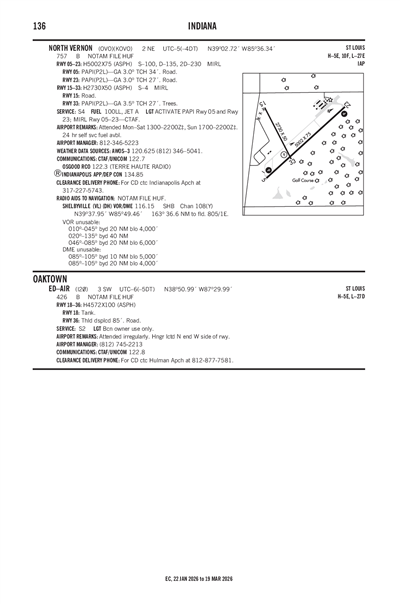

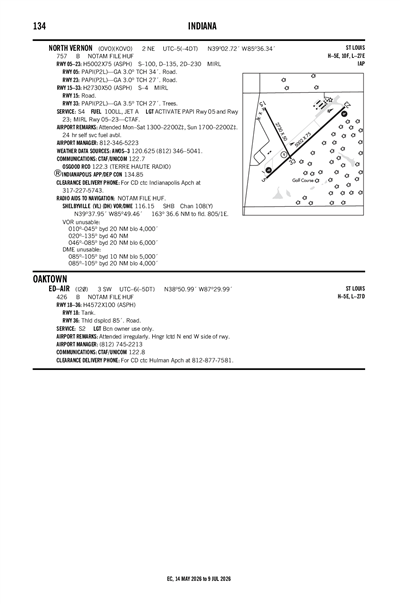

ED-AIR - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

I20
ED-AIR
PublicPUB

3 miles SW of OAKTOWN, IN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 51' 05"N 87° 29' 59"W
426' MSL
1426' MSL
01W
None Listed
TERRE HAUTE (HUF)
ST LOUIS
INDIANAPOLIS (ZID)
5/16/24-6/13/24
KLWV (7nm) VFR
8:53 PM CDT
Clear
10sm
73°F
59°F
29.95"Hg
180° 7kts
AO2 SLP138 T02280150
KLWV 130153Z AUTO 18007KT 10SM CLR 23/15 A2995 RMK AO2 SLP138 T02280150
Add Your Business

I20 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KHUF (37nm)
Wed, 6/12 7:20 PM EDT
Wed, 6/12 8:00 PM EDT - Thu, 6/13 8:00 PM EDT
VFR
8:00 PM EDT - 12:00 PM EDT
Few 25,000'
6sm
210° 7kts
VFR
12:00 PM EDT - 8:00 PM EDT
Scattered 25,000'
6sm
210° 10kts
Gusts 18kts
KHUF 122320Z 1300/1324 21007KT P6SM FEW250
   FM131600 21010G18KT P6SM SCT250
I20
Domestic
6/12/241250Z !HUF 06/263 I20 OBST TOWER LGT (ASR 1034340) 384754.20N0872230.10W (6.6NM ESE I20) 835.0FT (299.9FT AGL) U/S 2406121250-2409100400
No
IREG
EDWARD A. HUDDLESTON
2253 EAST AIRPORT ROAD
OAKTOWN, IN 47561
Phone: (812) 745-2213
EDWARD A. HUDDLESTON
2253 EAST AIRPORT ROAD
OAKTOWN, IN 47561
Phone: (812) 745-2213
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
HUF
--
BCN OWNER USE ONLY.
N/A
Yes
No
No
None
No
1
2
0
1
0
0
Minor
Minor
None
None
None

Runway 18/36

5835 ft. x 100 ft.
ASPH
Fair
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 38° 51' 34"N 38° 50' 37"N
Longitude 87° 29' 60"W 87° 29' 59"W
Elevation 426' 426'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1HNGR LCTD N END W SIDE OF RWY.
A110-2FOR CD CTC HULMAN APCH AT 812-877-7581.
ED-AIR (IATA: I20) is a public airport located in OAKTOWN, IN.
