GRAND GLAIZE-OSAGE BEACH - Airport Diagram

K15

GRAND GLAIZE-OSAGE BEACH

PublicPUB

1 miles SW of OSAGE BEACH, MO

View on Map

Status

Operational

Coordinates

38° 06' 38"N 92° 40' 50"W

Elevation

876' MSL

Pattern Alt

1876' MSL

Mag Variation

02E

Fuel

JET A, 100LL

FSS

COLUMBIA (COU)

Sectional

KANSAS CITY

ARTCC

KANSAS CITY (ZKC)

Data Effective

5/16/24-6/13/24

KAIZ (6nm) VFR

11:56 PM CDT RAW

Clear

Viz

10sm

Temp

71°F

Dew

65°F

Pres

29.95"Hg

Wind

170° 5kts

RMK

AO2 SLP130 T02170183 PNO $

KAIZ 130456Z AUTO 17005KT 10SM CLR 22/18 A2995 RMK AO2 SLP130 T02170183 PNO $

Add Your Business

K15 FBOs

Promote Listing

Osage Beach Airport

UNICOM: 122.8

Phone: (573) 348-4469

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 6/3	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	5.90		5.59

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.8 CTAF 122.8

No communication frequencies available for this airport.

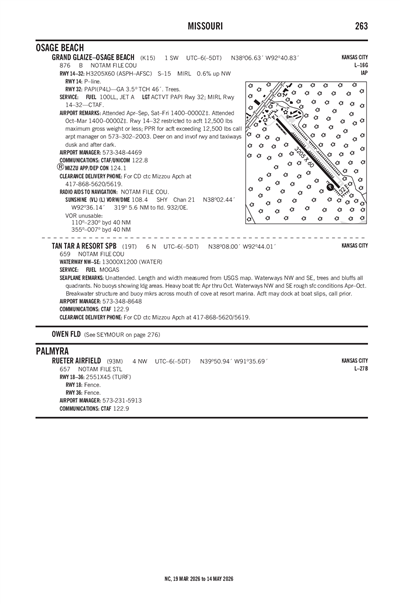

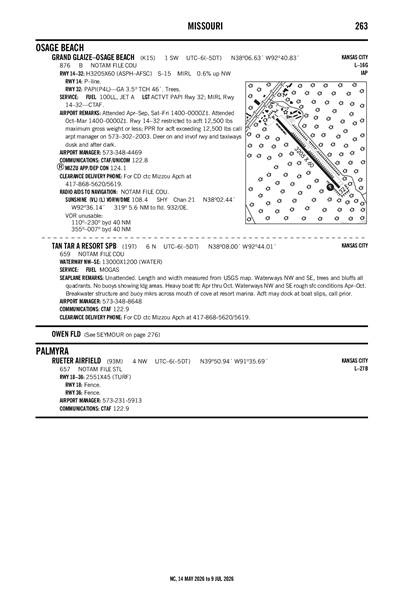

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

TAKEOFF MINIMUMS

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KTBN (34nm)

RAW

Reported

Wed, 6/12 4:00 PM CDT

Valid

Wed, 6/12 4:00 PM CDT - Thu, 6/13 10:00 PM CDT

VFR

4:00 PM CDT - 10:00 PM CDT

Scattered 12,000'

Viz

6sm

Pres

29.88"Hg

Wind

VRB° 6kts

TAF KTBN 122100Z 1221/1403 VRB06KT 9999 SCT120 QNH2988INS TX30/1221Z TN19/1311Z LAST NO AMDS AFT 1303 NEXT 1313

K15

Domestic
6/9/240648Z	!COU 06/155 K15 OBST TOWER LGT (ASR 1005439) 380914.40N0923653.90W (4.1NM NE K15) 1138.1FT (243.1FT AGL) U/S 2406090648-2407090001
5/4/241200Z	!COU 05/019 K15 AIRSPACE SEE SHY 05/018 PARAGLD DLY 1200-0100 2405041200-2409160100

ATC Tower

Attendance

APR-SEP SAT-THU 0800-1800
APR-SEP FRI 0800-2000
OCT-MAR 0800-1800

Owner

CITY OF OSAGE BEACH
1000 CITY PARKWAY
OSAGE BEACH, MO 65065
Phone: 573-302-2000

Manager

TY DINSDALE
1000 CITY PARKWAY
OSAGE BEACH, MO 65065
Phone: 573-348-4469

FSS

COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF

NOTAM

COU

Light Schedule

Lights

ACTVT PAPI RWY 32; MIRL RWY 14/32 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 14/32

Dimensions

3205 ft. x 60 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

AFSC

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

15,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 14	Runway 32
True Heading	142°	322°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	38° 06' 50"N	38° 06' 25"N
Longitude	92° 41' 02"W	92° 40' 38"W
Elevation	876'	858'
Threshold Crossing Height	--	46 ft. AGL
Visual Glide Path Angle	--	3.5°
Visual Slope Indicator	--	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-1	DEER ON AND INVOF RY & TWYS DUSK AND AFT DARK.
A110-2	FOR CD CTC MIZZOU APCH AT 417-868-5620/5619.

GRAND GLAIZE-OSAGE BEACH (IATA: K15) is a public airport located in OSAGE BEACH, MO.
