K19

ALBANY MUNI

PublicPUB

1 miles N of ALBANY, MO

View on Map

Status

Operational

Coordinates

40° 15' 44"N 94° 20' 20"W

Elevation

891' MSL

Pattern Alt

1891' MSL

Mag Variation

05E

Fuel

100LL

FSS

COLUMBIA (COU)

Sectional

OMAHA

ARTCC

KANSAS CITY (ZKC)

Data Effective

5/16/24-6/13/24

KEVU (27nm) VFR

11:15 PM CDT RAW

Broken 10,000'
Scattered 6,500'

Viz

10sm

Temp

67°F

Dew

60°F

Pres

30.00"Hg

Wind

Calm

RMK

AO2 T01930157

KEVU 010415Z AUTO 00000KT 10SM SCT065 BKN100 19/15 A3000 RMK AO2 T01930157

Add Your Business

K19 FBOs

Promote Listing

Albany Municipal Airport

Phone: (660) 726-3935

0 Reviews (Read | Sign In To Write)

Independent

As of 5/21	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	6.55
Full Serve

Fuel Notes

Prices include tax

Your Information

Business

UNICOM -- CTAF 122.9

No communication frequencies available for this airport.

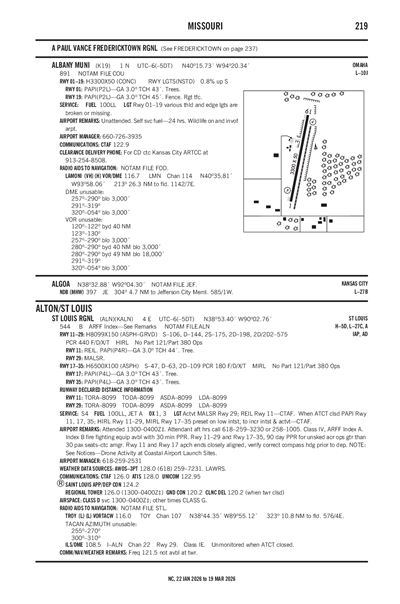

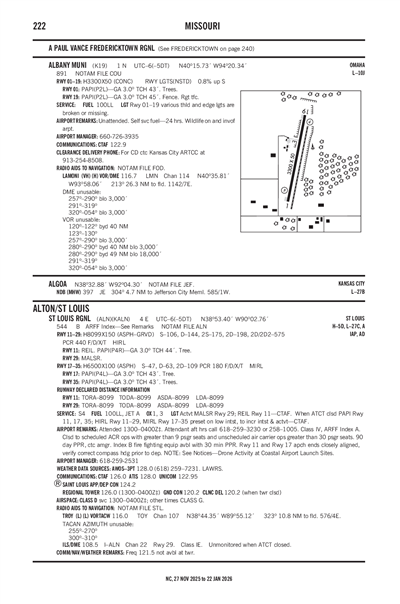

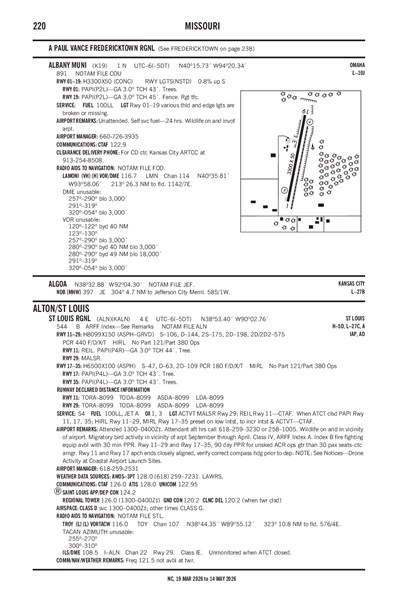

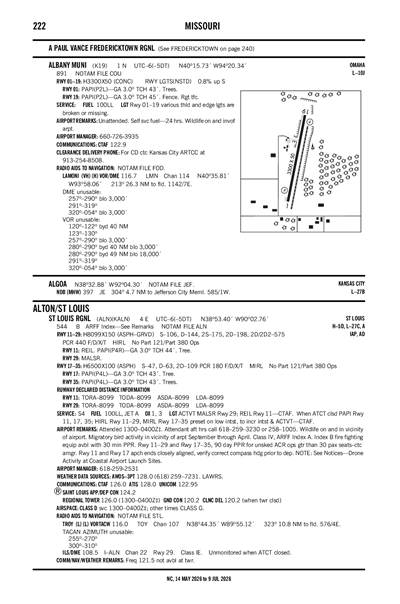

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

No Documents

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

No Documents

Terminal Area Forecast

KSTJ (40nm)

RAW

Reported

Fri, 5/31 10:40 PM CDT

Valid

Fri, 5/31 11:00 PM CDT - Sat, 6/1 7:00 PM CDT

VFR

11:00 PM CDT - 2:00 AM CDT

Showers in vicinity

Overcast 5,000'

Viz

6sm

Wind

120° 7kts

MVFR

2:00 AM CDT - 5:00 AM CDT

Mist

Overcast 1,200'

Viz

5sm

Wind

340° 5kts

IFR

5:00 AM CDT - 8:00 AM CDT

Mist

Overcast 800'

Viz

5sm

Wind

340° 5kts

MVFR

8:00 AM CDT - 11:00 AM CDT

Overcast 1,500'

Viz

6sm

Wind

350° 5kts

MVFR

11:00 AM CDT - 1:00 PM CDT

Overcast 2,500'

Viz

6sm

Wind

340° 5kts

VFR

1:00 PM CDT - 7:00 PM CDT

Broken 5,000'

Viz

6sm

Wind

320° 6kts

KSTJ 010340Z 0104/0124 12007KT P6SM VCSH OVC050
   FM010700 34005KT 5SM BR OVC012
   FM011000 34005KT 5SM BR OVC008
   FM011300 35005KT P6SM OVC015
   FM011600 34005KT P6SM OVC025
   FM011800 32006KT P6SM BKN050

K19

Domestic
5/25/240549Z	!COU 05/481 K19 OBST TOWER LGT (ASR 1245961) 400411.20N0943126.90W (14.4NM SW K19) 1404.2FT (310.0FT AGL) U/S 2405250549-2406090449
5/6/241424Z	!COU 05/106 K19 OBST TOWER LGT (ASN 2021-ACE-8851-OE) 401559N0941837W (1.3NM E K19) 1430FT (449FT AGL) U/S 2405061424-2406201423

ATC Tower

Attendance

UNATNDD

Owner

CITY OF ALBANY
106 E CLAY
ALBANY, MO 64402
Phone: 660-726-3935

Manager

DEREK BROWN
106 E. CLAY
ALBANY, MO 64402
Phone: 660-726-3935

FSS

COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF

NOTAM

COU

Light Schedule

Lights

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

None

Int'l Operations

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 01/19

Dimensions

3300 ft. x 50 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

NSTD

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 01	Runway 19
True Heading	12°	192°
Traffic Pattern		Right
Markings	BSC	BSC
Markings Condition	GOOD	GOOD
Latitude	40° 15' 28"N	40° 15' 60"N
Longitude	94° 20' 25"W	94° 20' 16"W
Elevation	865'	891'
Threshold Crossing Height	43 ft. AGL	45 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-2	WILDLIFE ON & INVOF ARPT.
A110-3	FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.

ALBANY MUNI (IATA: K19) is a public airport located in ALBANY, MO.
