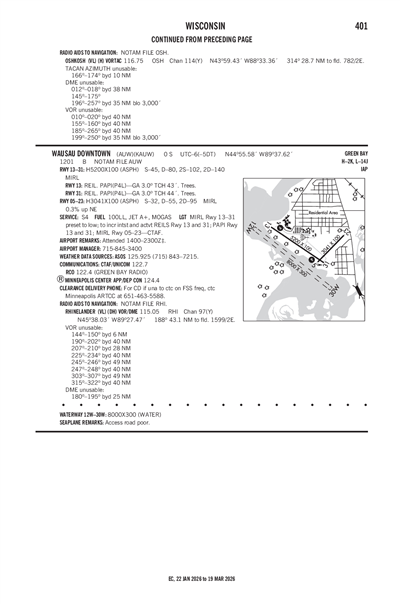

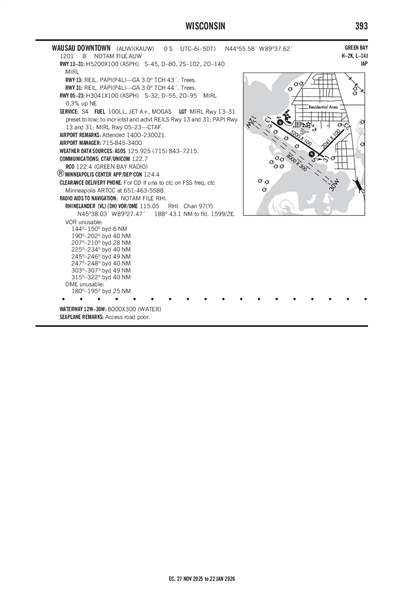

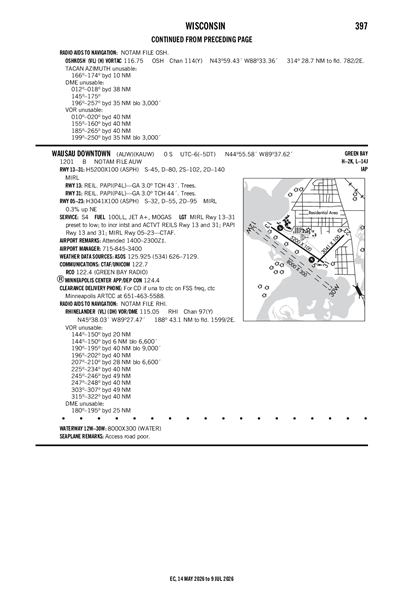

WAUSAU DOWNTOWN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAUW
WAUSAU DOWNTOWN
PublicPUB

0 miles S of WAUSAU, WI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
44° 55' 35"N 89° 37' 37"W
1201' MSL
2201' MSL
03W
JET A, 100LL, MOGAS
GREEN BAY (GRB)
GREEN BAY
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KAUW VFR
10:54 PM CDT
Clear
10sm
67°F
48°F
30.06"Hg
Calm
AO2 SLP181 T01940089
KAUW 010354Z AUTO 00000KT 10SM CLR 19/09 A3006 RMK AO2 SLP181 T01940089
Add Your Business

KAUW FBOs

Promote Listing
Wausau Flying Service
UNICOM: 122.7
Phone: (715) 845-3400
Other: (715) 848-6000
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66, Other
As of 5/24
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.10 4.40
Full Serve 5.00
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

ASOS

ASOS
715-843-7215
 125.925

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KAUW
Fri, 5/31 6:20 PM CDT
Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT
VFR
7:00 PM CDT - 4:00 AM CDT
Broken 6,000'
6sm
180° 4kts
VFR
4:00 AM CDT - 11:00 AM CDT
Light Showers and Rain
Overcast 5,000'
6sm
180° 4kts
VFR
11:00 AM CDT - 7:00 PM CDT
Overcast 3,500'
6sm
210° 6kts
MVFR
2:00 PM CDT - 6:00 PM CDT
Thunderstorm and Rain and Mist
Overcast 2,500'
5sm
Calm
KAUW 312320Z 0100/0124 18004KT P6SM BKN060
   FM010900 18004KT P6SM -SHRA OVC050
   FM011600 21006KT P6SM OVC035
   PROB30 0119/0123 5SM TSRA BR OVC025CB
KAUW
Domestic
5/30/241014Z !AUW 05/016 AUW OBST TOWER LGT (ASR 1322625) 445150.80N0892023.00W (12.78NM ESE AUW) 1609FT (304FT AGL) U/S 2405301014-2407140607
5/7/241421Z !AUW 05/001 AUW OBST TOWER LGT (ASR 1247687) 445949.90N0892207.40W (11.8NM ENE AUW) 1706.0FT (346.1FT AGL) U/S 2405071421-2408072359
4/30/241640Z !AUW 04/010 AUW OBST TOWER LGT (ASR 1036068) 450333.00N0892610.00W (11.4NM NE AUW) 2478.7FT (1013.8FT AGL) U/S 2404301640-2406141639
4/30/241446Z !AUW 04/009 AUW OBST TOWER LGT (ASR 1033821) 445126.00N0893516.00W (4.5NM SSE AUW) 1543.3FT (343.2FT AGL) U/S 2404301446-2410312359
4/26/241702Z !AUW 04/008 AUW OBST TOWER LGT (ASN 2022-AGL-22574-OE) 445756N0894948W (8.9NM WNW AUW) 1663FT (304FT AGL) U/S 2404261702-2406101701
4/23/241953Z !AUW 04/006 AUW OBST TOWER LGT (ASR 1310010) 445446.20N0895900.90W (15.2NM W AUW) 1593FT (334FT AGL) U/S 2404231953-2406232359
No
MAY-SEP MON-FRI 0800-1800
MAY-SEP SAT-SUN 0800-1700
OCT-APR 0800-1700
CITY OF WAUSAU
407 GRANT ST.
WAUSAU, WI 54403
Phone: 715-261-6740
JOHN P CHMIEL
725 WOODS PLACE
WAUSAU, WI 54401
Phone: 715-845-3400
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
AUW
--
ACTVT REIL RWY 13 & 31; PAPI RWY 13 & 31; MIRL RWY 5/23 & 13/31 - CTAF. MIRL RWY 13/31 PRESET LOW INTST; INCR INTST - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
69
0
4
0
0
0
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 05/23

3041 ft. x 100 ft.
ASPH
Fair
NONE
MED

32,000lbs
55,000lbs
95,000lbs
--
  Runway 05 Runway 23
True Heading 44°224°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 44° 55' 22"N 44° 55' 44"N
Longitude 89° 37' 28"W 89° 36' 59"W
Elevation 1,190' 1,201'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 12W/30W

8000 ft. x 300 ft.
WATER
Good
NONE


--
--
--
--
  Runway 12W Runway 30W
True Heading 128°308°
Traffic Pattern
Markings NONE NONE
Markings Condition GOOD GOOD
Latitude 44° 55' 49"N 44° 55' 00"N
Longitude 89° 38' 41"W 89° 37' 13"W
Elevation 1,166' 1,166'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

5200 ft. x 100 ft.
ASPH
Fair
NONE
MED

45,000lbs
80,000lbs
140,000lbs
--
  Runway 13 Runway 31
True Heading 124°304°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 44° 55' 50"N 44° 55' 21"N
Longitude 89° 38' 21"W 89° 37' 21"W
Elevation 1,192' 1,190'
Threshold Crossing Height 43 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
WAUSAU DOWNTOWN (ICAO: KAUW, IATA: AUW) is a public airport located in WAUSAU, WI.
