» Sign In

KBIE

BEATRICE MUNI

PublicPUB

3 miles N of BEATRICE, NE

View on Map

Status

Operational

Coordinates

40° 18' 05"N 96° 45' 15"W

Elevation

1324' MSL

Pattern Alt

2324' MSL

Mag Variation

04E

Fuel

JET A, 100LL

FSS

COLUMBUS (OLU)

Sectional

OMAHA

ARTCC

MINNEAPOLIS (ZMP)

Data Effective

5/16/24-6/13/24

KBIE VFR

11:55 PM CDT RAW

Clear

Viz

10sm

Temp

79°F

Dew

66°F

Pres

29.80"Hg

Wind

180° 9kts

RMK

AO2 T02610189

KBIE 130455Z AUTO 18009KT 10SM CLR 26/19 A2980 RMK AO2 T02610189

Add Your Business

KBIE FBOs

Promote Listing

Beatrice Municipal Airport

UNICOM: 122.8

Phone: (402) 223-5349

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 6/11	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.95
Full Serve	6.10		5.30

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.8 CTAF 122.8

AWOS-3

402-228-3229

125.325

FAA A/FD Pages

FAA A/FD Page

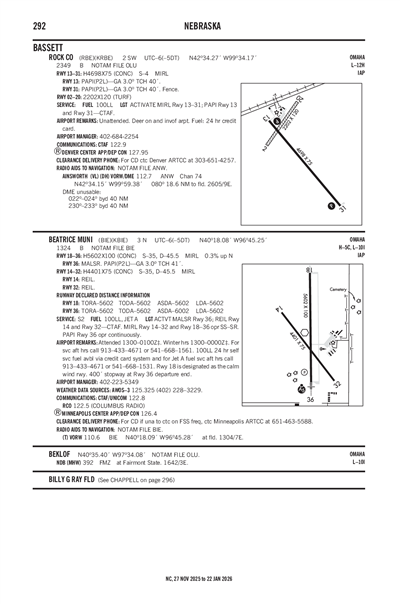

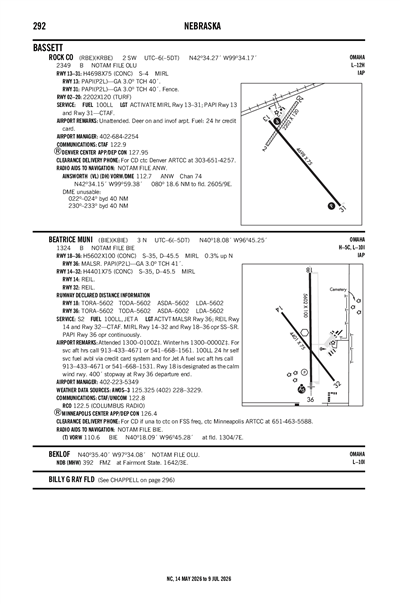

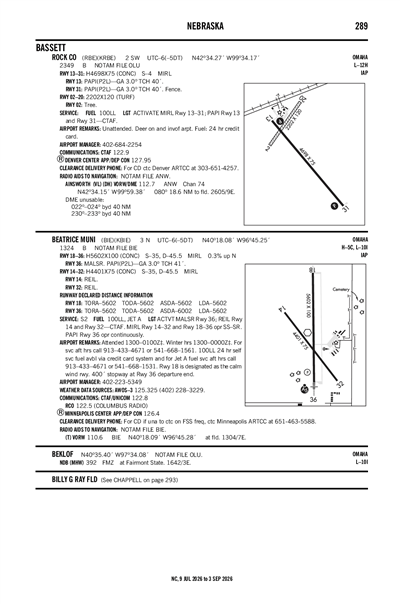

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KLNK (33nm)

RAW

Reported

Wed, 6/12 6:20 PM CDT

Valid

Wed, 6/12 7:00 PM CDT - Thu, 6/13 7:00 PM CDT

VFR

7:00 PM CDT - 10:00 PM CDT

Sky Clear

Viz

6sm

Wind

180° 16kts

Gusts 25kts

VFR

10:00 PM CDT - 12:00 AM CDT

Sky Clear

Viz

6sm

Wind

190° 11kts

VFR

12:00 AM CDT - 5:00 AM CDT

Sky Clear

Viz

6sm

Wind

210° 11kts

Shear 230° 40kts @ 1800'

VFR

5:00 AM CDT - 11:00 AM CDT

Few 25,000'

Viz

6sm

Wind

210° 9kts

VFR

11:00 AM CDT - 7:00 PM CDT

Few 25,000'

Viz

6sm

Wind

010° 12kts

Gusts 16kts

KLNK 122320Z 1300/1324 18016G25KT P6SM SKC
   FM130300 19011KT P6SM SKC
   FM130500 21011KT P6SM SKC WS018/23040KT
   FM131000 21009KT P6SM FEW250
   FM131600 01012G16KT P6SM FEW250

KBIE

Domestic
6/13/241054Z	!BIE 06/007 BIE AIRSPACE UAS WI AN AREA DEFINED AS 1NM RADIUS OF 403525.70N0962710.40W (17.2NM NW 0G3) SFC-100FT AGL DLY SR-SS 2406131054-2406230200
4/29/241949Z	!BIE 04/018 BIE OBST TOWER LGT (ASR 1029926) 401307.00N0965457.00W (8.9NM SW BIE) 1918.0FT (476.0FT AGL) U/S 2404291949-2408010100EST
4/24/240017Z	!BIE 04/014 BIE OBST TOWER LGT (ASR 1032460) 401454.00N0964738.00W (3.7NM SSW BIE) 1797.9FT (416.0FT AGL) U/S 2404240017-2407231159
4/3/241352Z	!BIE 04/001 BIE OBST TOWER LGT (ASR 1256092) 400759.50N0963803.70W (11.5NM SSE BIE) 1751.0FT (410.1FT AGL) U/S 2404031352-2407032359

ATC Tower

Attendance

0700-1900
WINTER HOURS 0700-1800
FOR SVC AFT HRS CALL 913-433-4671 OR 402-520-0856.

Owner

CITY OF BEATRICE
BOX 277
BEATRICE, NE 68310-0277
Phone: 402-223-5349

Manager

DENNIS SCHMITT
P.O. BOX 277
BEATRICE, NE 68310-0277
Phone: 402-223-5349

FSS

COLUMBUS FSS (OLU)
Toll Free: 1-800-WX-BRIEF

NOTAM

BIE

Light Schedule

Lights

ACTVT MALSR RWY 36; REIL RWY 14 & 32 - CTAF. MIRL RWY 14/32 & RWY 18/36 OPR SS-SR. PAPI RWY 36 OPR CONSLY.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Minor

Pwrplant Repair

Minor

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Air Freight
Crop Dusting
Avionics
Pilot Instruction
Aircraft Rental

Runway 14/32

Dimensions

4401 ft. x 75 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

35,000lbs

Double Wheel

46,000lbs

Double Tandem

Dual Dbl Tand

	Runway 14	Runway 32
True Heading	143°	323°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	40° 18' 18"N	40° 17' 43"N
Longitude	96° 45' 34"W	96° 45' 00"W
Elevation	1,319'	1,312'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

Runway 18/36

Dimensions

5602 ft. x 100 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

35,000lbs

Double Wheel

46,000lbs

Double Tandem

Dual Dbl Tand

	Runway 18	Runway 36
True Heading	180°	360°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	40° 18' 35"N	40° 17' 40"N
Longitude	96° 45' 13"W	96° 45' 13"W
Elevation	1,324'	1,305'
Threshold Crossing Height	--	41 ft. AGL
Visual Glide Path Angle	--	3°
Visual Slope Indicator	--	P2L
Approach Lights		MALSR
Centerline Lights
Runway End Identifier Lights

A110-1	RWY 18 IS DESIGNATED AS THE CALM WIND RWY.
A110-2	400' STOPWAY AT RWY 36 DER.
A110-3	FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.

BEATRICE MUNI (ICAO: KBIE, IATA: BIE) is a public airport located in BEATRICE, NE.
