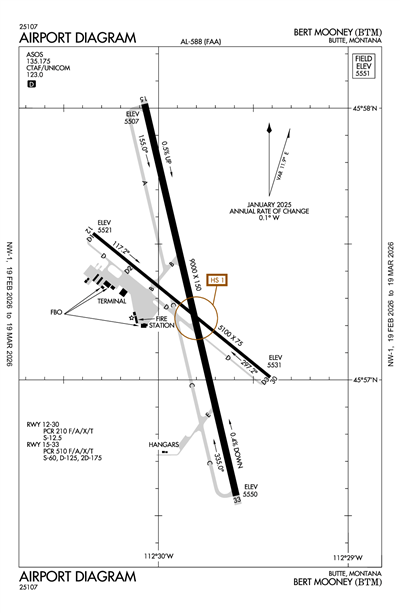

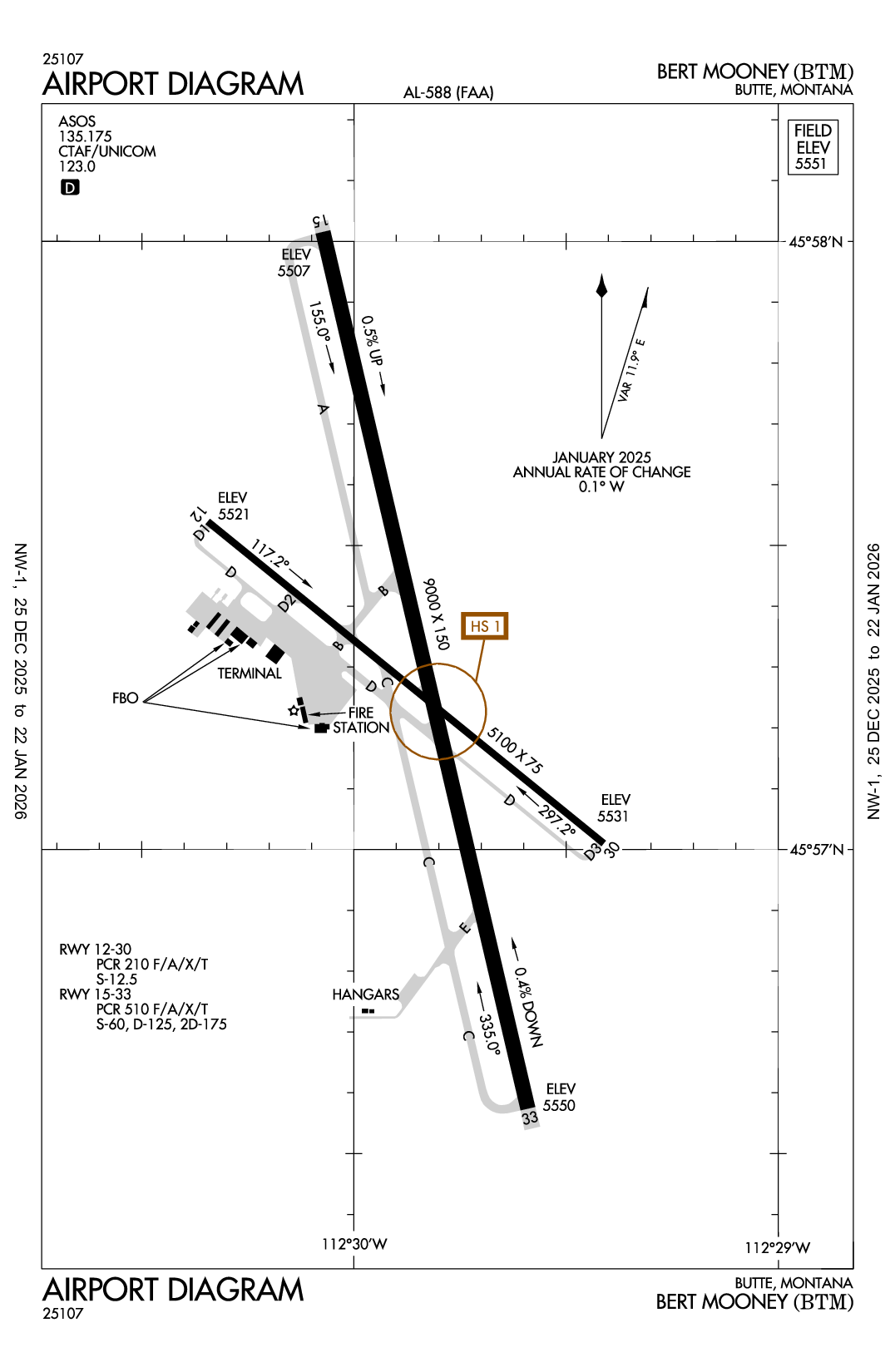

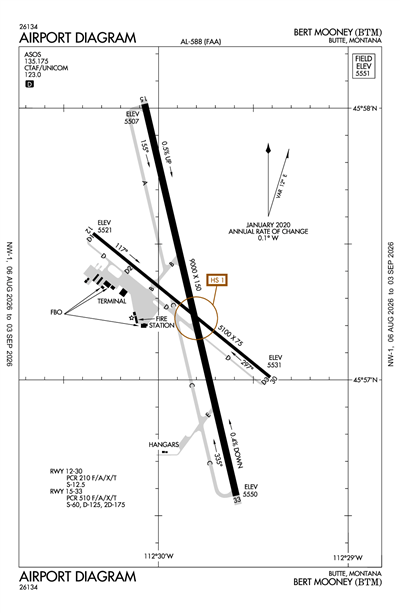

BERT MOONEY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBTM
BERT MOONEY
PublicPUB

3 miles SE of BUTTE, MT
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
45° 57' 17"N 112° 29' 51"W
5550' MSL
6550' MSL
12E
JET A, 100LL, 100
GREAT FALLS (GTF)
GREAT FALLS
SALT LAKE CITY (ZLC)
5/16/24-6/13/24
KBTM VFR
9:53 AM MDT
Clear
10sm
62°F
33°F
30.06"Hg
300° 7kts
AO2 SLP126 T01670006
KBTM 121553Z AUTO 30007KT 10SM CLR 17/01 A3006 RMK AO2 SLP126 T01670006
Add Your Business

KBTM FBOs

Promote Listing
Butte Aviation
UNICOM: 123.0
Phone: (406) 494-6694
No Rating Available
0 Reviews (Read | Sign In To Write)
EPIC
As of 6/11
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.25 5.50 5.50
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
406-494-1870
 135.175

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KBTM
Wed, 6/12 5:20 AM MDT
Wed, 6/12 6:00 AM MDT - Thu, 6/13 6:00 AM MDT
VFR
6:00 AM MDT - 11:00 AM MDT
Sky Clear
6sm
280° 5kts
VFR
11:00 AM MDT - 9:00 PM MDT
Sky Clear
6sm
290° 13kts
Gusts 20kts
VFR
9:00 PM MDT - 6:00 AM MDT
Sky Clear
6sm
330° 11kts
KBTM 121120Z 1212/1312 28005KT P6SM SKC
   FM121700 29013G20KT P6SM SKC
   FM130300 33011KT P6SM SKC
KBTM
Domestic
6/12/241303Z !BTM 06/031 BTM AD AP ALL SFC WIP GRASS CUTTING 2406121303-2406122000
5/23/241120Z !BTM 05/058 BTM AD AP ALL SFC WIP CONST 2405231120-2406302359
No
DAWN-DUSK
BERT MOONEY, ARPT AUTH
101 AIRPORT ROAD
BUTTE, MT 59701
Phone: 406-494-3771
PAM CHAMBERLIN
101 AIRPORT RD
BUTTE, MT 59701
Phone: 406-494-3771
GREAT FALLS FSS (GTF)
Toll Free: 1-800-WX-BRIEF
BTM
--
ACTVT MALSR RWY 15; REIL RWY 12 & 30; PAPI RWY 12 & 30; VASI RWY 33; MIRL RWY 15/33 & 12/30 - CTAF. PAPI RWY 15 OPR CONSLY.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
30
9
0
3
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 12/30

5100 ft. x 75 ft.
ASPH
Good
GRVD
MED
23 /F/A/X/T
12,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 129°309°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 45° 57' 32"N 45° 57' 01"N
Longitude 112° 30' 21"W 112° 29' 25"W
Elevation 5,521' 5,531'
Threshold Crossing Height 41 ft. AGL 47 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 15/33

9000 ft. x 150 ft.
ASPH
Good
GRVD
MED
45 /F/A/X/T
60,000lbs
125,000lbs
175,000lbs
--
  Runway 15 Runway 33
True Heading 167°347°
Traffic Pattern Right Left
Markings PIR BSC
Markings Condition GOOD GOOD
Latitude 45° 58' 01"N 45° 56' 34"N
Longitude 112° 30' 04"W 112° 29' 35"W
Elevation 5,507' 5,550'
Threshold Crossing Height 55 ft. AGL 74 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P4L V2L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights No No
A110-10FOR CD IF UNA TO CTC ON FSS FREQ, CTC SALT LAKE ARTCC AT 801-320-2568.
A110-11TWY D RSTD TO ACFT WITH WINGSPAN LESS THAN 100 FT WO PPR, CALL APMGR 406-494-3771.
A110-3DEER IN VICINITY OF AIRPORT.
A110-7SNOW REMOVAL OPS IN PROGRES DURING PERIODS OF SNOW.
A110-9COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -25C.
BERT MOONEY (ICAO: KBTM, IATA: BTM) is a public airport located in BUTTE, MT.
