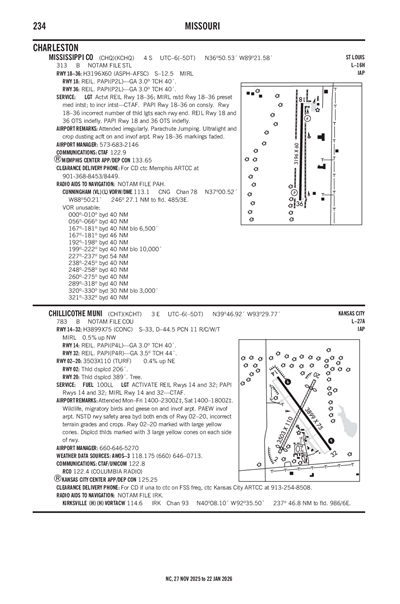

MISSISSIPPI COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCHQ
MISSISSIPPI COUNTY
PublicPUB

4 miles S of CHARLESTON, MO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 50' 32"N 89° 21' 35"W
313' MSL
1313' MSL
02W
None Listed
SAINT LOUIS (STL)
ST LOUIS
MEMPHIS (ZME)
5/16/24-6/13/24
KCIR (15nm) VFR
10:55 PM CDT
Overcast 12,000'
Broken 10,000'
Scattered 4,400'
7sm
69°F
64°F
30.08"Hg
130° 10kts
AO2 P0002 T02050178
KCIR 010355Z AUTO 13010KT 7SM SCT044 BKN100 OVC120 21/18 A3008 RMK AO2 P0002 T02050178
Add Your Business

KCHQ FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCGI (25nm)
Fri, 5/31 9:37 PM CDT
Fri, 5/31 10:00 PM CDT - Sat, 6/1 7:00 PM CDT
VFR
10:00 PM CDT - 11:00 PM CDT
Light Showers and Rain
Broken 8,000'
6sm
110° 9kts
VFR
11:00 PM CDT - 1:00 AM CDT
Light Showers and Rain
Broken 6,000'
Scattered 3,500'
6sm
120° 6kts
MVFR
1:00 AM CDT - 4:00 AM CDT
Light Showers and Rain
Broken 1,500'
5sm
140° 7kts
IFR
4:00 AM CDT - 10:00 AM CDT
Showers and Rain and Mist
Overcast 700'
4sm
140° 10kts
IFR
10:00 AM CDT - 4:00 PM CDT
Light Showers and Rain and Mist
Overcast 800'
5sm
170° 9kts
MVFR
4:00 PM CDT - 7:00 PM CDT
Showers in vicinity
Broken 1,500'
6sm
210° 8kts
KCGI 010237Z 0103/0124 11009KT P6SM -SHRA BKN080
   FM010400 12006KT 6SM -SHRA SCT035 BKN060
   FM010600 14007KT 5SM -SHRA BKN015
   FM010900 14010KT 4SM SHRA BR OVC007
   FM011500 17009KT 5SM -SHRA BR OVC008
   FM012100 21008KT P6SM VCSH BKN015
KCHQ
Domestic
4/4/241835Z !STL 04/129 CHQ RWY 36 RWY END ID LGT U/S 2404041835-2410042111EST
4/4/241834Z !STL 04/128 CHQ RWY 18 RWY END ID LGT U/S 2404041834-2410042111EST
4/4/241832Z !STL 04/127 CHQ RWY 36 PAPI U/S 2404041832-2410042111EST
4/4/241831Z !STL 04/126 CHQ RWY 18 PAPI U/S 2404041831-2410042111EST
No
IREG
MISSISSIPPI COUNTY COMMISSION
PO BOX 369
CHARLESTON, MO 63834
Phone: 573-683-2146
MISSISSIPPI COUNTY COMMISSION
PO BOX 369
CHARLESTON, MO 63834
Phone: 573-683-2146
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
STL
--
ACTVT REIL RWY 18 & 36; MIRL NSTD RWY 18/36 PRESET MED INTST; TO INCR INTST - CTAF. PAPI RWY 18 & 36 ON CONSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Crop Dusting

Runway 18/36

3196 ft. x 60 ft.
ASPH
Good
AFSC
MED

12,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition POOR POOR
Latitude 36° 50' 48"N 36° 50' 16"N
Longitude 89° 21' 35"W 89° 21' 35"W
Elevation 313' 313'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1ULTRALIGHT & CROP DUSTING ACFT ON & INVOF ARPT.
A110-2FOR CD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
MISSISSIPPI COUNTY (ICAO: KCHQ, IATA: CHQ) is a public airport located in CHARLESTON, MO.
