COTULLA-LA SALLE COUNTY - Airport Diagram

KCOT

COTULLA-LA SALLE COUNTY

PublicPUB

1 miles NE of COTULLA, TX

View on Map

Status

Operational

Coordinates

28° 27' 21"N 99° 13' 02"W

Elevation

474' MSL

Pattern Alt

1474' MSL

Mag Variation

06E

Fuel

JET A (FSII), 100LL

FSS

SAN ANGELO (SJT)

Sectional

SAN ANTONIO

ARTCC

HOUSTON (ZHU)

Data Effective

5/16/24-6/13/24

KCOT VFR

9:53 PM CDT RAW

Broken 8,500'

Viz

10sm

Temp

84°F

Dew

68°F

Pres

29.89"Hg

Wind

110° 9kts

RMK

AO2 SLP113 T02890200 51024

KCOT 010253Z AUTO 11009KT 10SM BKN085 29/20 A2989 RMK AO2 SLP113 T02890200 51024

Add Your Business

KCOT FBOs

Page Aviation

UNICOM: 122.7

Phone: (830) 879-3858

Fax: (830) 879-3011

0 Reviews (Read | Sign In To Write)

Avfuel

As of 5/31	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	6.39	5.39	5.39

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.7 CTAF 122.7

ASOS

830-879-2861

118.325

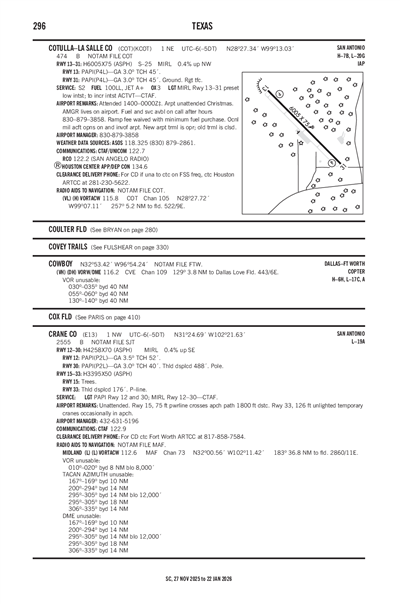

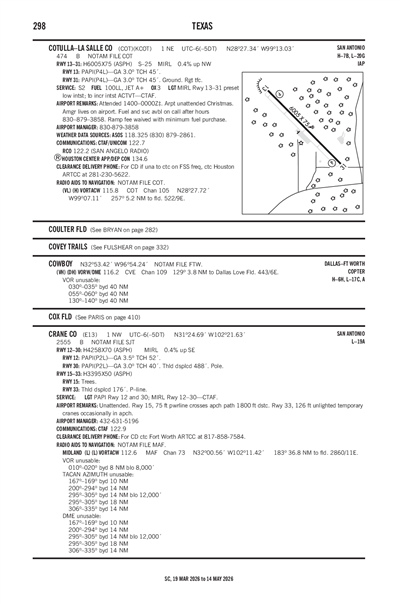

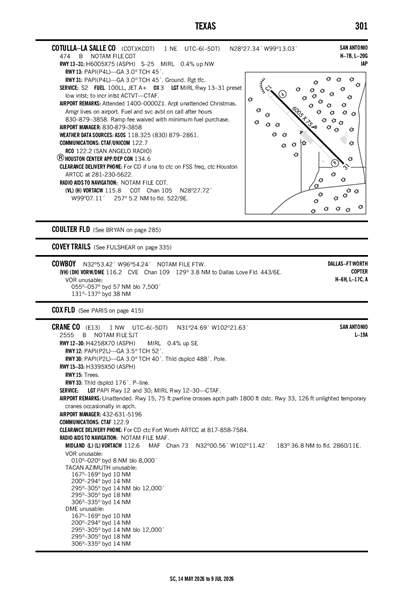

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KCOT

RAW

Reported

Fri, 5/31 9:43 PM CDT

Valid

Fri, 5/31 10:00 PM CDT - Sat, 6/1 7:00 PM CDT

VFR

10:00 PM CDT - 3:00 AM CDT

Overcast 8,000'
Broken 4,000'

Viz

6sm

Wind

120° 10kts

MVFR

3:00 AM CDT - 11:00 AM CDT

Broken 2,000'
Few 1,500'

Viz

6sm

Wind

120° 10kts

VFR

11:00 AM CDT - 7:00 PM CDT

Broken 5,000'
Scattered 2,500'

Viz

6sm

Wind

140° 15kts

Gusts 22kts

KCOT 010243Z 0103/0124 12010KT P6SM BKN040 OVC080
FM010800 12010KT P6SM FEW015 BKN020
FM011600 14015G22KT P6SM SCT025 BKN050

KCOT

Domestic
5/26/242016Z	!COT 05/009 COT OBST TOWER LGT (ASR 1276242) 282702.10N0985724.20W (13.9NM E COT) 657.8FT (299.9FT AGL) U/S 2405262016-2406102016
5/3/241409Z	!COT 05/001 COT OBST TOWER LGT (ASR 1056531) 282340.20N0991523.80W (4.2NM SSW COT) 924.9FT (462.9FT AGL) U/S 2405031409-2408311409
FDC
1/31/231510Z	!FDC 3/8892 COT IAP COTULLA-LA SALLE COUNTY, COTULLA, TX. RNAV (GPS) RWY 13, AMDT 2A... RNAV (GPS) RWY 31, AMDT 2... VOR-A, AMDT 13A... CIRCLING CAT A MDA 940/HAA 466. 2301311510-2501311510EST

ATC Tower

Attendance

0800-1800
ARPT UNATNDD CHRISTMAS.

Owner

CITY OF COTULLA/LA SALLE CO
202 S. MAIN ST.
COTULLA, TX 78014
Phone: 830-879-2367

Manager

E T PAGE III
550 AIRPORT ROAD
COTULLA, TX 78014
Phone: 830-879-3858

FSS

SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF

NOTAM

COT

Light Schedule

Lights

DUSK-DAWN. MIRL RWY 13/31 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Minor

Pwrplant Repair

Minor

Bottled Oxygen

High Pressure

Bulk Oxygen

None

Other Services

None

Runway 13/31

Dimensions

6005 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

25,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 13	Runway 31
True Heading	134°	314°
Traffic Pattern	Left	Right
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	28° 27' 41"N	28° 26' 60"N
Longitude	99° 13' 26"W	99° 12' 38"W
Elevation	474'	451'
Threshold Crossing Height	45 ft. AGL	45 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-1	AMGR LIVES ON ARPT.
A110-2	RENTAL CARS AVBL.
A110-3	OCNL MIL ACFT OPNS ON & INVOF ARPT.
A110-4	FOR CD IF UNA TO CTC ON FSS FREQ, CTC HOUSTON ARTCC AT 281-230-5622.
A110-6	NEW ARPT TRML IS OPR; OLD TRML IS CLSD.

COTULLA-LA SALLE COUNTY (ICAO: KCOT, IATA: COT) is a public airport located in COTULLA, TX.
