DELAND MUNI-SIDNEY H TAYLOR FLD - Airport Diagram

KDED

DELAND MUNI-SIDNEY H TAYLOR FLD

PublicPUB

3 miles NE of DELAND, FL

View on Map

Status

Operational

Coordinates

29° 04' 01"N 81° 17' 01"W

Elevation

79' MSL

Pattern Alt

1079' MSL

Mag Variation

05W

Fuel

JET A, 100LL, UL94

FSS

SAINT PETERSBURG (PIE)

Sectional

JACKSONVILLE

ARTCC

JACKSONVILLE (ZJX)

Data Effective

5/16/24-6/13/24

KDED VFR

11:35 PM EDT RAW

Clear

Viz

10sm

Temp

69°F

Dew

61°F

Pres

30.17"Hg

Wind

Calm

RMK

AO2 T02080160

KDED 010335Z AUTO 00000KT 10SM CLR 21/16 A3017 RMK AO2 T02080160

Add Your Business

KDED FBOs

Deland Aviation

UNICOM: 123.075

Phone: (386) 740-1955

Fax: Deland Aviation

0 Reviews (Read | Sign In To Write)

World Fuel

As of 5/28	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.83
Full Serve	7.08		5.98		8.25

Fuel Notes

Prices include tax

KDED Other Businesses

Promote Listing

Skydive Deland

Phone: (386) 738-3539

0 Reviews (Read | Sign In To Write)

Your Information

Business

UNICOM 123.075 CTAF 123.075

AWOS-3

386-740-5811

119.575

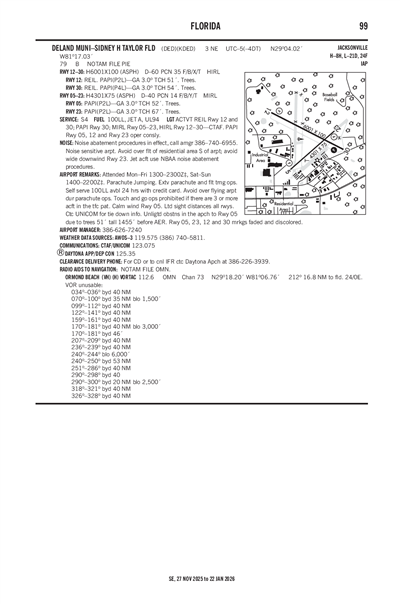

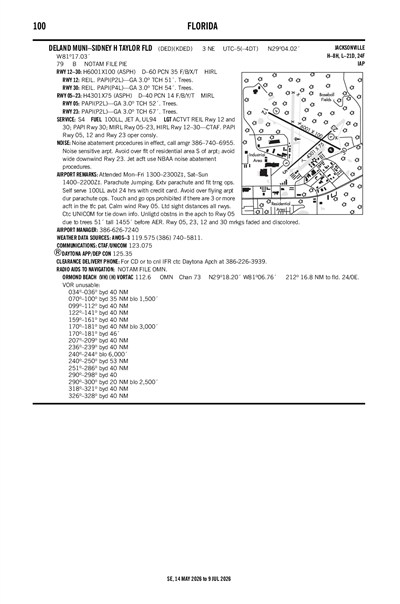

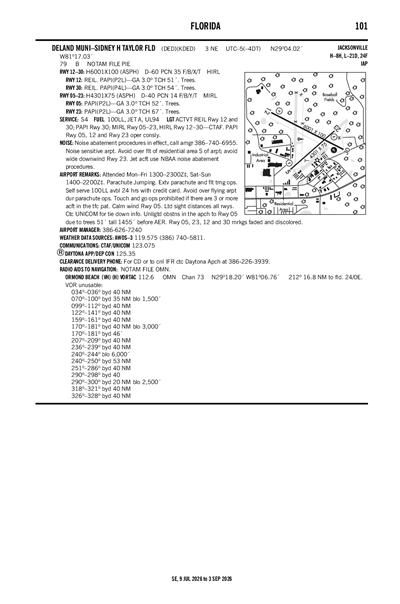

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

TTHOR THREE (RNAV)

Instrument Approach

Terminal Area Forecast

KDAB (13nm)

RAW

Reported

Fri, 5/31 7:20 PM EDT

Valid

Fri, 5/31 8:00 PM EDT - Sat, 6/1 8:00 PM EDT

VFR

8:00 PM EDT - 9:00 PM EDT

Few 4,000'

Viz

6sm

Wind

050° 14kts

Gusts 23kts

VFR

9:00 PM EDT - 10:00 AM EDT

Scattered 25,000'
Few 15,000'

Viz

6sm

Wind

060° 11kts

VFR

10:00 AM EDT - 8:00 PM EDT

Broken 25,000'
Scattered 5,000'

Viz

6sm

Wind

080° 14kts

Gusts 23kts

KDAB 312320Z 0100/0124 05014G23KT P6SM FEW040
FM010100 06011KT P6SM FEW150 SCT250
FM011400 08014G23KT P6SM SCT050 BKN250

KDED

Domestic
5/21/241745Z	!PIE 05/240 DED OBST TOWER LGT (ASR 1019248) 285848.00N0812719.00W (10.6NM WSW DED) 1549.2FT (1499.3FT AGL) U/S 2405211745-2409181745
4/20/241326Z	!PIE 04/173 DED OBST TOWER LGT (ASR 1020781) 285511.10N0811906.60W (9.1NM SSW DED) 1740.2FT (1682.1FT AGL) U/S 2404201326-2406041325
12/7/232335Z	!PIE 12/074 DED RWY 30 PAPI U/S 2312072335-2501032000EST

ATC Tower

Attendance

0800-1800

Owner

CITY OF DELAND
120 S FLORIDA AVE
DELAND, FL 32720
Phone: 386-626-7107

Manager

JOHN EIFF
1000 FLIGHTLINE BLVD
DELAND, FL 32724
Phone: 386-626-7240

FSS

SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF

NOTAM

PIE

Light Schedule

Lights

ACTVT REIL RWY 12 & 30; PAPI RWY 30; MIRL RWY 05/23, HIRL RWY 12/30 - CTAF. PAPI RWY 05, 12, & 23 OPER CONSLY.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

124

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Avionics
Pilot Instruction
Parachute Jump Activity
Aircraft Rental

Runway 05/23

Dimensions

4301 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

14 /F/B/Y/T

Single Wheel

Double Wheel

40,000lbs

Double Tandem

Dual Dbl Tand

	Runway 05	Runway 23
True Heading	48°	228°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	29° 03' 39"N	29° 04' 07"N
Longitude	81° 17' 17"W	81° 16' 41"W
Elevation	78'	68'
Threshold Crossing Height	52 ft. AGL	67 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

Dimensions

6001 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

HIGH

Pavement Class

35 /F/B/X/T

Single Wheel

Double Wheel

60,000lbs

Double Tandem

Dual Dbl Tand

	Runway 12	Runway 30
True Heading	117°	297°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	29° 04' 21"N	29° 03' 54"N
Longitude	81° 17' 33"W	81° 16' 33"W
Elevation	74'	70'
Threshold Crossing Height	51 ft. AGL	54 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-10	UNLIGTD OBSTNS IN THE APCH TO RWY 05 DUE TO TREES 51 FT TALL 1455 FT BFR AER.
A110-2	TOUCH & GO OPNS PROHIBITED IF THERE ARE 3 OR MORE ACFT IN THE TFC PATTERN.
A110-3	NOISE ABATEMENT PROCEDURES IN EFFECT, CALL AMGR (386) 740-6955.
A110-4	EXTSV PARACHUTE & FLT TRNG OPNS. AVOID OVER FLYING ARPT DURG PARACHUTE OPNS.
A110-5	NOISE SENSITIVE ARPT. AVOID OVER FLT OF RESIDENTIAL AREA S OF ARPT; AVOID WIDE DOWNWIND RY 23. JET ACFT USE NBAA NOISE ABATEMENT PROCEDURES.
A110-6	CALM WIND RY 05.
A110-7	LMTD SIGHT DISTANCES ALL RYS.
A110-8	CTC UNICOM FOR TIE DOWN INFO.
A110-9	FOR CD OR TO CNL IFR CTC DAYTONA APCH AT 386-226-3939.

DELAND MUNI-SIDNEY H TAYLOR FLD (ICAO: KDED, IATA: DED) is a public airport located in DELAND, FL.
