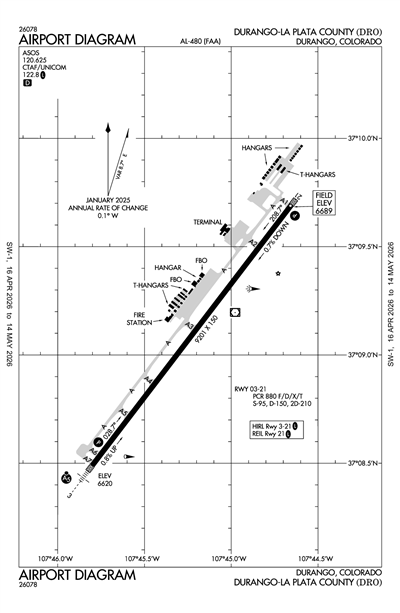

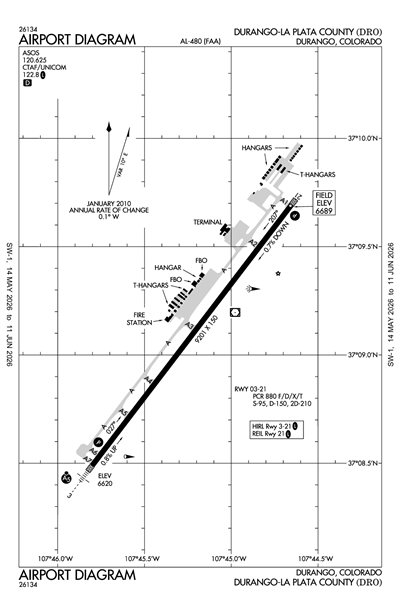

DURANGO-LA PLATA COUNTY - Airport Diagram

KDRO

DURANGO-LA PLATA COUNTY

PublicPUB

10 miles SE of DURANGO, CO

View on Map

Status

Operational

Coordinates

37° 09' 06"N 107° 45' 14"W

Elevation

6689' MSL

Pattern Alt

7689' MSL

Mag Variation

10E

Fuel

JET A, 100LL

FSS

DENVER (DEN)

Sectional

DENVER

ARTCC

DENVER (ZDV)

Data Effective

5/16/24-6/13/24

KDRO VFR

8:53 PM MDT RAW

Clear

Viz

10sm

Temp

68°F

Dew

22°F

Pres

30.07"Hg

Wind

330° 5kts

RMK

AO2 SLP101 T02001056 53003

KDRO 010253Z AUTO 33005KT 10SM CLR 20/M06 A3007 RMK AO2 SLP101 T02001056 53003

Add Your Business

KDRO FBOs

Avflight Durango

UNICOM: 122.8

Phone: (970) 259-7400

Fax: (970) 247-5537

0 Reviews (Read | Sign In To Write)

Avfuel

As of 5/22	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	6.45
Full Serve	7.20	8.93	9.01

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.8 CTAF 122.8

ASOS

970-259-3579

120.625

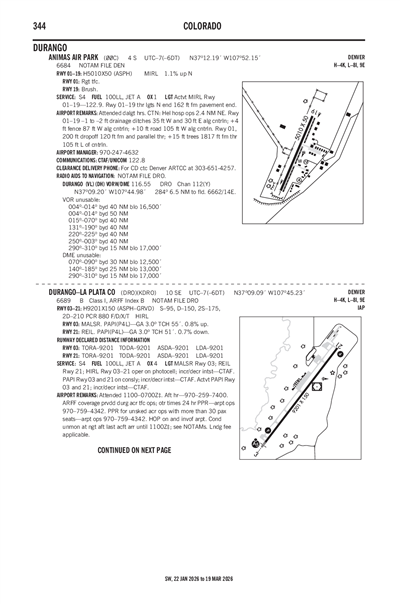

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KDRO

RAW

Reported

Fri, 5/31 5:36 PM MDT

Valid

Fri, 5/31 6:00 PM MDT - Sat, 6/1 6:00 PM MDT

VFR

6:00 PM MDT - 8:00 PM MDT

Scattered 25,000'
Scattered 11,000'

Viz

6sm

Wind

250° 12kts

Gusts 21kts

VFR

8:00 PM MDT - 11:00 PM MDT

Broken 25,000'
Scattered 14,000'

Viz

6sm

Wind

320° 7kts

VFR

11:00 PM MDT - 12:00 PM MDT

Sky Clear

Viz

6sm

Wind

030° 4kts

VFR

12:00 PM MDT - 6:00 PM MDT

Scattered 25,000'
Few 15,000'

Viz

6sm

Wind

220° 8kts

Gusts 15kts

KDRO 312336Z 0100/0124 25012G21KT P6SM SCT110 SCT250
   FM010200 32007KT P6SM SCT140 BKN250
   FM010500 03004KT P6SM SKC
   FM011800 22008G15KT P6SM FEW150 SCT250

KDRO

No NOTAM Available

ATC Tower

Attendance

0400-2400
AFT HR - 970-259-7400.

Owner

DURANGO CITY LA PLATA CO
1000 AIRPORT ROAD BOX 15
DURANGO, CO 81303
Phone: 970-382-6050

Manager

ANTHONY VICARI - DIR OF AVIATION
1000 AIRPORT ROAD BOX 15
DURANGO, CO 81303
Phone: (970) 382-6051

FSS

DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF

NOTAM

DRO

Light Schedule

Lights

MALSR RWY 03; REIL RWY 21; HIRL RWY 03/21 OPER ON PHOTOCELL; INCR/DECR INTST - CTAF. PAPI RWY 03 & 21 ON CONSLY; INCR/DECR INTST - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

Low Pressure

Bulk Oxygen

None

Other Services

Air Freight
Air Ambulance
Charter Service

Runway 03/21

Dimensions

9201 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

59 /F/C/X/T

Single Wheel

95,000lbs

Double Wheel

150,000lbs

Double Tandem

210,000lbs

Dual Dbl Tand

	Runway 03	Runway 21
True Heading	37°	217°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	37° 08' 29"N	37° 09' 42"N
Longitude	107° 45' 48"W	107° 44' 39"W
Elevation	6,620'	6,689'
Threshold Crossing Height	55 ft. AGL	51 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights	MALSR
Centerline Lights
Runway End Identifier Lights		Yes

A110-1	COND UNMNT AT NGT AFT LAST ACR ARR UNTIL 0400; SEE NOTAMS.
A110-3	ARFF COVERAGE PRVDD DURG ACR TFC OPS; OTR TIMES 24 HR PPR - ARPT OPS 970-759-4342.
A110-4	HOP ON & INVOF ARPT.
A110-5	FOR CD CTC DENVER ARTCC ON FREQ. IF UNA, CTC FSS ON FREQ VIA RCO. IF UNA, CTC DENVER ARTCC AT 303-651-4257.

DURANGO-LA PLATA COUNTY (ICAO: KDRO, IATA: DRO) is a public airport located in DURANGO, CO.
