iFlightPlanner



...

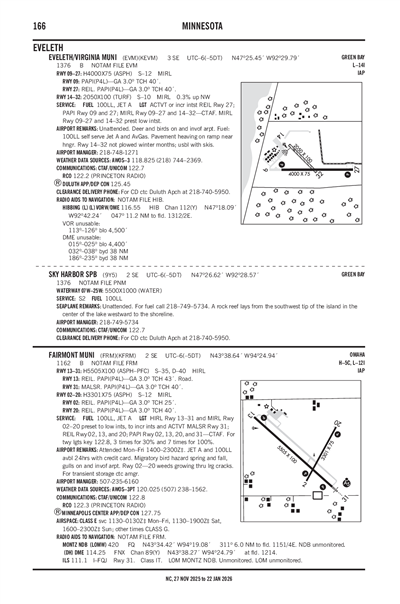

FAIRMONT MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFRM
FAIRMONT MUNI
PublicPUB

2 miles SE of FAIRMONT, MN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
43° 38' 38"N 94° 24' 56"W
1162' MSL
2162' MSL
04E
JET A, 100LL
PRINCETON (PNM)
OMAHA
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KFRM VFR
10:56 PM CDT
Light Rain
Overcast 9,000'
Broken 5,000'
Few 300'
10sm
62°F
61°F
30.04"Hg
100° 6kts
AO2 SLP174 P0001 T01670161
KFRM 010356Z AUTO 10006KT 10SM -RA FEW003 BKN050 OVC090 17/16 A3004 RMK AO2 SLP174 P0001 T01670161
Add Your Business

KFRM FBOs

Promote Listing
Fairmont Municipal Airport
UNICOM: 122.8
Phone: (507) 235-6160
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/21
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.00 6.00
Full Serve 6.00
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
507-238-1562
 120.025

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMKT (41nm)
Fri, 5/31 6:20 PM CDT
Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT
VFR
7:00 PM CDT - 10:00 PM CDT
Light Thunderstorm and Rain
Overcast 7,000'
6sm
260° 4kts
VFR
10:00 PM CDT - 6:00 AM CDT
Light Showers and Rain
Overcast 5,000'
6sm
140° 5kts
MVFR
6:00 AM CDT - 10:00 AM CDT
Mist
Overcast 1,500'
4sm
180° 5kts
MVFR
10:00 AM CDT - 12:00 PM CDT
Broken 1,500'
6sm
250° 5kts
VFR
12:00 PM CDT - 7:00 PM CDT
Scattered 2,200'
6sm
300° 6kts
KMKT 312320Z 0100/0124 26004KT 6SM -TSRA OVC070CB
   FM010300 14005KT 6SM -SHRA OVC050
   FM011100 18005KT 4SM BR OVC015
   FM011500 25005KT P6SM BKN015
   FM011700 30006KT P6SM SCT022
KFRM
Domestic
5/16/242135Z !FRM 05/009 FRM OBST TOWER LGT (ASR 1023796) 434205.00N0943934.00W (11.1NM WNW FRM) 1690.3FT (490.2FT AGL) U/S 2405162135-2409132135
No
MON-FRI 0800-1700
CITY OF FAIRMONT
100 DOWNTOWN PLAZA, PO BOX 751
FAIRMONT, MN 56031
Phone: 507-238-9461
LEE STEINKAMP
2159 EAST BLUE EARTH AVE
FAIRMONT, MN 56031
Phone: 507-235-6160
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
FRM
--
HIRL RY 13/31 AND MIRL RY 02/20 PRESET TO LOW INTS, TO INCR INTS AND ACTVT MALSR RY 31; REIL RY 13, RY 02, & RY 20; PAPI RY 13, RY 31, RY 02, & RY 20 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
31
1
1
0
0
0
None
None
None
None
Crop Dusting
Aircraft Sales

Runway 02/20

3300 ft. x 75 ft.
ASPH
Fair
NONE
MED

12,000lbs
--
--
--
  Runway 02 Runway 20
True Heading 28°208°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 43° 38' 23"N 43° 38' 52"N
Longitude 94° 24' 55"W 94° 24' 33"W
Elevation 1,159' 1,158'
Threshold Crossing Height 25 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 13/31

5503 ft. x 100 ft.
ASPH
Good
PFC
HIGH

35,000lbs
40,000lbs
--
--
  Runway 13 Runway 31
True Heading 134°314°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 43° 38' 58"N 43° 38' 20"N
Longitude 94° 25' 30"W 94° 24' 37"W
Elevation 1,158' 1,160'
Threshold Crossing Height 43 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-1MIGRATORY BIRD HAZARD SPRING & FALL; GULLS ON & INVOF ARPT.
A110-2FOR TWY LGTS KEY 122.8 3 TIMES FOR 30% AND 7 TIMES FOR 100%.
A110-3FOR TRANSIENT STORAGE CONTACT AIRPORT MANAGER
FAIRMONT MUNI (ICAO: KFRM, IATA: FRM) is a public airport located in FAIRMONT, MN.
