iFlightPlanner



...

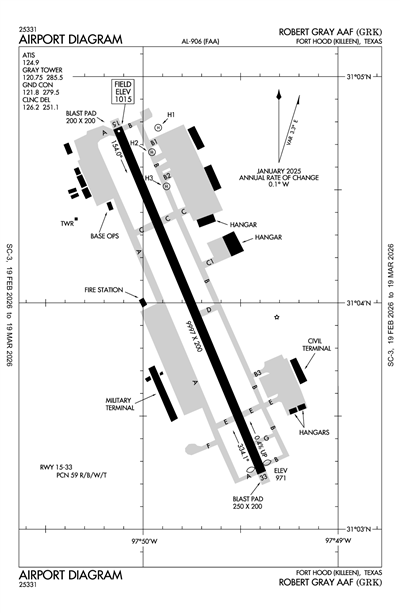

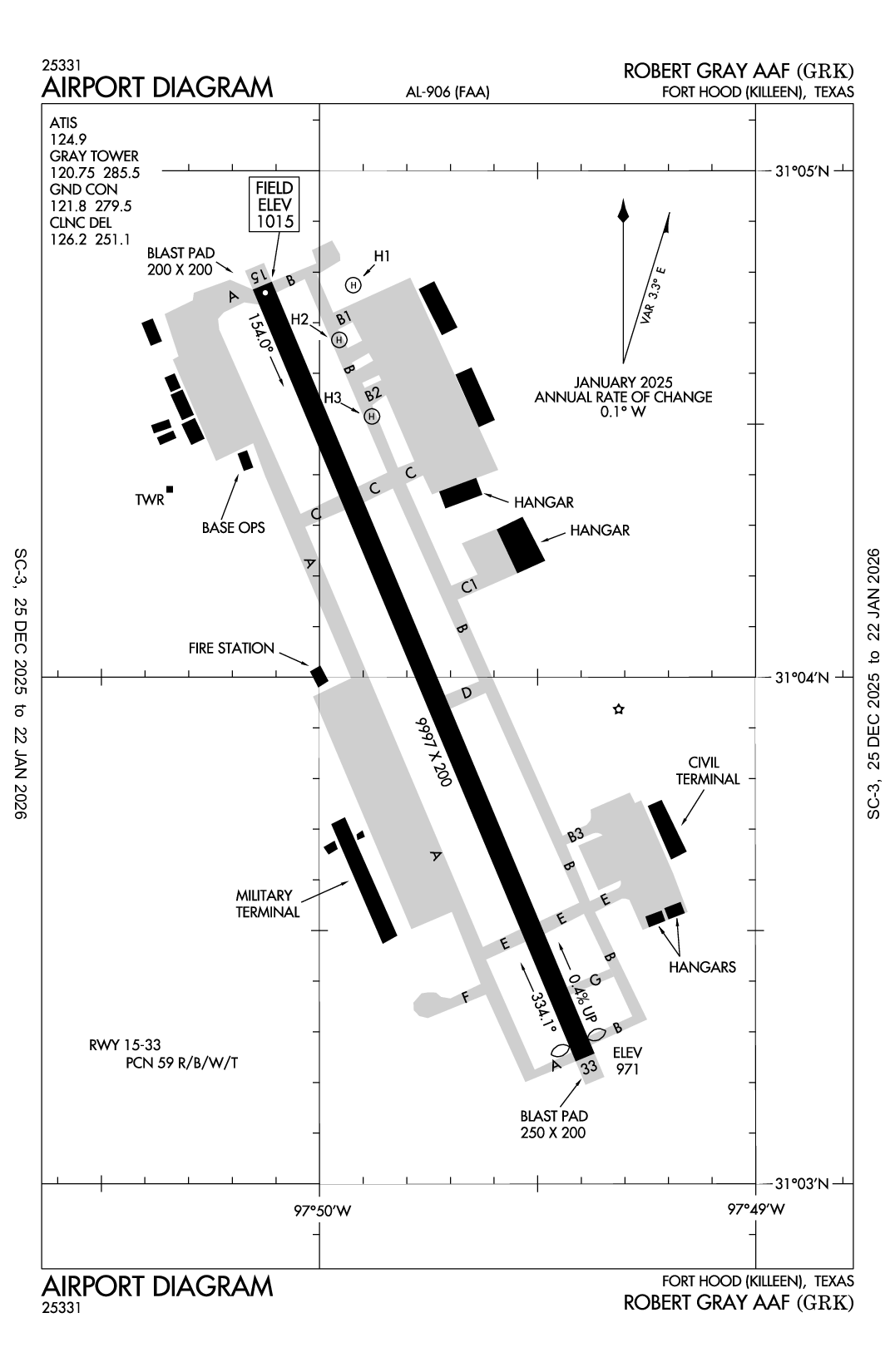

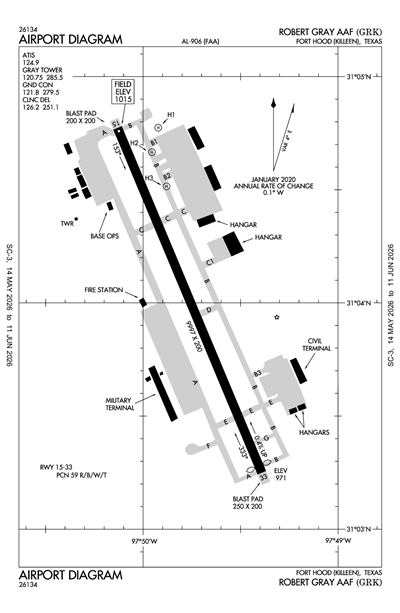

ROBERT GRAY AAF - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGRK
ROBERT GRAY AAF
PublicPUB

6 miles SW of FORT CAVAZOS (KILLEEN), TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
31° 04' 02"N 97° 49' 44"W
1015' MSL
2015' MSL
04E
JET A
SAN ANGELO (SJT)
SAN ANTONIO
HOUSTON (ZHU)
5/16/24-6/13/24
KGRK VFR
2:55 PM CDT
Overcast 9,000'
10sm
83°F
74°F
29.97"Hg
040° 4kts
AO2 SLP137 T02810232
KGRK 121955Z AUTO 04004KT 10SM OVC090 28/23 A2997 RMK AO2 SLP137 T02810232
Add Your Business

KGRK FBOs

Promote Listing
Killeen Regional Airport
UNICOM: 122.825
Phone: (254) 501-6100
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 6/11
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.35
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 120.75

ATIS

ATIS
 124.9

Approach/Departure

APCH/P DEP/P
 120.075

Clearance Delivery

CD/P
 126.2

Emergency

EMERG
 121.5

Ground

GND/P
 121.8

Tower

LCL/P
 120.75

Other

FLT FLW
 141.175
PMSV METRO
 41.2
PTD
 125.05
RANGE CTL
 30.45
RANGE CTL
FM
 38.3

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KGRK
Wed, 6/12 11:00 AM CDT
Wed, 6/12 11:00 AM CDT - Thu, 6/13 5:00 PM CDT
MVFR
11:00 AM CDT - 1:00 PM CDT
Overcast 6,000'
Broken 2,000'
6sm
30.00"Hg
120° 9kts
IFR
Temporary 11:00 AM CDT - 1:00 PM CDT
Light Showers and Rain
Overcast 1,200'
Scattered 600'
2.98sm
Calm
VFR
Becoming 1:00 PM CDT - 4:00 AM CDT
Broken 4,500'
Scattered 3,000'
6sm
29.94"Hg
120° 9kts
IFR
Becoming 4:00 AM CDT - 10:00 AM CDT
Mist
Overcast 1,200'
1.99sm
29.94"Hg
150° 6kts
VFR
Becoming 10:00 AM CDT - 5:00 PM CDT
Broken 4,000'
Scattered 2,500'
6sm
29.91"Hg
130° 9kts
TAF KGRK 121600Z 1216/1322 12009KT 9999 BKN020 OVC060 QNH2999INS
   TEMPO 1216/1218 4800 -SHRA SCT006 OVC012
   BECMG 1218/1219 12009KT 9999 SCT030 BKN045 QNH2993INS
   BECMG 1309/1310 15006KT 3200 BR OVC012 QNH2993INS
   BECMG 1315/1316 13009KT 9999 NSW SCT025 BKN040 QNH2992INS TX29/1221Z TN22/1312Z
KGRK
Domestic
6/13/241030Z !GRK 06/014 GRK AIRSPACE UAS WI AN AREA DEFINED AS 0.5NM RADIUS OF
304752.10N0974451.30W (7.9NM NNW GTU) SFC-400FT AGL
2406131030-2406131200
6/12/241810Z !GRK 06/013 GRK OBST TOWER LGT (ASR 1052283) 310613.00N0974742.00W (2.8NM NE GRK) 1185.0FT (200.1FT AGL) U/S 2406121810-2407271809
6/12/241100Z !GRK 06/012 GRK TWY E HLDG PSN MARKINGS BTN RWY 15/33 AND TWY B NOT STD 2406121100-2406192300
6/11/241530Z !GRK 06/005 GRK AD AIRSPACE UAS WI AN AREA DEFINED AS 5NM RADIUS OF GRK SFC-2500FT AGL DLY 1530-2230 2406111530-2406132230
5/30/241545Z !GRK 05/041 GRK TWY D HLDG PSN MARKINGS NOT STD 2405301545-2406212359
5/17/240152Z !GRK 05/022 GRK OBST TOWER LGT (ASR 1001687) 305315.60N0975606.40W (12.1NM SSW GRK) 1439.6FT (319.9FT AGL) U/S 2405170152-2409140152
5/8/240500Z !GRK 05/011 GRK NAV ILS RWY 33 NOT MNT DLY 0500-1300 2405080500-2407021300
5/8/240500Z !GRK 05/010 GRK NAV ILS RWY 15 NOT MNT DLY 0500-1300 2405080500-2407021300
4/23/241701Z !GRK 04/034 GRK APRON SOUTH RAMP S 545FT CLSD EQPT NOT
BARRICADED 2404231701-2407122359
4/16/240005Z !GRK 04/020 GRK OBST TOWER LGT (ASR 1271380) 305210.30N0974811.60W (11.9NM S GRK) 1344.8FT (299.9FT AGL) U/S 2404160005-2406160500
1/23/241613Z !GRK 01/020 GRK APRON CIV RAMP SW 1000FT CLSD 2401231613-2501012359
FDC
5/13/241200Z !FDC 4/2815 GRK SID ROBERT GRAY AAF, FORT CAVAZOS (KILLEEN), TX.
LAMPS EIGHT DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AGJ VORTAC OUT OF SERVICE. 2405131200-2407112100EST
5/13/241200Z !FDC 4/2814 GRK IAP ROBERT GRAY AAF, FORT CAVAZOS (KILLEEN), TX.
ILS OR LOC RWY 15, AMDT 7B...
MISSED APPROACH: CLIMB TO 2000 THEN CLIMBING LEFT TURN TO 3500 ON GRK VOR/DME R-103 TO REDDA INT/CWK VORTAC 32.15 DME AND HOLD,
AGJ VORTAC OUT OF SERVICE. 2405131200-2407112100EST
5/13/241200Z !FDC 4/2809 GRK IAP ROBERT GRAY AAF, FORT CAVAZOS (KILLEEN), TX.
ILS OR LOC RWY 33, AMDT 1E...
MISSED APPROACH: CLIMB TO 1700 THEN CLIMBING RIGHT TURN TO 3500 ON HEADING 150 AND GRK VOR/DME R-103 TO REDDA INT/CWK 32.15 DME AND HOLD,
AGJ VORTAC OUT OF SERVICE. 2405131200-2407112100EST
5/13/241200Z !FDC 4/2808 GRK IAP ROBERT GRAY AAF, FORT CAVAZOS (KILLEEN), TX.
VOR RWY 15, AMDT 3D...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AGJ VORTAC OUT OF SERVICE. 2405131200-2407112100EST
12/1/231630Z !FDC 3/9664 GRK IAP ROBERT GRAY AAF, FORT CAVAZOS (KILLEEN), TX.
ILS OR LOC RWY 15, AMDT 7B...
RNAV (GPS) RWY 15, AMDT 2B...
VOR RWY 15, AMDT 3D...
DISREGARD DEPICTION OF HOOD MOA..
2312011630-2512011630EST
11/30/231416Z !FDC 3/8575 GRK IAP ROBERT GRAY AAF, FORT CAVAZOS (KILLEEN), TX.
ILS OR LOC RWY 33, AMDT 1E...
AUTOPILOT COUPLED APPROACH NA BELOW 1200 MSL.
2311301416-2511301415EST
Military
6/18/241330Z MISSION ESSENTIAL ACFT ONLY. NO PRACTICE APPROACHES
6/11/241943Z M0413/24 NOTAMC M0412/24
5/30/241852Z !KGRK M0365/24 GRK SVC FUEL NOT AVBL WIDEBODY ACFT HYDRANT SYSTEM OTS. 2405301852-2408281400
4/26/241736Z AERODROME NO RON OR EXTENDED STAY ON SOUTH RAMP
3/28/242118Z GRK APPROACH WX RADAR OTS
Yes
ALL
US ARMY AERONAUTICAL SVCS AGENCY

FT BELVOIR, VA 22060
MICHAEL WILSON
8101 S CLEAR CREEK RD, BOX C
KILLEEN, TX 76549
Phone: 254-501-8701
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
GRK
Sunset to Sunrise
--
N/A
Yes
No
No
None
NoNOT an Airport of Entry
0
1
6
0
40
0
None
None
None
None
None

Runway 15/33

9997 ft. x 200 ft.
ASPH CONC
Excellent
NONE
HIGH
59 /R/B/W/T
--
--
--
--
  Runway 15 Runway 33
True Heading 157°337°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 31° 04' 48"N 31° 03' 16"N
Longitude 97° 50' 06"W 97° 49' 22"W
Elevation 1,015' 971'
Threshold Crossing Height 53 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSR
Centerline Lights
Runway End Identifier Lights
A110-10TFC PAT: TFC PAT ALT LEFT AND RGT. ROTARY WING 1500 FT, UAS 2000 FT WEST TFC ONLY, FIXED WING 2500 FT, PURE JET/OVERHEAD 3000 FT.
A110-11MISC: CLSD CIRCUIT TV OPR.
A110-12MIL-MISC: ALL INBD PPR ACFT CTC PTD 20 MIN PRIOR TO LDG. BASE OPS FAX DSN 738-1930, C254-288-1930.
A110-14CIV: PPR ALL CIVIL ACFT CTC AMGR.
A110-15MIL-RSTD: PPR MIL RAMP DSN 738-9200/9209, C254-288-9200/9209, CIV RAMP (KFHRA) C254-501-8750.
A110-17RSTD: TWY B FR TWY C TO E RSTD TO ACFT WITH WINGSPAN 200' OR LESS.
A110-18MIL-MISC: PAR NOT AVBL (EXC EMERGENCY) FROM 0500-1300Z++.
A110-19MIL-MISC: BASE OPS APVL FOR RAMP ACCESS.
A110-2CAUTION: EXTV COPTER OPR VCNTY FORT CAVAZOS, SOME WO CONSPICUOUS MRK AND BLEND WITH TERRAIN.
A110-20MIL-CSTMS/AG/IMG: CSTMS AVBL 72 HR PN RQR. DUR NML DUTY HR CTC PMO CSTMS DSN 737-3535/3508, C254-287-3535/3508, OT CTC BASE OPS DSN 738-9200, C254-288-9200.
A110-21CAUTION: EXTV COPTER SOD OPS.
A110-22MIL-CSTMS/AG/IMG: USDA AG INSPECTION NOT AVBL.
A110-23MIL-RSTD: TWY B FROM TWY C TO AER 15 RSTD TO ACFT WITH AN ACN OF 24 OR LESS.
A110-24MIL-MISC: 24 HR NOTICE RQR FOR LAV AND WATER SVC.
A110-25MIL: BASE OPS FX DSN 738-1930, COM 254-288-1930.
A110-26CIV: ARPT UNICOM FREQ 122.825 (KILLEEN RADIO).
A110-27MIL-MISC: SPACE A PAX OPS PROHIBITED, INBOUND AND OUTBOUND.
A110-28MIL-MISC: NO OFF AFLD TRANSIENT AIRCREW TRANSPORTATION AVBL.
A110-29MIL-MISC: 50 FT FUEL SERVICE SAFETY ZONE ENFORCED DURING ALL REFUEL OPS.
A110-3MIL-MISC: LTD PRK.
A110-30RSTD: TWY D AND TWY B FR C TO APCH END RWY 33 NOT AUTH FOR DOD ACFT RQR CLASS B RWY.
A110-31CAUTION: EXTV UAS ACFT WITHIN CLASS D AIRSPACE AND BTN CLASS D AIRSPACE AND R6302.
A110-32TFC PAT: UAS 2000' (WEST TFC ONLY).
A110-33MISC - 50' FUEL SVC SAFETY ZONE ENFORCED DURING ALL REFUEL OPS. SPACE A PAX OPS PROH, INBD AND OUTBD. NO OFF AFLD TRAN AIRCREW TRANSPORTATION AVBL. WIDE BODY ACFT 180 DEG TURNS PROH ON RWY 15/33. WIDE BODY ACFT MOVEMENT ON THE SOUTH RAMP AUTH ONLY UNDER CONTROL OF FOLLOW-ME AND GROUND MARSHAL PERS.
A110-34WIDE BODY ACFT 180 DEG TURNS ALLOWED ONLY ON CONC AREAS AT EACH EOR 15/33. WIDE BODY AIRCRAFT MOVEMENT ON THE SOUTH RAMP AUTHORIZED ONLY UNDER CONTROL OF FOLLOW-ME AND GROUND MARSHAL PERSONNEL.
A110-35WATER TOWER 1182 FT E SIDE OF AIRFIELD.
A110-36MIL-MISC: NO DE-ICE CAPABILITY.
A110-5MISC: WX VIS OBST RSTD S THRU NW.
A110-7BEARING STRENGTH RWY 15/33: ST175 SBTT593 TRT840 TRT585.
A110-8MIL-JASU: 1(AM32-95) LASS 1(TUG TMD-250) 1(ESSEX B809).
A110-9MIL-FUEL: A++ PPR ONLY.
ROBERT GRAY AAF (ICAO: KGRK, IATA: GRK) is a public airport located in FORT CAVAZOS (KILLEEN), TX.
