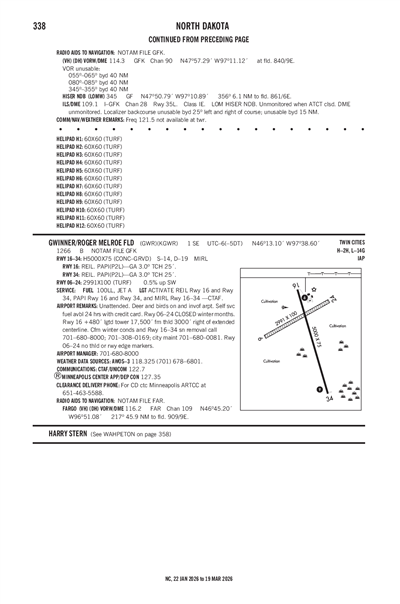

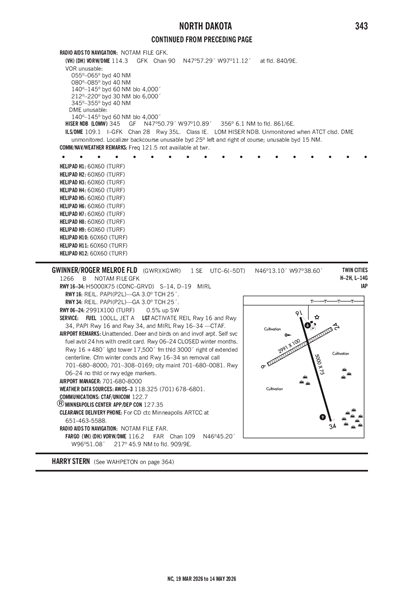

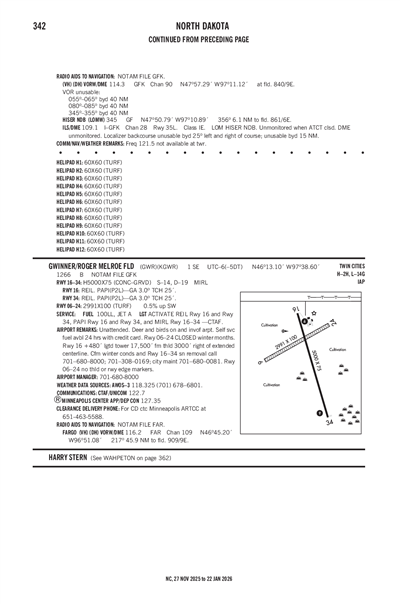

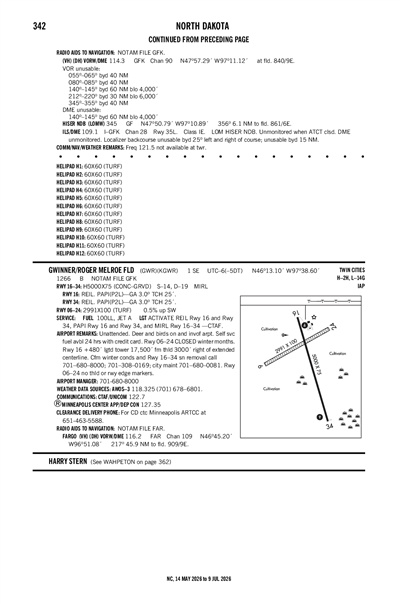

GWINNER-ROGER MELROE FLD - Airport Diagram

KGWR

GWINNER-ROGER MELROE FLD

PublicPUB

1 miles SE of GWINNER, ND

View on Map

Status

Operational

Coordinates

46° 13' 06"N 97° 38' 36"W

Elevation

1266' MSL

Pattern Alt

2266' MSL

Mag Variation

04E

Fuel

JET A, 100LL

FSS

GRAND FORKS (GFK)

Sectional

TWIN CITIES

ARTCC

MINNEAPOLIS (ZMP)

Data Effective

5/16/24-6/13/24

KGWR VFR

9:35 PM CDT RAW

Overcast 10,000'

Viz

10sm

Temp

61°F

Dew

54°F

Pres

30.00"Hg

Wind

200° 10kts

RMK

A01

KGWR 010235Z AUTO 20010KT 10SM OVC100 16/12 A3000 RMK A01

Add Your Business

KGWR FBOs

Promote Listing

Hoistad Flying Service

UNICOM: 122.7

Phone: (701) 724-3068

0 Reviews (Read | Sign In To Write)

Independent

As of 5/15	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	6.00	6.00
Full Serve

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.7 CTAF 122.7

AWOS-3

701-678-6801

118.325

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KFAR (55nm)

RAW

Reported

Fri, 5/31 6:20 PM CDT

Valid

Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT

VFR

7:00 PM CDT - 10:00 PM CDT

Broken 12,000'

Viz

6sm

Wind

260° 6kts

VFR

10:00 PM CDT - 9:00 AM CDT

Scattered 12,000'

Viz

6sm

Wind

190° 7kts

VFR

9:00 AM CDT - 6:00 PM CDT

Few 15,000'

Viz

6sm

Wind

270° 9kts

VFR

6:00 PM CDT - 7:00 PM CDT

Sky Clear

Viz

6sm

Wind

280° 6kts

KFAR 312320Z 0100/0124 26006KT P6SM BKN120
   FM010300 19007KT P6SM SCT120
   FM011400 27009KT P6SM FEW150
   FM012300 28006KT P6SM SKC

KGWR

Domestic
6/1/240116Z	!GFK 06/002 GWR TWY A CLSD 2406010116-2406142359

ATC Tower

Attendance

UNATNDD

Owner

GWINNER ARPT AUTH
400 4TH AVE SE
GWINNER, ND 58040
Phone: 701-680-8000

Manager

RICK HOISTAD
BOX 221
FORMAN, ND 58032
Phone: 701-680-8000

FSS

GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF

NOTAM

GFK

Light Schedule

Lights

ACTVT REIL RY 16/34; PAPI RY 16/34 AND MIRL RY 16/34 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Crop Dusting
Pilot Instruction

Runway 06/24

Dimensions

2991 ft. x 100 ft.

Surface Type

TURF

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 06	Runway 24
True Heading	61°	241°
Traffic Pattern	Left	Left
Markings
Markings Condition
Latitude	46° 13' 07"N	46° 13' 21"N
Longitude	97° 39' 02"W	97° 38' 25"W
Elevation	1,265'	1,249'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 16/34

Dimensions

5000 ft. x 75 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

14,000lbs

Double Wheel

19,000lbs

Double Tandem

Dual Dbl Tand

	Runway 16	Runway 34
True Heading	164°	344°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	46° 13' 25"N	46° 12' 37"N
Longitude	97° 38' 41"W	97° 38' 22"W
Elevation	1,255'	1,255'
Threshold Crossing Height	25 ft. AGL	25 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-1	RY 06/24 CLSD WINTER MONTHS.
A110-5	CFM WINTER CONDS & RWY 16/34 SN REMOVAL CALL 701-680-8000; 701-308-0169;CITY MAINT 701-680-0081.
A110-6	RY 16 +480 FT LGTD TOWER 17500 FT FM THLD 3000 FT R OF EXTDD CNTRLN.
A110-7	DEER & BIRDS ON & INVOF ARPT.
A110-8	FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.

GWINNER-ROGER MELROE FLD (ICAO: KGWR, IATA: GWR) is a public airport located in GWINNER, ND.
