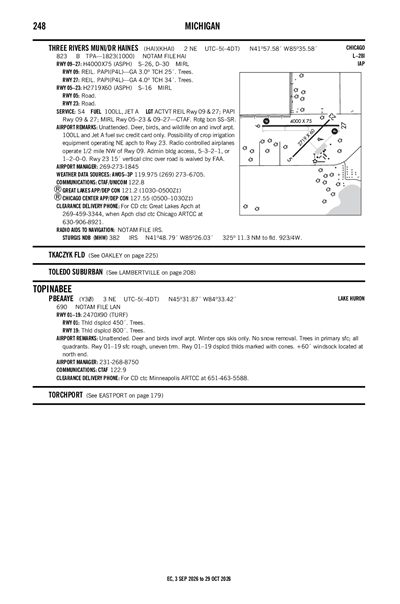

THREE RIVERS MUNI/DR HAINES - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHAI
THREE RIVERS MUNI/DR HAINES
PublicPUB

2 miles NE of THREE RIVERS, MI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 57' 35"N 85° 35' 35"W
823' MSL
1823' MSL
04W
JET A, 100LL
LANSING (LAN)
CHICAGO
CHICAGO (ZAU)
5/16/24-6/13/24
KHAI VFR
11:35 PM EDT
Clear
10sm
56°F
49°F
30.18"Hg
080° 3kts
AO2 T01340095
KHAI 010335Z AUTO 08003KT 10SM CLR 13/10 A3018 RMK AO2 T01340095
Add Your Business

KHAI FBOs

Promote Listing
Three Rivers Municipal Airport
UNICOM: 122.8
Phone: (269) 273-1845
No Rating Available
0 Reviews (Read | Sign In To Write)
EPIC
As of 5/24
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.70 5.20
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
269-273-6705
 119.975

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KAZO (16nm)
Fri, 5/31 7:26 PM EDT
Fri, 5/31 8:00 PM EDT - Sat, 6/1 8:00 PM EDT
VFR
8:00 PM EDT - 10:00 AM EDT
Broken 25,000'
6sm
150° 5kts
VFR
10:00 AM EDT - 4:00 PM EDT
Broken 15,000'
6sm
170° 8kts
VFR
4:00 PM EDT - 8:00 PM EDT
Light Rain
Overcast 6,000'
6sm
150° 6kts
KAZO 312326Z 0100/0124 15005KT P6SM BKN250
   FM011400 17008KT P6SM BKN150
   FM012000 15006KT P6SM -RA OVC060
KHAI
Domestic
5/28/241226Z !LAN 05/473 HAI OBST TOWER LGT (ASR 1033151) 420108.00N0851950.00W (12.2NM ENE HAI) 1394.0FT (500.0FT AGL) U/S 2405281226-2406112359EST
5/26/241912Z !LAN 05/444 HAI OBST TOWER LGT (ASR 1225058) 415921.00N0853933.40W (3.4NM WNW HAI) 1075.1FT (246.1FT AGL) U/S 2405261912-2409231912
5/21/241437Z !LAN 05/358 HAI OBST TOWER LGT (ASR 1302258) 415354.60N0854736.50W (9.68NM WSW HAI) 1199FT (266FT AGL) U/S 2405211437-2406212359
5/10/241505Z !LAN 05/165 HAI OBST TOWER LGT (ASR 1209331) 415427.90N0854648.20W (8.9NM WSW HAI) 1200.8FT (259.8FT AGL) U/S 2405101505-2408080400
4/30/241523Z !LAN 04/496 HAI RWY 09 RWY END ID LGT U/S 2404301523-2410302111EST
4/30/241522Z !LAN 04/495 HAI RWY 09 PAPI U/S 2404301522-2410302111EST
4/8/241635Z !LAN 04/141 HAI OBST TOWER LGT (ASR UNKNOWN) 415540.56N0853955.01W (3.6NM SW HAI) 1055FT (202FT AGL) U/S 2404081635-2407072359
3/7/241751Z !LAN 03/103 HAI OBST TOWER LGT (ASR 1225634) 420347.30N0853856.30W (6.7NM NNW HAI) 1118.1FT (265.1FT AGL) U/S 2403071751-2406060500
FDC
9/28/221957Z !FDC 2/5314 HAI IAP THREE RIVERS MUNI DR HAINES, THREE RIVERS, MI.
RNAV (GPS) RWY 27, ORIG-C...
SD FIX 1.5 NM TO RW27 MINIMUM ALTITUDE 1340.
CIRCLING CAT A HAA 497, CAT B HAA 597, CAT C HAA 737.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE SOUTH BEND ALTIMETER SETTING AND INCREASE ALL MDAS 100 FEET AND LNAV VISIBILITY CAT C 3/8 SM AND CIRCLING VISIBILITY CAT C 1/2 SM.
2209281957-2409281955EST
No
UNATNDD
CITY OF THREE RIVERS
MUNICIPAL BLDG, 333 W MICHIGAN AVE
THREE RIVERS, MI 49093-2193
Phone: 269-273-1075
MARK GLESSNER
333 W MICHIGAN AVE
THREE RIVERS, MI 49093-2193
Phone: 269-273-1845
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
LAN
--
ACTVT REIL RWY 09 & 27; PAPI RWY 09 & 27; MIRL RWY 05/23 & 09/27 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
34
3
0
0
0
0
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 05/23

2719 ft. x 60 ft.
ASPH
Fair
NONE
MED

16,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 45°225°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 57' 22"N 41° 57' 41"N
Longitude 85° 35' 43"W 85° 35' 18"W
Elevation 822' 821'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 09/27

4000 ft. x 75 ft.
ASPH
Good
NONE
MED

26,000lbs
30,000lbs
--
--
  Runway 09 Runway 27
True Heading 90°270°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 57' 38"N 41° 57' 38"N
Longitude 85° 36' 04"W 85° 35' 11"W
Elevation 820' 822'
Threshold Crossing Height 25 ft. AGL 34 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-10ADMIN BLDG ACCESS, 5-3-2-1, OR 1-2-0-0.
A110-12FOR CD CTC GREAT LAKES APCH AT 269-459-3344, WHEN APCH CLSD CTC CHICAGO ARTCC AT 630-906-8921.
A110-2PSBL OF CROP IRRIGATION EQUIP OPERG NE APCH TO RWY 23.
A110-3RWY 23 15 FT VERT CLNC OVR ROAD IS WAIVED BY FAA.
A110-5RDO CTLD ACFT OPERATE .5 MI NW OF RWY 09.
A110-7RWY 5 15 FT VERT CLNC OVR ROAD WAIVED BY FAA (10/06/2009 ALP APVL LTR).
A110-8SNOW PLOWING SRY PRIORITY, CALL 269-273-1845 AMGR TO CFM CONDS.
A110-9DEER & LARGE BIRDS ON & INVOF ARPT.
THREE RIVERS MUNI/DR HAINES (ICAO: KHAI, IATA: HAI) is a public airport located in THREE RIVERS, MI.
