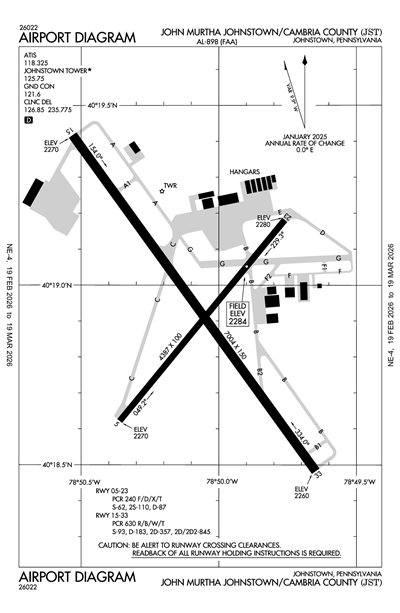

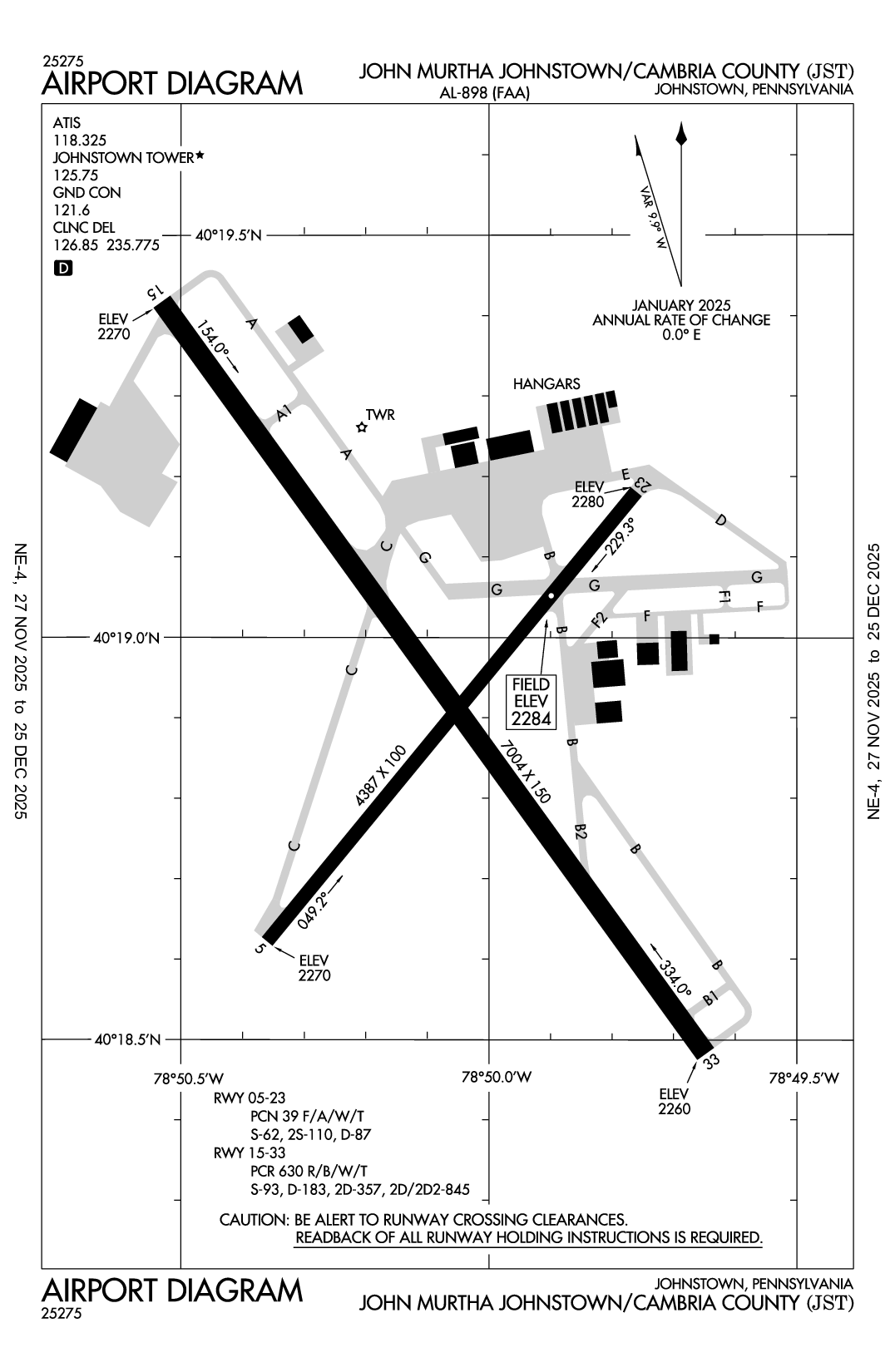

JOHN MURTHA JOHNSTOWN/CAMBRIA COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KJST
JOHN MURTHA JOHNSTOWN/CAMBRIA COUNTY
PublicPUB

3 miles NE of JOHNSTOWN, PA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 18' 56"N 78° 50' 05"W
2284' MSL
3284' MSL
10W
JET A, 100LL
ALTOONA (AOO)
DETROIT
CLEVELAND (ZOB)
5/16/24-6/13/24
KJST VFR
9:54 PM EDT
Clear
10sm
59°F
41°F
30.26"Hg
230° 4kts
AO2 SLP246 T01500050
KJST 010154Z AUTO 23004KT 10SM CLR 15/05 A3026 RMK AO2 SLP246 T01500050
Add Your Business

KJST FBOs

Promote Listing
Nulton Aviation Services
UNICOM: 122.95
Phone: (814) 361-3500
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 5/21
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.12 4.40 4.48
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 125.75

ATIS

ATIS
 118.325

Approach/Departure

APCH/P DEP/P
 121.2
APCH/S DEP/S
 128.2

Clearance Delivery

CD/P
 126.85

Ground

GND/P
 121.6

Tower

LCL/P
 125.75

Other

ARNG OPS
FM ;KEYSTONE OPS
 46.75
OPS
ARNG KEYSTONE
 138.55

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KJST
Fri, 5/31 7:22 PM EDT
Fri, 5/31 8:00 PM EDT - Sat, 6/1 8:00 PM EDT
VFR
8:00 PM EDT - 11:00 AM EDT
Sky Clear
6sm
300° 8kts
VFR
11:00 AM EDT - 8:00 PM EDT
Sky Clear
6sm
170° 4kts
KJST 312322Z 0100/0124 30008KT P6SM SKC
   FM011500 17004KT P6SM SKC
KJST
Domestic
5/30/241633Z !JST 05/086 JST OBST TOWER LGT (ASR 1033124) 401359.30N0785152.10W (5.2NM SSW JST) 2319.9FT (270.0FT AGL) U/S 2405301633-2409271633
5/17/241551Z !JST 05/057 JST APRON T HANGARS RAMP CL MARKINGS NOT STD 2405171551-2406282100EST
5/17/241548Z !JST 05/056 JST TWY A, A1 SFC PAINTED HLDG PSN SIGNS NOT MARKED 2405171548-2406282100EST
5/17/241547Z !JST 05/055 JST TWY A, A1, B2 SFC MARKINGS NOT STD 2405171547-2406282100EST
5/13/241301Z !JST 05/039 JST OBST TOWER LGT (ASR 1226360) 402217.00N0785855.00W (7.5NM WNW JST) 3011.8FT (354.3FT AGL) U/S 2405131301-2406132359
4/29/240934Z !JST 04/057 JST TWY G BTN TWY F2 AND TWY D CLSD 2404290934-2406281300
4/26/241728Z !JST 04/053 JST OBST TOWER LGT (ASR 1064888) 401700.50N0785026.00W (2.0NM S JST) 2497.0FT (178.1FT AGL) U/S 2404261728-2407260400
4/10/240724Z !JST 04/020 JST OBST TOWER LGT (ASR 1028041) 402215.50N0785900.80W (7.5NM WNW JST) 2899.0FT (224.1FT AGL) U/S 2404100724-2407090400
2/21/241035Z !JST 02/092 JST APRON MAIN RAMP SFC MARKINGS FADED 2402211035-2408301700
2/21/241035Z !JST 02/091 JST TWY ALL SFC MARKINGS FADED 2402211035-2408301700
2/21/241034Z !JST 02/090 JST RWY 15/33 SFC MARKINGS FADED 2402211034-2408301700
2/21/241034Z !JST 02/089 JST RWY 05/23 SFC MARKINGS FADED 2402211034-2408301700
FDC
5/29/241240Z !FDC 4/0086 JST IAP JOHN MURTHA JOHNSTOWN/CAMBRIA COUNTY, JOHNSTOWN, PA.
RNAV (GPS) RWY 5, AMDT 2B...
TDZE 2284. LPV DA 2534/HAT 250 ALL CATS. LNAV/VNAV DA 2574/HAT 290 ALL CATS. LNAV MDA 2640/HAT 356 ALL CATS.
2405291240-2605291240EST
11/30/231435Z !FDC 3/8626 JST IAP JOHN MURTHA JOHNSTOWN/CAMBRIA COUNTY, JOHNSTOWN, PA.
VOR Y RWY 15, AMDT 9B...
VOR Z RWY 15, AMDT 7B...
PROCEDURE NA.
2311301435-2511301435EST
9/1/231117Z !FDC 3/4650 JST IAP JOHN MURTHA JOHNSTOWN/CAMBRIA COUNTY, JOHNSTOWN, PA.
VOR Z RWY 23, AMDT 4B...
TERMINAL ROUTES FROM JST VOR/DME TO JUDEY/JST 10.00 DME/RADAR MINIMUM ALTITUDE 4600..
2309011117-2509011117EST
Yes
0500-2400
JOHNSTOWN-CAMBRIA CO APT AUTH
479 ARPT ROAD
JOHNSTOWN, PA 15904
Phone: 814-536-0002
CORY CREE
479 ARPT ROAD
JOHNSTOWN, PA 15904
Phone: 814-536-0002
ALTOONA FSS (AOO)
Toll Free: 1-800-WX-BRIEF
JST
--
WHEN TWR CLSD ACTVT MALSR RWY 33, PAPI RWY 33, HIRL RWY 15/33, MIRL RWY 5/23 AND ALL TWY LGTS - CTAF. PAPI RWY 05 UNAVBL WHEN ATCT CLSD.
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
No
20
4
1
0
20
0
Major
Major
None
None
Air Freight
Charter Service
Pilot Instruction
Aircraft Rental
Annual Surveying

Runway 05/23

4387 ft. x 100 ft.
ASPH
Good
GRVD
MED
39 /F/A/W/T
62,000lbs
87,000lbs
--
--
  Runway 05 Runway 23
True Heading 39°219°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 18' 37"N 40° 19' 11"N
Longitude 78° 50' 22"W 78° 49' 46"W
Elevation 2,270' 2,280'
Threshold Crossing Height 44 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 15/33

7004 ft. x 150 ft.
CONC
Good
GRVD
HIGH
61 /R/B/W/U
93,000lbs
183,000lbs
357,000lbs
845,000lbs
  Runway 15 Runway 33
True Heading 144°324°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 19' 25"N 40° 18' 29"N
Longitude 78° 50' 32"W 78° 49' 39"W
Elevation 2,270' 2,260'
Threshold Crossing Height 52 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L P4R
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights
A110-10TWY B BTN RWY 05/23 AND TWY B2 RSTRD TO ACFT WITH WINGSPAN 78 FT OR LESS.
A110-11ARNG: PPR CTC ARNG 1300-2130Z, 814-532-7720.
A110-3ARNG: ALL TFC TO ARNG RAMP CTC KEYSTONE OPS: 138.55, 241.35, 46.75, RAMP DECONFLICTION 46.75.
A110-7DEER & BIRDS ON & IN VICINITY AIRPORT.
A110-9FOR CD CTC JOHNSTOWN APCH AT 814-532-5960, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0213.
JOHN MURTHA JOHNSTOWN/CAMBRIA COUNTY (ICAO: KJST, IATA: JST) is a public airport located in JOHNSTOWN, PA.
