KJTC
SPRINGERVILLE MUNI
PublicPUB

1 miles WSW of SPRINGERVILLE, AZ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 07' 46"N 109° 18' 39"W
7055' MSL
8055' MSL
12E
JET A (FSII), 100LL
PRESCOTT (PRC)
PHOENIX
ALBUQUERQUE (ZAB)
5/16/24-6/13/24
KJTC VFR
4:25 PM MST
Clear
10sm
84°F
7°F
30.09"Hg
240° 7kts
Gusts 13kts
AO2
KJTC 312325Z AUTO 24007G13KT 10SM CLR 29/M14 A3009 RMK AO2
Add Your Business

KJTC FBOs

Promote Listing
Springerville Municipal Airport
UNICOM: 122.8
Phone: (928) 333-5746
Other: (928) 245-0151
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/30
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.91 4.45
Full Serve 4.65
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
928-333-5716
 119.65

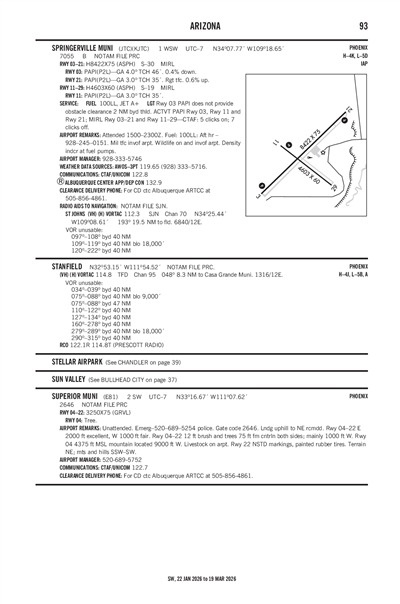

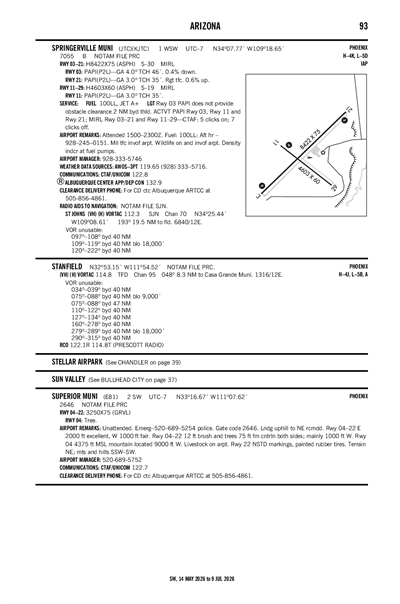

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KGUP (87nm)
Fri, 5/31 5:20 PM MDT
Fri, 5/31 6:00 PM MDT - Sat, 6/1 6:00 PM MDT
VFR
6:00 PM MDT - 8:00 PM MDT
Few 15,000'
6sm
280° 10kts
Gusts 19kts
VFR
8:00 PM MDT - 12:00 PM MDT
Few 25,000'
6sm
VRB° 6kts
VFR
12:00 PM MDT - 6:00 PM MDT
Sky Clear
6sm
230° 11kts
Gusts 20kts
KGUP 312320Z 0100/0124 28010G19KT P6SM FEW150
   FM010200 VRB06KT P6SM FEW250
   FM011800 23011G20KT P6SM SKC
KJTC
Domestic
6/1/241500Z !PRC 05/254 JTC AIRSPACE PJE WI AN AREA DEFINED AS 5NM RADIUS OF JTC SFC-14500FT 2406011500-2406012300
2/22/240600Z !PRC 02/322 JTC OBST TOWER LGT (ASR 1008962) 340302.30N1093404.30W (13.6NM WSW JTC) 9518.7FT (287.1FT AGL) U/S 2402220600-2406210600
No
0800-1600
TOWN OF SPRINGERVILLE
418 EAST MAIN STREET
SPRINGERVILLE, AZ 85938
Phone: 928-333-2656
SEAN KIENLE
905 WEST AIRPORT RD
SPRINGERVILLE, AZ 85938
Phone: 928-333-5746
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
ACTVT PAPI RY 03/21; MIRL RY 03/21; PAPI RY 11; MIRL RY11/29 - CTAF. (NSTD - 5 CLICKS ON; 7 CLICKS OFF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
9
1
0
0
0
0
None
None
None
None
Air Ambulance

Runway 03/21

8422 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 03 Runway 21
True Heading 44°224°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 07' 19"N 34° 08' 19"N
Longitude 109° 19' 15"W 109° 18' 05"W
Elevation 7,055' 7,012'
Threshold Crossing Height 46 ft. AGL 35 ft. AGL
Visual Glide Path Angle 4° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights

Runway 11/29

4603 ft. x 60 ft.
ASPH
Good
NONE
MED

19,000lbs
--
--
--
  Runway 11 Runway 29
True Heading 128°308°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition POOR POOR
Latitude 34° 07' 54"N 34° 07' 26"N
Longitude 109° 18' 59"W 109° 18' 16"W
Elevation 7,033' 7,042'
Threshold Crossing Height 35 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights
A110-1MILITARY TFC NEAR ARPT.
A110-2WILDLIFE ON AND INVOF ARPT.
A110-3DENSITY INDICATORS LOCATED AT FUEL PUMPS.
A110-4RWY 03 PAPI DOES NOT PROVIDE OBSTN CLEARANCE 2NM BYD THLD.
A110-5FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
SPRINGERVILLE MUNI (ICAO: KJTC, IATA: JTC) is a public airport located in SPRINGERVILLE, AZ.
