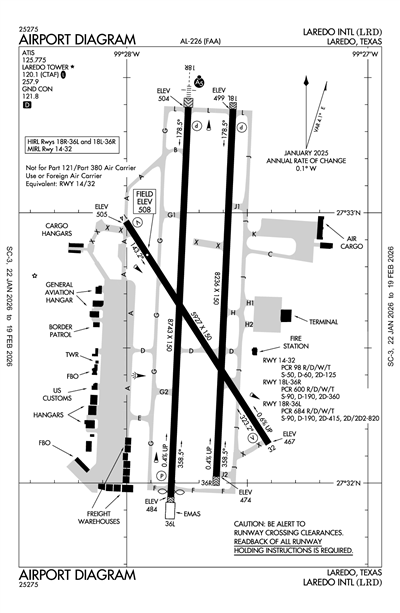

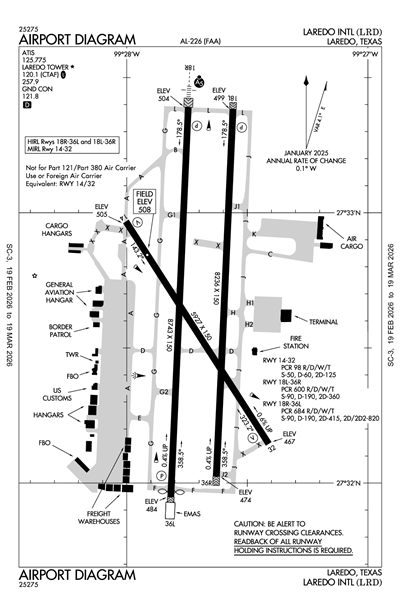

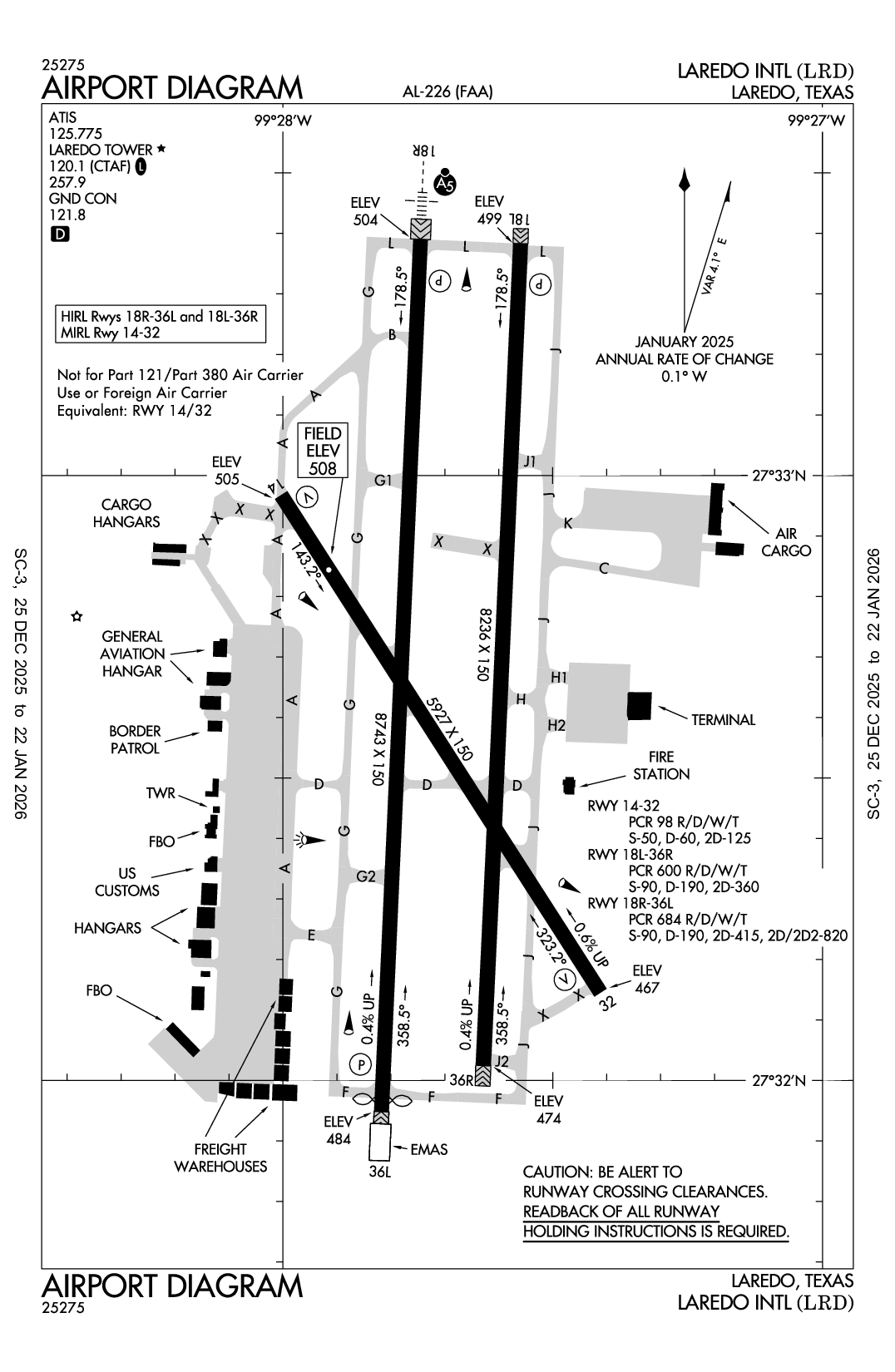

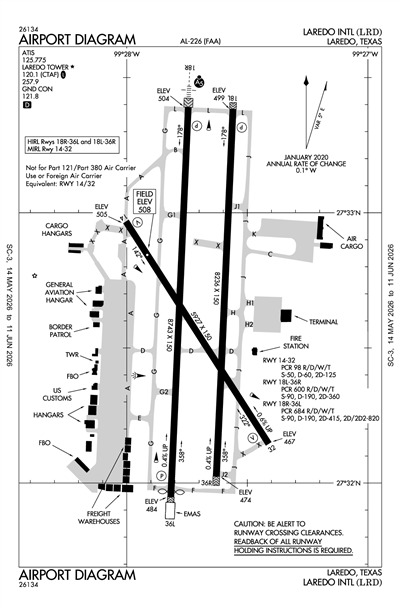

LAREDO INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLRD
LAREDO INTL
PublicPUB

3 miles NE of LAREDO, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
27° 32' 39"N 99° 27' 42"W
508' MSL
1508' MSL
05E
JET A, 100LL
SAN ANGELO (SJT)
BROWNSVILLE
HOUSTON (ZHU)
5/16/24-6/13/24
KLRD VFR
10:56 PM CDT
Overcast 6,000'
Broken 4,600'
10sm
83°F
73°F
29.88"Hg
110° 15kts
AO2 SLP114 T02830228
KLRD 010356Z 11015KT 10SM BKN046 OVC060 28/23 A2988 RMK AO2 SLP114 T02830228
Add Your Business

KLRD FBOs

Promote Listing
Signature Aviation
UNICOM: 122.95
Phone: (956) 723-2031
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/31
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.20 6.80
Fuel Notes
Prices include tax
Promote Listing
Barker Ground Services
UNICOM: 122.95
Phone: (956) 728-7540
Other: (956) 724-7897
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 5/30
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.75 6.57 6.67
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 120.1

ATIS

ATIS
 125.775

Ground

GND/P
 121.8

Tower

LCL/P
 120.1

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KLRD
Fri, 5/31 9:41 PM CDT
Fri, 5/31 10:00 PM CDT - Sat, 6/1 7:00 PM CDT
VFR
10:00 PM CDT - 3:00 AM CDT
Overcast 25,000'
Broken 4,500'
6sm
100° 14kts
MVFR
3:00 AM CDT - 11:00 AM CDT
Broken 2,000'
6sm
110° 10kts
VFR
11:00 AM CDT - 7:00 PM CDT
Broken 4,500'
Scattered 3,000'
6sm
140° 15kts
Gusts 23kts
KLRD 010241Z 0103/0124 10014KT P6SM BKN045 OVC250
   FM010800 11010KT P6SM BKN020
   FM011600 14015G23KT P6SM SCT030 BKN045
KLRD
Domestic
6/5/241300Z !LRD 05/139 LRD RWY 18R/36L CLSD 2406051300-2406052200
6/3/241230Z !LRD 05/138 LRD RWY 18L/36R CLSD 2406031230-2406032200
6/2/240200Z !LRD 06/001 LRD AIRSPACE UAS WI AN AREA DEFINED AS .1NM RADIUS OF 273243N0992647W (1.8NM ESE LRD) SFC-400FT AGL 2406020200-2406020300
6/1/240336Z !LRD 06/002 LRD OBST TOWER LGT (ASR 1061687) 275324.10N0992353.00W (20.8NM NE LRD) 965.9FT (319.9FT AGL) U/S 2406010336-2409290336
5/31/242310Z !LRD 05/141 LRD AIRSPACE UAS WI AN AREA DEFINED AS 3NM RADIUS OF
273025.40N0992908.10W (2.6NM SSW LRD) SFC-400FT AGL
2405312310-2406011700
5/30/242100Z !LRD 05/136 LRD AIRSPACE UAS WI AN AREA DEFINED AS 272839.30N0992830W
(4.0NM S LRD) TO 272712.60N0992932.80W (5.7NM SSW LRD) TO
272435.30N0992912.80W (8.2NM S LRD) TO 272245.80N0992929.60W (10.0NM
S LRD) TO 272059.10N0993024.70W (11.9NM S LRD) TO 272020N0993011.80W
(12.5NM S LRD) TO 271900.10N0993204.90W (14.2NM S LRD) TO
271820.40N0993114.80W (14.6NM S LRD) TO 271825.70N0992936.20W
(14.3NM S LRD) TO 271716.10N0992910.40W (15.4NM S LRD) TO
271623.30N0992939.50W (16.3NM S LRD) TO 271542.30N0992901.10W
(16.9NM S LRD) TO 271613.90N0992738.40W (16.4NM S LRD) TO
271527N0992642.20W (17.2NM S LRD) TO 271557N0992613.70W (16.7NM S
LRD) TO 271635.30N0992339.80W (16.4NM SSE LRD) TO 272837.50N0992641W
(4.1NM SSE LRD) TO POINT OF ORIGIN SFC-400FT AGL THU-MON 2100-0700
2405302100-2406040700
5/30/240701Z !LRD 05/135 LRD OBST TOWER LGT (ASR 1304671) 273830.50N0991105.26W (16.0NM ENE LRD) 896FT (296FT AGL) U/S 2405300701-2407140701
5/29/242122Z !LRD 05/133 LRD TWY G2 CLSD 2405292122-2406282200
5/29/242122Z !LRD 05/132 LRD TWY G1 CLSD 2405292122-2406282200
5/29/242121Z !LRD 05/131 LRD TWY A BTN TWY E AND TWY D CLSD 2405292121-2406282200
5/29/242114Z !LRD 05/130 LRD OBST TOWER LGT (ASR 1238017) 275328.70N0992823.80W (20.6NM N LRD) 1143.4FT (342.2FT AGL) U/S 2405292114-2409262114
5/29/241607Z !LRD 05/128 LRD OBST TOWER LGT (ASR 1226948) 273502.40N0991802.60W (9.0NM ENE LRD) 973.8FT (254.9FT AGL) U/S 2405291607-2409261607
5/27/241300Z !LRD 05/115 LRD AIRSPACE UAS WI AN AREA DEFINED AS 273021N0993009W
(3.2NM SW LRD) TO 273001N0993005W (3.4NM SW LRD) TO 272833N0992854W
(4.2NM S LRD) TO 272712N0992932W (5.7NM SSW LRD) TO 272435N0992912W
(8.2NM S LRD) TO 272245N0992929W (10.0NM S LRD) TO 272059N0993024W
(11.9NM S LRD) TO 272020N0993011W (12.5NM S LRD) TO 271900N0993204W
(14.2NM S LRD) TO 271820N0993114W (14.6NM S LRD) TO 271825N0992936W
(14.3NM S LRD) TO 271716N0992910W (15.4NM S LRD) TO 271623N0992939W
(16.3NM S LRD) TO 271542N0992901W (16.9NM S LRD) TO 271613N0992738W
(16.4NM S LRD) TO 271527N0992642W (17.2NM S LRD) TO 271557N0992613W
(16.7NM S LRD) TO 271635N0992339W (16.4NM SSE LRD) TO
272837N0992641W (4.1NM SSE LRD) TO 272955N0992735W (2.7NM S LRD) TO
POINT OF ORIGIN SFC-400FT AGL MON-SAT 1300-2100
2405271300-2406012100
5/27/241300Z !LRD 05/114 LRD AIRSPACE UAS WI AN AREA DEFINED AS 272839.30N0992830W
(4.0NM S LRD) TO 272712.60N0992932.80W (5.7NM SSW LRD) TO
272435.30N0992912.80W (8.2NM S LRD) TO 272245.80N0992929.60W (10.0NM
S LRD) TO 272059.10N0993024.70W (11.9NM S LRD) TO 272020N0993011.80W
(12.5NM S LRD) TO 271900.10N0993204.90W (14.2NM S LRD) TO
271820.40N0993114.80W (14.6NM S LRD) TO 271825.70N0992936.20W
(14.3NM S LRD) TO 271716.10N0992910.40W (15.4NM S LRD) TO
271623.30N0992939.50W (16.3NM S LRD) TO 271542.30N0992901.10W
(16.9NM S LRD) TO 271613.90N0992738.40W (16.4NM S LRD) TO
271527N0992642.20W (17.2NM S LRD) TO 271557N0992613.70W (16.7NM S
LRD) TO 271635.30N0992339.80W (16.4NM SSE LRD) TO 272837.50N0992641W
(4.1NM SSE LRD) TO POINT OF ORIGIN SFC-400FT AGL
2405271300-2406012100
5/27/241030Z !LRD 05/113 LRD AIRSPACE UAS WI AN AREA DEFINED AS 272839.30N0992830W
(4.0NM S LRD) TO 272712.60N0992932.80W (5.7NM SSW LRD) TO
272435.30N0992912.80W (8.2NM S LRD) TO 272245.80N0992929.60W (10.0NM
S LRD) TO 272059.10N0993024.70W (11.9NM S LRD) TO 272020N0993011.80W
(12.5NM S LRD) TO 271900.10N0993204.90W (14.2NM S LRD) TO
271820.40N0993114.80W (14.6NM S LRD) TO 271825.70N0992936.20W
(14.3NM S LRD) TO 271716.10N0992910.40W (15.4NM S LRD) TO
271623.30N0992939.50W (16.3NM S LRD) TO 271542.30N0992901.10W
(16.9NM S LRD) TO 271613.90N0992738.40W (16.4NM S LRD) TO
271527N0992642.20W (17.2NM S LRD) TO 271557N0992613.70W (16.7NM S
LRD) TO 271635.30N0992339.80W (16.4NM SSE LRD) TO 272837.50N0992641W
(4.1NM SSE LRD) TO POINT OF ORIGIN SFC-400FT AGL MON-SAT 1030-2100
2405271030-2406012100
5/15/241850Z !LRD 05/080 LRD OBST TOWER LGT (ASR 1049999) 272716.20N0992516.90W (5.7NM SSE LRD) 997.0FT (394.0FT AGL) U/S 2405151850-2408130400
5/13/241844Z !LRD 05/068 LRD TWY L BTN APCH END RWY 18L AND TWY J CLSD 2405131844-2409302200
5/13/241843Z !LRD 05/067 LRD TWY J BTN TWY K AND TWY L CLSD 2405131843-2409302200
5/5/241258Z !LRD 05/027 LRD OBST TOWER LGT (ASR 1054051) 273238.00N0993030.00W (2.5NM W LRD) 839.9FT (419.9FT AGL) U/S 2405051258-2406042359
5/4/242335Z !LRD 05/026 LRD OBST TOWER LGT (ASR 1061175) 272126.50N0992343.00W (11.6NM SSE LRD) 858.9FT (310.0FT AGL) U/S 2405042335-2406042359
5/3/240000Z !LRD 05/010 LRD AIRSPACE UAS WI AN AREA DEFINED AS 1NM EITHER SIDE OF
A LINE FM 273930.70N0993355.40W (8.8NM NW LRD) TO
273437.30N0992949.90W (2.7NM NW LRD) TO 273046.40N0993014.60W (2.9NM
SW LRD) SFC-400FT AGL DLY 0000-2359 2405030000-2406012359
4/30/241301Z !LRD 04/124 LRD TWY C BTN NORTHEAST CARGO APN AND TWY J CLSD 2404301301-2406282200
4/28/241720Z !LRD 04/113 LRD OBST TOWER LGT (ASR 1222034) 273655.60N0991325.20W (13.5NM ENE LRD) 940.9FT (328.1FT AGL) U/S 2404281720-2407280400
4/10/241430Z !LRD 04/047 LRD OBST TOWER LGT (ASR 1048739) 272707.30N0992443.20W (6.1NM SSE LRD) 926.8FT (314.0FT AGL) U/S 2404101430-2408081430
FDC
5/22/241617Z !FDC 4/8153 LRD IAP LAREDO INTL, LAREDO, TX.
ILS OR LOC RWY 18R, AMDT 12...
LOC BC RWY 36L, AMDT 3...
VOR OR TACAN RWY 14, AMDT 10A...
VOR OR TACAN RWY 32, AMDT 11A...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LRD TACAN OUT OF SERVICE. 2405221617-2406261617EST
5/8/241757Z !FDC 4/1008 LRD IAP LAREDO INTL, LAREDO, TX.
VOR OR TACAN RWY 14, AMDT 10A...
TACAN PORTION NA,
LRD TACAN AZIMUTH OUT OF SERVICE. 2405081757-2412181757EST
4/4/231724Z !FDC 3/6021 LRD IAP LAREDO INTL, LAREDO, TX.
ILS OR LOC RWY 18R, AMDT 12...
PROCEDURE TURN NOT AUTHORIZED BELOW 4000 BEYOND 18 DME, I-LRD LOCALIZER COURSE UNUSABLE BELOW 4000 BEYOND 18 DME.
2304041724-2504041724EST
Yes
ALL
CITY OF LAREDO
PO BOX 579
LAREDO, TX 78041
Phone: 956-791-7300
GILBERTO SANCHEZ
5210 BOB BULLOCK LOOP
LAREDO, TX 78041
Phone: 956-795-2000
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
LRD
--
WHEN ATCT CLSD ACTVT MALSR RWY 18R - CTAF. MIRL RWY 14/32; HIRL RWYS 18L/36R & 18R/36L PRESET MED INTST.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
Airport of Entry
21
9
19
13
6
2
None
Major
Low Pressure
Low Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 14/32

5927 ft. x 150 ft.
CONC
Good
NONE
MED

50,000lbs
60,000lbs
125,000lbs
--
  Runway 14 Runway 32
True Heading 147°327°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 27° 32' 58"N 27° 32' 09"N
Longitude 99° 28' 00"W 99° 27' 25"W
Elevation 505' 467'
Threshold Crossing Height 55 ft. AGL 71 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18L/36R

8236 ft. x 150 ft.
CONC
Good
GRVD
HIGH

90,000lbs
190,000lbs
360,000lbs
--
  Runway 18L Runway 36R
True Heading 183°3°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 27° 33' 23"N 27° 32' 01"N
Longitude 99° 27' 34"W 99° 27' 38"W
Elevation 499' 474'
Threshold Crossing Height 51 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18R/36L

8743 ft. x 150 ft.
CONC
Good
GRVD
HIGH

90,000lbs
190,000lbs
415,000lbs
820,000lbs
  Runway 18R Runway 36L
True Heading 183°3°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 27° 33' 23"N 27° 31' 57"N
Longitude 99° 27' 45"W 99° 27' 49"W
Elevation 504' 484'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights No
A110-10FEDERAL INSPECTION STATION IS LCTD ON THE WEST GENERAL AVIATION/CARGO APRON.
A110-11FOR CD IF UNA TO CTC ON FSS FREQ, CTC HOUSTON ARTCC AT 281-230-5622.
A110-12BIRDS ON AND INVOF ARPT.
A110-13LNDG FEE ASSESSED FOR ANY "FOR HIRE" ACFT.
A110-14FEDERAL INSPECTION STATION FEE.
A110-7RWY 14/32 RSTRD TO ACFT LESS THAN 60000 LBS DTW.
A110-9TWY C CLSD BTN RWY 18L/36R & RWY 18R INDEFLY.
LAREDO INTL (ICAO: KLRD, IATA: LRD) is a public airport located in LAREDO, TX.
