MORRIS MUNI/CHARLIE SCHMIDT FLD - Airport Diagram

KMOX

MORRIS MUNI/CHARLIE SCHMIDT FLD

PublicPUB

3 miles SW of MORRIS, MN

View on Map

Status

Operational

Coordinates

45° 33' 55"N 95° 57' 59"W

Elevation

1136' MSL

Pattern Alt

2136' MSL

Mag Variation

02E

Fuel

JET A, 100LL

FSS

PRINCETON (PNM)

Sectional

TWIN CITIES

ARTCC

MINNEAPOLIS (ZMP)

Data Effective

5/16/24-6/13/24

KMOX VFR

11:15 PM CDT RAW

Clear

Viz

10sm

Temp

55°F

Dew

52°F

Pres

29.99"Hg

Wind

150° 5kts

RMK

AO2

KMOX 010415Z AUTO 15005KT 10SM CLR 13/11 A2999 RMK AO2

Add Your Business

KMOX FBOs

Promote Listing

Morris Municipal Airport

UNICOM: 122.8

Phone: (320) 589-2083

0 Reviews (Read | Sign In To Write)

Independent

As of 5/16	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.40	6.00
Full Serve

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.8 CTAF 122.8

AWOS-3PT

320-589-1303

118.6

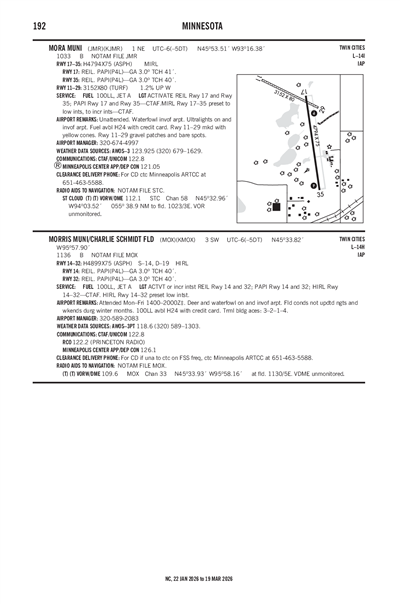

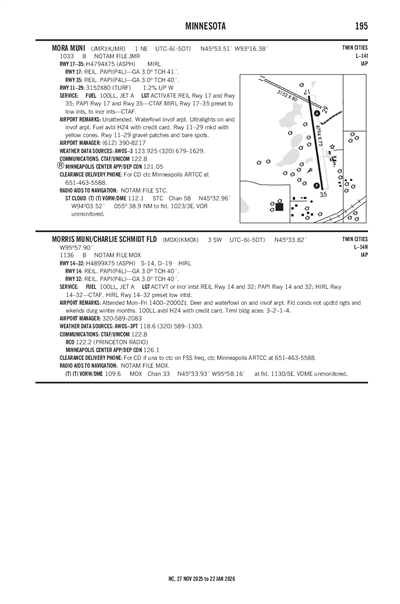

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KAXN (30nm)

RAW

Reported

Fri, 5/31 6:20 PM CDT

Valid

Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT

VFR

7:00 PM CDT - 10:00 AM CDT

Broken 10,000'

Viz

6sm

Wind

320° 4kts

VFR

10:00 AM CDT - 7:00 PM CDT

Few 25,000'

Viz

6sm

Wind

260° 8kts

KAXN 312320Z 0100/0124 32004KT P6SM BKN100
FM011500 26008KT P6SM FEW250

KMOX

Domestic
5/20/241100Z	!MOX 05/004 MOX AD AP FUEL NOT AVBL 2405201100-2407160100
5/20/241100Z	!MOX 05/003 MOX APRON ALL CLSD 2405201100-2407160100
5/14/241434Z	!MOX 05/001 MOX RWY 32 PAPI U/S 2405141434-2406300500
2/14/241617Z	!MOX 02/002 MOX RWY 04/22 CLSD 2402141617-PERM

ATC Tower

Attendance

MON-FRI 0800-1400

Owner

CITY OF MORRIS
609 OREGON AVE, PO BOX 438
MORRIS, MN 56267-0438
Phone: 320-589-3141

Manager

THOMAS KLOOS
50725 STATE HIGHWAY 28
MORRIS, MN 56267-4412
Phone: 320-589-2083

FSS

PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF

NOTAM

MOX

Light Schedule

Lights

ACTVT OR INCR INTST REIL RWY 14 & 32; PAPI RWY 14 & 32; HIRL RWY 14/32 - CTAF. HIRL RWY 14/32 PRESET LOW INTST.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Aircraft Sales

Runway 04/22

Dimensions

2637 ft. x 145 ft.

Surface Type

TURF

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 04	Runway 22
True Heading	48°	228°
Traffic Pattern	Left	Left
Markings
Markings Condition
Latitude	45° 33' 57"N	45° 34' 14"N
Longitude	95° 58' 22"W	95° 57' 54"W
Elevation	1,123'	1,136'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	No

Runway 14/32

Dimensions

4899 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

14,000lbs

Double Wheel

19,000lbs

Double Tandem

Dual Dbl Tand

	Runway 14	Runway 32
True Heading	144°	324°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	POOR	GOOD
Latitude	45° 34' 08"N	45° 33' 29"N
Longitude	95° 58' 14"W	95° 57' 34"W
Elevation	1,128'	1,118'
Threshold Crossing Height	40 ft. AGL	40 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	Yes	Yes

A110-1	DEER & WATERFOWL ON & INVOF ARPT.
A110-2	FLD CONDS NOT UPDTD NGTS & WKENDS DURG WINTER MONTHS.
A110-5	TRML BLDG ACES: 3-2-1-4.
A110-7	FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.

MORRIS MUNI/CHARLIE SCHMIDT FLD (ICAO: KMOX, IATA: MOX) is a public airport located in MORRIS, MN.
