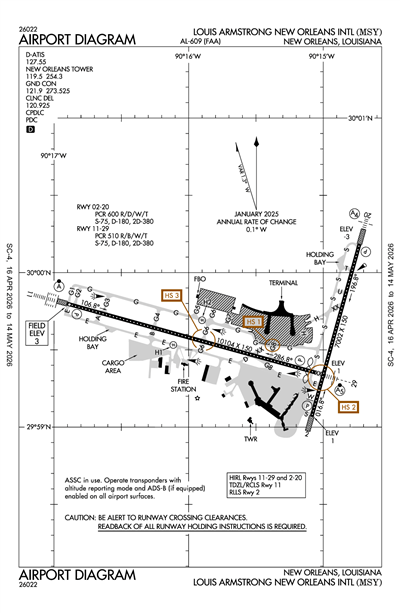

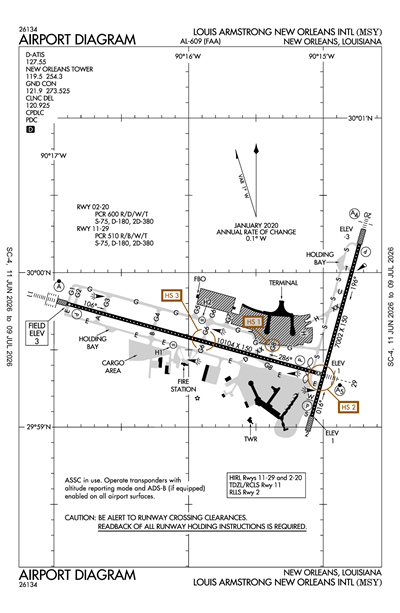

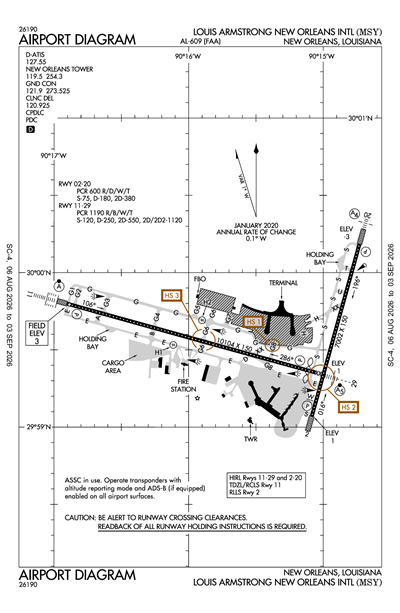

LOUIS ARMSTRONG NEW ORLEANS INTL - Airport Diagram

KMSY

LOUIS ARMSTRONG NEW ORLEANS INTL

PublicPUB

10 miles W of NEW ORLEANS, LA

View on Map

Status

Operational

Coordinates

29° 59' 36"N 90° 15' 32"W

Elevation

4' MSL

Pattern Alt

1004' MSL

Mag Variation

01W

Fuel

JET A, 100LL

FSS

DE RIDDER (DRI)

Sectional

NEW ORLEANS

ARTCC

HOUSTON (ZHU)

Data Effective

5/16/24-6/13/24

KMSY VFR

10:53 PM CDT RAW

Scattered 25,000'
Few 4,000'
Few 2,500'

Viz

10sm

Temp

79°F

Dew

77°F

Pres

29.98"Hg

Wind

120° 6kts

RMK

AO2 SLP155 T02610250 $

KMSY 010353Z 12006KT 10SM FEW025 FEW040 SCT250 26/25 A2998 RMK AO2 SLP155 T02610250 $

Add Your Business

KMSY FBOs

Promote Listing

Atlantic Aviation

UNICOM: 130.375

Phone: (504) 466-1700

0 Reviews (Read | Sign In To Write)

Independent

As of 5/26	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	8.61	7.98

Fuel Notes

Prices include tax

Promote Listing

Signature Aviation

UNICOM: 130.6

Phone: (504) 468-7722

0 Reviews (Read | Sign In To Write)

Independent

As of 5/31	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	8.50	7.98

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.95 CTAF --

ATIS

D-ATIS

504-471-4417

127.55

Approach/Departure

APCH/P DEP/P WEST	125.5
APCH/P DEP/P EAST	133.15

Clearance Delivery

CD PRE TAXI CLNC	120.925
CD/P	120.925

Emergency

EMERG

121.5

Ground

GND/P

121.9

Tower

LCL/P

119.5

Other

AWDAD STAR WEST	125.5
CLASS B SE & SOUTH	123.85
CLASS B WEST	125.5
CLASS B NORTH & EAST	133.15
MNSTR STAR EAST	133.15
OLEDD STAR WEST	125.5

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

No Documents

Hotspot

HOT SPOT

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KMSY

RAW

Reported

Fri, 5/31 6:24 PM CDT

Valid

Fri, 5/31 7:00 PM CDT - Sun, 6/2 1:00 AM CDT

VFR

7:00 PM CDT - 9:00 PM CDT

Light Rain and Thunderstorm in vicinity

Broken 3,500'
Few 1,500'

Viz

6sm

Wind

100° 4kts

VFR

9:00 PM CDT - 2:00 AM CDT

Broken 3,500'

Viz

6sm

Wind

120° 7kts

VFR

2:00 AM CDT - 10:00 AM CDT

Scattered 2,500'

Viz

6sm

Wind

160° 5kts

VFR

10:00 AM CDT - 1:00 AM CDT

Thunderstorm in vicinity

Broken 10,000'

Viz

6sm

Wind

210° 6kts

KMSY 312324Z 0100/0206 10004KT P6SM -RA VCTS FEW015CB BKN035
   FM010200 12007KT P6SM BKN035
   FM010700 16005KT P6SM SCT025
   FM011500 21006KT P6SM VCTS BKN100CB

KMSY

Domestic
5/31/242206Z	!MSY 05/086 MSY COM ARINC CPDLC U/S 2405312206-2406062000EST
5/30/241702Z	!MSY 05/078 MSY RWY 20 RVRR U/S 2405301702-2406282000EST
5/30/241702Z	!MSY 05/077 MSY RWY 02 RVRT U/S 2405301702-2406282000EST
5/21/241805Z	!MSY 05/056 MSY OBST TOWER LGT (ASR 1266500) 295610.80N0901451.70W (3.4NM S MSY) 225.1FT (224.1FT AGL) U/S 2405211805-2408190400
5/6/241300Z	!MSY 05/023 MSY TWY W CLSD 2405061300-2409062200
5/6/241300Z	!MSY 05/022 MSY TWY S BTN TWY E AND APCH END RWY 02 CLSD 2405061300-2409062200
5/3/241508Z	!MSY 05/015 MSY RWY 02/20 CHANGED TO 7001FT X 150FT. DECLARED DIST: RWY02 TORA 7001FT TODA 7001FT ASDA 7001FT LDA 7001FT. RWY 20 TORA 7001FT TODA 7001FT ASDA 6948FT LDA 6948FT. 2405031508-PERM
5/3/241239Z	!MSY 05/011 MSY NAV ILS RWY 11 CAT II/III NA 2405031239-2407012000EST
4/29/241348Z	!MSY 04/086 MSY RWY 11 SEQUENCED FLG LGT U/S 2404291348-2406062000EST
3/27/241750Z	!MSY 03/108 MSY OBST TOWER LGT (ASR 1049092) 295537.80N0900920.40W (6.6NM SE MSY) 340.9FT (336.9FT AGL) U/S 2403271750-2406272359
3/11/240616Z	!MSY 03/047 MSY OBST TOWER LGT (ASN 1993-ASW-1798-OE) 295723N0901615W (2.3NM SSW MSY) 220FT (212FT AGL) U/S 2403110616-2406112359
3/7/241709Z	!MSY 03/036 MSY OBST TOWER LGT (ASR 1045289) 295648.00N0901121.00W (4.6NM SE MSY) 273.6FT (265.7FT AGL) U/S 2403071709-2407051709
1/16/241755Z	!MSY 01/045 MSY OBST TOWER LGT (ASR 1031898) 295044.00N0900639.00W (11.6NM SE MSY) 274.0FT (269.0FT AGL) U/S 2401161755-2406172359
FDC
5/20/241106Z	!FDC 4/6582 MSY IAP LOUIS ARMSTRONG NEW ORLEANS INTL, NEW ORLEANS, LA. RNAV (GPS) Y RWY 11, AMDT 2B... LPV DA 254/HAT 250 ALL CATS. TEMPORARY COSTRUCTION EQUIPMENT, 32 MSL, 882' WEST OF RWY 11 (2023-ASW-8026/8029-NRA). 2405201106-2406161106EST
5/20/241106Z	!FDC 4/6581 MSY IAP LOUIS ARMSTRONG NEW ORLEANS INTL, NEW ORLEANS, LA. ILS RWY 11 (SA CAT I), AMDT 5A ... ILS RWY 11 (CAT II AND III), AMDT 5A ... PROCEDURE NA. TEMPORARY COSTRUCTION EQUIPMENT, 32 MSL, 882' WEST OF RWY 11 (2023-ASW-8026/8029-NRA) 2405201106-2406161106EST
5/20/241106Z	!FDC 4/6580 MSY IAP LOUIS ARMSTRONG NEW ORLEANS INTL, NEW ORLEANS, LA. ILS OR LOC RWY 11, AMDT 5A... S-ILS 11 DA 254/ HAT 250 ALL CATS. TEMPORARY COSTRUCTION EQUIPMENT, 32 MSL, 882' WEST OF RWY 11 (2023-ASW-8026/8029-NRA). 2405201106-2406161106EST
5/20/241106Z	!FDC 4/6579 MSY ODP LOUIS ARMSTRONG NEW ORLEANS INTL, NEW ORLEANS, LA. TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2... TAKEOFF OBSTACLE NOTES, RWY 11, TEMPORARY MEN AND EQUIPMENT, BEGINNING 557 FT FROM DER, BEGINNING 497 FT RIGHT OF CENTERLINE, UP TO 60 AGL/UP TO 60 MSL (2022-ASW-3305/3306/3308/3309-NRA), RWY 29, TEMPORARY CONSTRUCTION EQUIPMENT, 789FT FROM DER, 395FT LEFT OF CENTERLINE, 30 AGL/32 MSL (2023-ASW-8069-NRA). ALL OTHER DATA REMAINS AS PUBLISHED. 2405201106-2406161106EST
5/6/241437Z	!FDC 4/8996 MSY IAP LOUIS ARMSTRONG NEW ORLEANS INTL, NEW ORLEANS, LA. RNAV (GPS) Y RWY 11, AMDT 2B... CHANGE UNCOMPENSATED BARO-VNAV NOTE TO READ: FOR UNCOMPENSATED BARO-VNAV SYSTEMS, LNAV/VNAV NA BELOW -1C OR ABOVE 54C. DELETE NOTE: DME/DME RNP-0.3 NA. PBN REQUIREMENTS NOTE: RNP APCH - GPS. DELETE PROFILE NOTE: *LNAV ONLY. DELETE ASTERISK FROM MINIMUM ALTITUDE AT WEKTA 1.40 NM TO RW11 500. CHART PROFILE NOTE: VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI ANGLE 2.80/TCH 72.9). THIS IS RNAV (GPS) Y RWY 11, AMDT 2C. 2405061437-PERM
5/6/241437Z	!FDC 4/8995 MSY IAP LOUIS ARMSTRONG NEW ORLEANS INTL, NEW ORLEANS, LA. RNAV (RNP) Z RWY 11, AMDT 1B... CHART PROFILE NOTE: VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI ANGLE 2.80/TCH 72.9). THIS IS RNAV (RNP) Z RWY 11, AMDT 1C. 2405061437-PERM
5/6/241437Z	!FDC 4/8994 MSY IAP LOUIS ARMSTRONG NEW ORLEANS INTL, NEW ORLEANS, LA. ILS OR LOC RWY 11, AMDT 5A... ILS RWY 11 (SA CAT I), AMDT 5A... ILS RWY 11 (CAT II AND III), AMDT 5A... DELETE PROFILE NOTE: *LOC ONLY. DELETE ASTERISK FROM MINIMUM ALTITUDE AT WENUP I-MSY 3.28 DME 500. DELETE ASTERISK FROM VDP AT 2.67 DME. CHART PROFILE NOTE: VGSI AND ILS GLIDEPATH NOT COINCIDENT (VGSI ANGLE 2.80/TCH 72.9). THIS IS ILS OR LOC RWY 11, AMDT 5B... ILS RWY 11 (SA CAT I), AMDT 5B... ILS RWY 11 (CAT II AND III), AMDT 5B... 2405061437-PERM
4/12/241648Z	!FDC 4/0219 MSY IAP LOUIS ARMSTRONG NEW ORLEANS INTL, NEW ORLEANS, LA. ILS OR LOC RWY 11, AMDT 5A... ILS RWY 11 (SA CAT I), AMDT 5A... ILS RWY 11 (CAT II AND III), AMDT 5A... MISSED APPROACH: CLIMB TO 800 THEN CLIMBING RIGHT TURN TO 2600 DIRECT HRV VORTAC AND HOLD SE, RT, 303.90 INBOUND., LEV VORTAC OUT OF SERVICE. 2404121648-2504231648EST
4/12/241648Z	!FDC 4/0217 MSY IAP LOUIS ARMSTRONG NEW ORLEANS INTL, NEW ORLEANS, LA. VOR/DME RWY 11, AMDT 1A... PROCEDURE NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, LEV VORTAC OUT OF SERVICE. 2404121648-2504231648EST
3/19/241211Z	!FDC 4/8656 MSY IAP LOUIS ARMSTRONG NEW ORLEANS INTL, NEW ORLEANS, LA. ILS OR LOC RWY 11, AMDT 5A... WENUP FIX MINIMUM: S-LOC 11 MDA 340/HAT 336 ALL CATS. CIRCLING CAT B MDA 540/HAA 536. 2403191211-2603191211EST
3/19/241211Z	!FDC 4/8654 MSY IAP LOUIS ARMSTRONG NEW ORLEANS INTL, NEW ORLEANS, LA. ILS OR LOC RWY 29, AMDT 10A... RNAV (GPS) RWY 2, AMDT 3... RNAV (GPS) Y RWY 11, AMDT 2B... RNAV (GPS) Y RWY 20, AMDT 3A... RNAV (GPS) Y RWY 29, AMDT 4A... VOR/DME RWY 11, AMDT 1A... CIRCLING CAT B MDA 540/HAA 536. 2403191211-2603191211EST
3/18/242009Z	!FDC 4/8506 MSY IAP LOUIS ARMSTRONG NEW ORLEANS INTL, NEW ORLEANS, LA. ILS OR LOC RWY 2, AMDT 20A... YERUB FIX MINIMUMS: S-LOC 2 MDA 440/HAT 438 ALL CATS. CIRCLING CAT B MDA 540/HAA 536. 2403182009-2410282009EST
3/18/242009Z	!FDC 4/8505 MSY IAP LOUIS ARMSTRONG NEW ORLEANS INTL, NEW ORLEANS, LA. LOC RWY 20, AMDT 3A... SHORE FIX MINIMUMS: S-20 MDA 420/HAT 421 ALL CATS. CIRCLING CAT B MDA 540/HAA 536. 2403182009-2410282009EST
6/29/230201Z	!FDC 3/8459 MSY IAP LOUIS ARMSTRONG NEW ORLEANS INTL, NEW ORLEANS, LA. ILS RWY 11 (SA CAT I), AMDT 5A ... ILS RWY 11 (CAT II - III), AMDT 5A ... PROCEDURE NA EXC FOR RDO ALTIMETER TOLERANT ACFT AND ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVE 2023-10-02 AND 5G C-BAND DOMESTIC NOTICES. 2306290201-2506290152EST
8/15/221613Z	!FDC 2/9689 MSY IAP LOUIS ARMSTRONG NEW ORLEANS INTL, NEW ORLEANS, LA. RNAV (RNP) Z RWY 29, AMDT 2... RNP 0.30 DA 424/HAT 422 ALL CATS. TOWER, 85 MSL, 4942 FT SE OF APCH END RWY 29 (22-053179), TOWER, 77 MSL, 1.13 NM SE OF APCH END RWY 29 (22-045261). 2208151613-2408151613EST

ATC Tower

Yes

Attendance

ALL

Owner

CITY OF NEW ORLEANS
PO BOX 20007
NEW ORLEANS, LA 70141
Phone: 504-658-4900

Manager

KEVIN DOLLIOLE
PO BOX 20007
NEW ORLEANS, LA 70141
Phone: (504) 303-7652

FSS

DE RIDDER FSS (DRI)
Toll Free: 1-800-WX-BRIEF

NOTAM

MSY

Light Schedule

Sunset to Sunrise

Lights

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Yes

Parking

Tie-Down

Int'l Operations

Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Air Freight
Cargo Handling

Runway 02/20

Dimensions

7001 ft. x 150 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

64 /R/C/W/T

Single Wheel

75,000lbs

Double Wheel

180,000lbs

Double Tandem

380,000lbs

Dual Dbl Tand

	Runway 02	Runway 20
True Heading	15°	195°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	29° 59' 04"N	30° 00' 11"N
Longitude	90° 15' 05"W	90° 14' 44"W
Elevation	2'	-2'
Threshold Crossing Height	52 ft. AGL	52 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights	RLLS	MALS
Centerline Lights	Yes	Yes
Runway End Identifier Lights

Runway 11/29

Dimensions

10104 ft. x 150 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

123/R/C/W/T

Single Wheel

75,000lbs

Double Wheel

180,000lbs

Double Tandem

380,000lbs

Dual Dbl Tand

	Runway 11	Runway 29
True Heading	105°	285°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	29° 59' 48"N	29° 59' 21"N
Longitude	90° 16' 54"W	90° 15' 03"W
Elevation	4'	1'
Threshold Crossing Height	55 ft. AGL	68 ft. AGL
Visual Glide Path Angle	2.8°	3°
Visual Slope Indicator	P4R	P4R
Approach Lights	ALSF2	MALSR
Centerline Lights	Yes	Yes
Runway End Identifier Lights

A110-1	180 DEG & LOCKED WHEEL TURNS PROHIBITED ON ASPH SFC ACFT 12500 LBS & OVER.
A110-3	FLOCKS OF BIRDS ON & IN VICINITY OF ARPT.
A110-5	RY 11 NOISE SENSITIVE FOR DEP; AVBL FOR OPNL NECESSITY. ALL RYS NOISE SENSITIVE FOR ARR. ARRIVING TURBOJETS MUST MAKE 5 MILE FINAL APCH TO MINIMIZE NOISE.
A110-6	ASSC IN USE. OPERATE TRANSPONDERS WITH ALTITUDE REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AIRPORT SURFACES.
A110-7	TWY G BTN RWY 11/29 AND TWY S SFC MOV GUIDANCE AND CTL SYSTEM U/S PERM

LOUIS ARMSTRONG NEW ORLEANS INTL (ICAO: KMSY, IATA: MSY) is a public airport located in NEW ORLEANS, LA.
