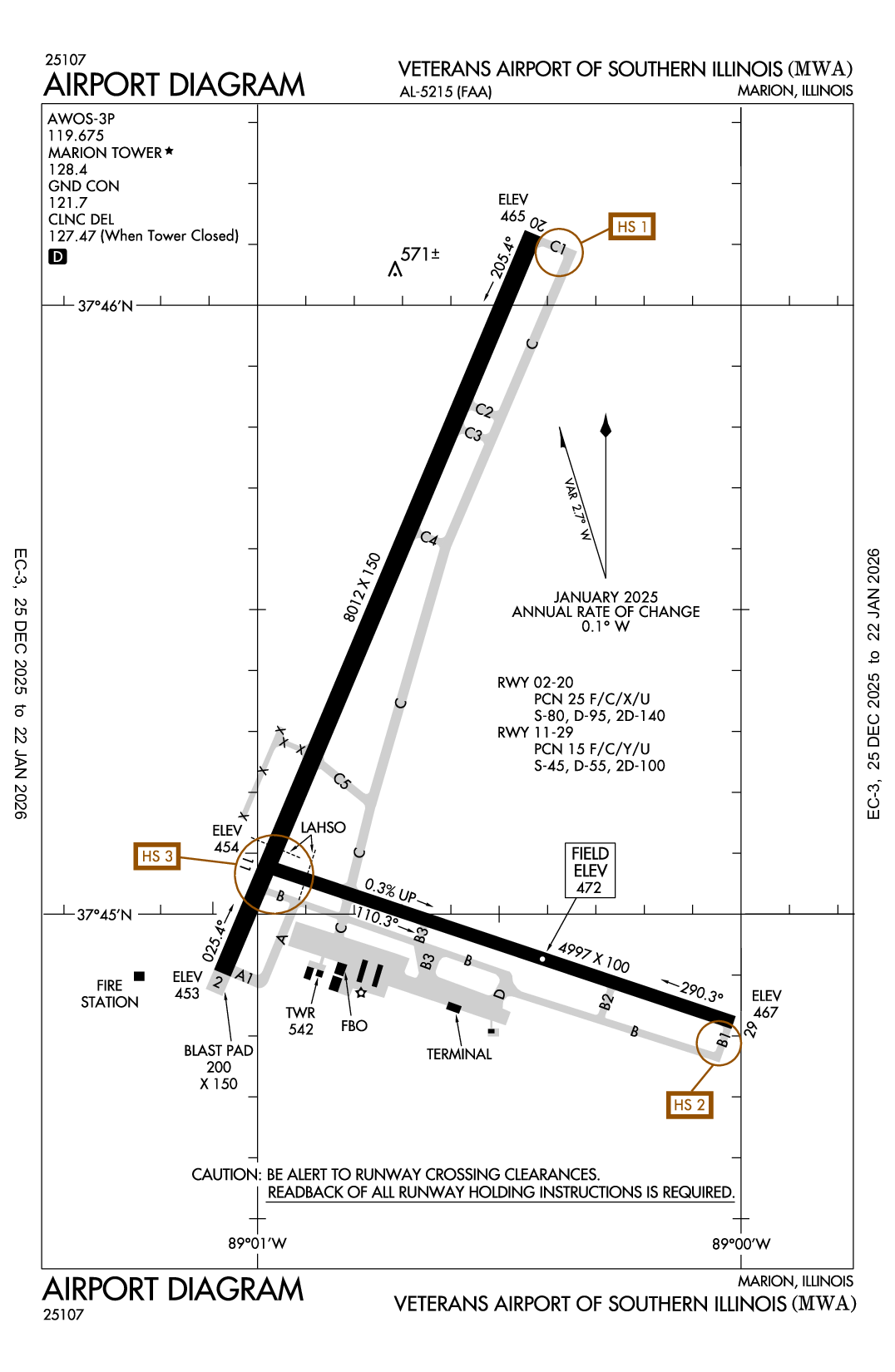

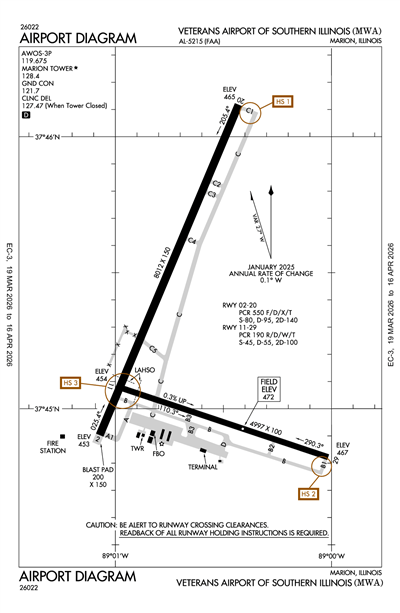

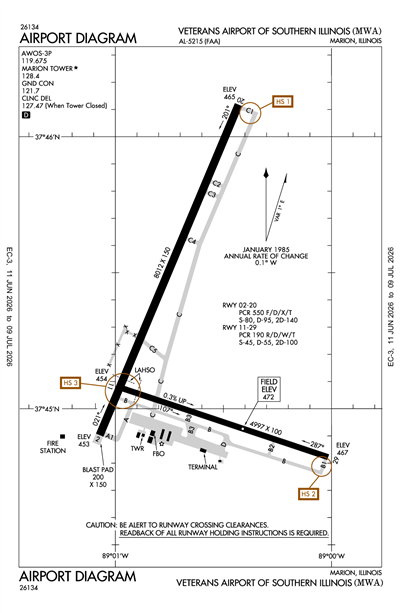

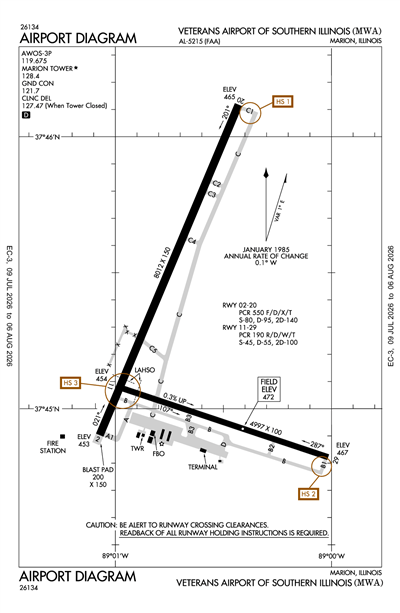

VETERANS AIRPORT OF SOUTHERN ILLINOIS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMWA
VETERANS AIRPORT OF SOUTHERN ILLINOIS
PublicPUB

4 miles W of MARION, IL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 45' 18"N 89° 00' 40"W
472' MSL
1472' MSL
01E
JET A, 100LL
SAINT LOUIS (STL)
ST LOUIS
KANSAS CITY (ZKC)
5/16/24-6/13/24
KMWA VFR
9:45 AM CDT
Clear
20sm
73°F
55°F
30.05"Hg
240° 5kts
KMWA 121445Z 24005KT 20SM CLR 23/13 A3005
Add Your Business

KMWA FBOs

Promote Listing
Midwest Aviation
UNICOM: 122.95
Phone: (618) 993-2764
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 6/5
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.12 5.25
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 128.4

AWOS-3PT

AWOS-3PT
618-942-8877
 119.675

Ground

GND/P
 121.7

Tower

LCL/P
 128.4

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMVN (35nm)
Wed, 6/12 6:39 AM CDT
Wed, 6/12 7:00 AM CDT - Thu, 6/13 7:00 AM CDT
VFR
7:00 AM CDT - 10:00 AM CDT
Few 25,000'
6sm
Calm
VFR
10:00 AM CDT - 7:00 PM CDT
Few 25,000'
6sm
190° 6kts
VFR
7:00 PM CDT - 7:00 AM CDT
Sky Clear
6sm
Calm
KMVN 121139Z 1212/1312 00000KT P6SM FEW250
   FM121500 19006KT P6SM FEW250
   FM130000 00000KT P6SM SKC
KMWA
Domestic
6/11/242321Z !MWA 06/005 MWA OBST TOWER LGT (ASR 1291796) 372530.90N0890852.10W (20.9NM SSW MWA) 870.4FT (267.7FT AGL) U/S 2406112321-2410092321
6/9/240437Z !MWA 06/003 MWA OBST TOWER LGT (ASR 1219813) 374344.50N0884744.40W (10.3NM E MWA) 754.6FT (259.8FT AGL) U/S 2406090437-2406240337
5/31/241621Z !MWA 05/025 MWA NAV ILS RWY 20 JONNY LOM U/S 2405311621-2408122000EST
5/28/240645Z !MWA 05/020 MWA OBST TOWER LGT (ASR 1009769) 373326.60N0890121.80W (11.9NM S MWA) 1131.9FT (291.0FT AGL) U/S 2405280645-2409250645
5/4/240135Z !MWA 05/002 MWA OBST TOWER LGT (ASR 1236884) 375109.30N0885607.40W (6.9NM NNE MWA) 767.1FT (310.0FT AGL) U/S 2405040135-2408010400
4/22/241914Z !MWA 04/025 MWA RWY 02 3000FT DIST REMAINING SIGN N SIDE LGT U/S 2404221914-2406302200
4/3/240638Z !MWA 04/003 MWA OBST TOWER LGT (ASR 1262584) 373612.40N0885428.50W (10.3NM SSE MWA) 917.0FT (313.0FT AGL) U/S 2404030638-2407020400
3/18/241818Z !MWA 03/012 MWA RWY 02 6000FT DIST REMAINING SIGN LGT U/S 2403181818-2412312200
3/4/242047Z !MWA 03/003 MWA RWY 29 RWY END ID LGT U/S 2403042047-2412312200
2/12/241931Z !MWA 02/004 MWA RWY 11 RWY END ID LGT U/S 2402121931-2412312200
4/29/221936Z !MWA 04/022 MWA RWY 02 RWY END ID LGT U/S 2204291936-2412311400
Yes
ALL
SVC AVBL 0700-1800; AFT HR - 618-993-2764.
WILLIAMSON COUNTY ARPT AUTH
10400 TERMINAL DR
MARION, IL 62959
Phone: 618-993-3353
DOUGLAS S KIMMEL
10400 TERMINAL DR; SUITE 200
MARION, IL 62959
Phone: 618-993-3353
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
MWA
--
ACTVT MALSR RWY 20; REIL RWY 11 & 29; PAPI RWY 02, 11 & 29; HIRL RWY 02/20; MIRL RWY 11/29 - CTAF. HIRL RWY 02/20 PRESET TO LOW INTST; INCR INTST - CTAF.
N/A
Yes - Lighted
Yes
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
18
4
1
1
0
0
Major
Major
None
None
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 02/20

8012 ft. x 150 ft.
ASPH
Good
PFC
HIGH
25 /F/C/X/U
80,000lbs
95,000lbs
140,000lbs
--
  Runway 02 Runway 20
True Heading 22°202°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 37° 44' 54"N 37° 46' 07"N
Longitude 89° 01' 05"W 89° 00' 26"W
Elevation 453' 465'
Threshold Crossing Height 36 ft. AGL --
Visual Glide Path Angle 3.5° --
Visual Slope Indicator P4L --
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 11/29

4997 ft. x 100 ft.
ASPH CONC
Excellent
GRVD
MED
15 /F/C/Y/U
45,000lbs
55,000lbs
100,000lbs
--
  Runway 11 Runway 29
True Heading 108°288°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 37° 45' 05"N 37° 44' 50"N
Longitude 89° 01' 00"W 89° 00' 01"W
Elevation 454' 467'
Threshold Crossing Height 26 ft. AGL 25 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1WATERFOWL & DEER ON & INVOF ARPT.
A110-4TWY E & E4 CLSD INDEF.
A110-5HELIPADS ARE LOCATED IN THE NE CORNER OF GA RAMP. HELIPADS ARE IN NON-MOVEMENT AREA.
VETERANS AIRPORT OF SOUTHERN ILLINOIS (ICAO: KMWA, IATA: MWA) is a public airport located in MARION, IL.
