» Sign In

KMZJ

PINAL AIRPARK

PublicPUB

7 miles NW of MARANA, AZ

View on Map

Status

Operational

Coordinates

32° 30' 35"N 111° 19' 31"W

Elevation

1893' MSL

Pattern Alt

2893' MSL

Mag Variation

12E

Fuel

JET A, 100LL

FSS

PRESCOTT (PRC)

Sectional

PHOENIX

ARTCC

ALBUQUERQUE (ZAB)

Data Effective

5/16/24-6/13/24

KMZJ VFR

8:55 PM MST RAW

Clear

Viz

10sm

Temp

88°F

Dew

23°F

Pres

29.88"Hg

Wind

290° 6kts

RMK

AO2

KMZJ 130355Z AUTO 29006KT 10SM CLR 31/M05 A2988 RMK AO2

Add Your Business

KMZJ FBOs

Promote Listing

Ascent Aviation Services

UNICOM: 123.05

Phone: (520) 682-4181

Other: (520) 940-4046

0 Reviews (Read | Sign In To Write)

EPIC

As of 6/11	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	6.95	7.50	7.60

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 123.05 CTAF 123.05

AWOS-3PT

520-682-3519

130.375

FAA A/FD Pages

FAA A/FD Page

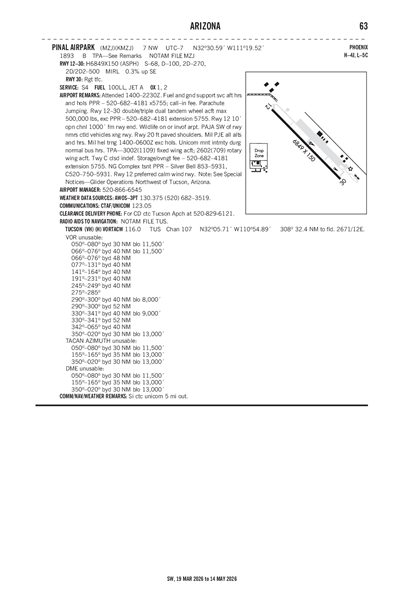

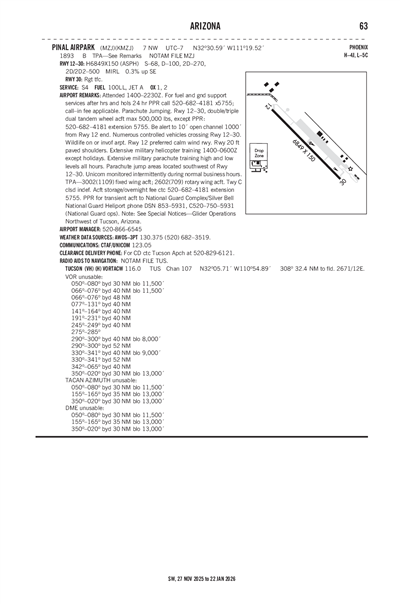

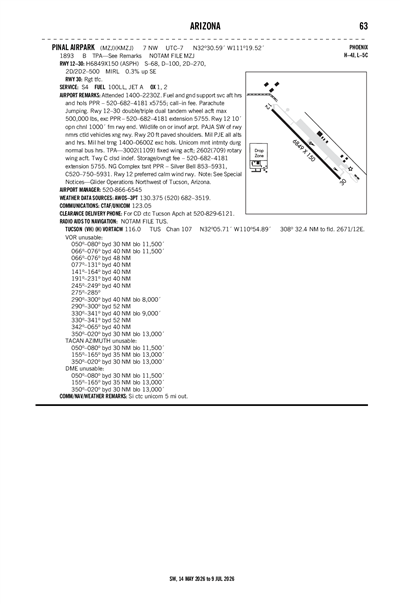

Airport Diagrams

No Documents

Airport Minimums

No Documents

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

No Documents

Terminal Area Forecast

KTUS (29nm)

RAW

Reported

Wed, 6/12 4:20 PM MST

Valid

Wed, 6/12 5:00 PM MST - Thu, 6/13 5:00 PM MST

VFR

5:00 PM MST - 8:00 PM MST

Sky Clear

Viz

6sm

Wind

310° 8kts

Gusts 15kts

VFR

8:00 PM MST - 12:00 AM MST

Sky Clear

Viz

6sm

Wind

260° 7kts

VFR

12:00 AM MST - 12:00 PM MST

Scattered 20,000'

Viz

6sm

Wind

150° 4kts

VFR

12:00 PM MST - 5:00 PM MST

Scattered 20,000'

Viz

6sm

Wind

320° 9kts

KTUS 122320Z 1300/1324 31008G15KT P6SM SKC
   FM130300 26007KT P6SM SKC
   FM130700 15004KT P6SM SCT200
   FM131900 32009KT P6SM SCT200

KMZJ

Domestic
4/16/240500Z	!MZJ 04/008 MZJ AIRSPACE SEE ZAB 01/208 PJE 2404160500-2601190500

ATC Tower

Attendance

0700-1530

Owner

PINAL COUNTY
31 NORTH PINAL
FLORENCE, AZ 85232
Phone: 520-382-8052

Manager

JIM PETTY
P.O. BOX 727, BOX #91
FLORENCE, AZ 85132
Phone: 520-866-6545

FSS

PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF

NOTAM

MZJ

Light Schedule

Lights

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

High & Low Pressure

Other Services

None

Runway 12/30

Dimensions

6849 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

68,000lbs

Double Wheel

100,000lbs

Double Tandem

270,000lbs

Dual Dbl Tand

500,000lbs

	Runway 12	Runway 30
True Heading	135°	315°
Traffic Pattern	Left	Right
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	32° 30' 59"N	32° 30' 12"N
Longitude	111° 19' 60"W	111° 19' 03"W
Elevation	1,875'	1,893'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	No

A110-1	NUMEROUS CONTROLLED VEHICLES CROSSING RWY 12/30.
A110-10	RWY 12 PREFERRED CALM WIND RWY.
A110-11	RSTD: PPR FOR TRAN ACFT TO NATIONAL GUARD COMPLEX/SILVER BELL NGHP PHONE DSN 853-5931, C520-750-5931.
A110-12	TWY C CLSD INDEFLY.
A110-13	AWOS FREQ-130.375, PHONE:520-682-3519. OPERATED BY PARACHUTE JUMP SCHOOL.
A110-14	WILDLIFE ON OR INVOF ARPT.
A110-16	FOR CD CTC TUCSON APCH AT 520-829-6121.
A110-3	EXTENSIVE MILITARY HELICOPTER TRAINING 0700-2300 EXCEPT HOLIDAYS.
A110-4	BE ALERT TO 10 FT OPEN CHANNEL AT 1000 FT FM RWY 12 END.
A110-5	EXTENSIVE MILITARY PARACHUTE TRAINING HIGH & LOW LEVELS ALL HOURS. PARACHUTE JUMP AREA LCTD SW OF RWY 12/30.
A110-7	STRAIGHT-IN ARRIVALS CONTACT UNICOM WHEN 5 MI OUT.
A110-9	ACFT STORAGE/OVERNIGHT FEE CTC 520-682-4181 EXTN 5755.

PINAL AIRPARK (ICAO: KMZJ, IATA: MZJ) is a public airport located in MARANA, AZ.
