KOEO

L O SIMENSTAD MUNI

PublicPUB

0 miles SE of OSCEOLA, WI

View on Map

Status

Operational

Coordinates

45° 18' 34"N 92° 41' 24"W

Elevation

906' MSL

Pattern Alt

1906' MSL

Mag Variation

01E

Fuel

JET A (FSII), 100LL

FSS

GREEN BAY (GRB)

Sectional

GREEN BAY

ARTCC

MINNEAPOLIS (ZMP)

Data Effective

5/16/24-6/13/24

KOEO VFR

10:55 PM CDT RAW

Overcast 9,000'

Viz

7sm

Temp

62°F

Dew

62°F

Pres

30.07"Hg

Wind

Calm

RMK

AO2 P0003 T01660166 PWINO

KOEO 010355Z AUTO 00000KT 7SM OVC090 17/17 A3007 RMK AO2 P0003 T01660166 PWINO

Add Your Business

KOEO FBOs

Promote Listing

Osceola AeroSport

UNICOM: 122.9

Phone: (715) 294-4500

Other: (715) 417-2610

0 Reviews (Read | Sign In To Write)

Independent

As of 5/28	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.39
Full Serve			5.90

Fuel Notes

Prices include tax

Promote Listing

Osceola AeroSport

UNICOM: 122.9

Phone: (715) 294-4500

0 Reviews (Read | Sign In To Write)

Independent

As of 5/28	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.39
Full Serve			5.90

Fuel Notes

Prices include tax

Your Information

Business

UNICOM -- CTAF 122.9

AWOS-3

715-294-3845

119.925

FAA A/FD Pages

FAA A/FD Page

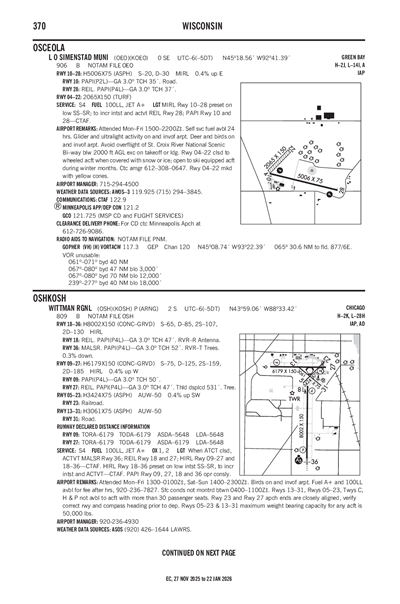

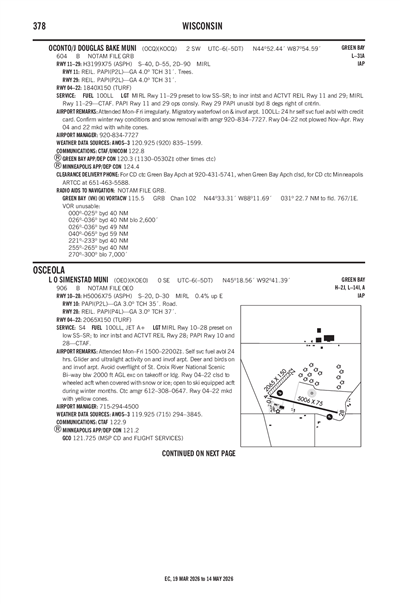

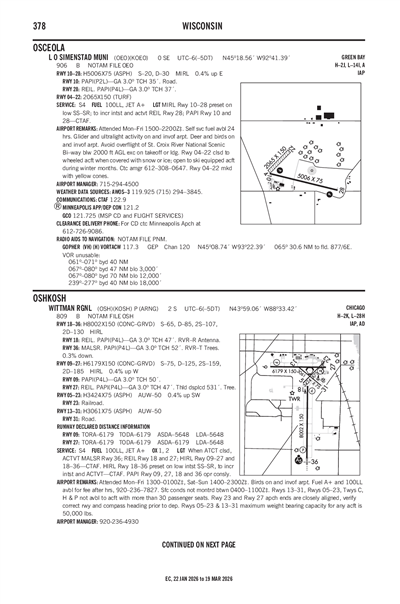

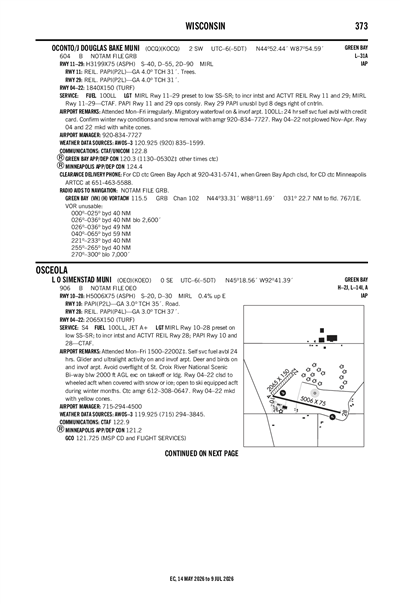

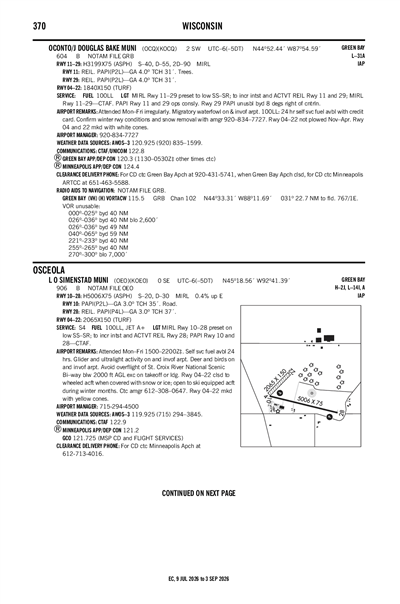

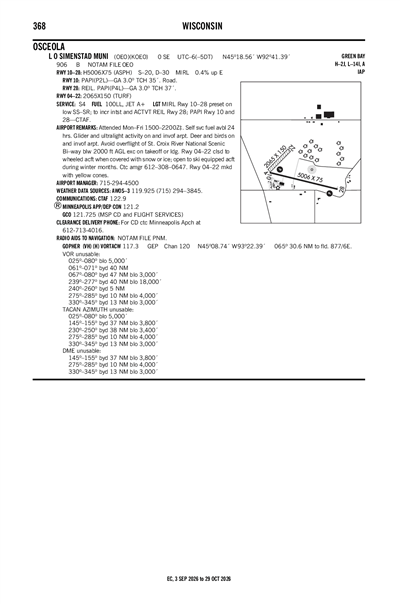

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KRNH (12nm)

RAW

Reported

Fri, 5/31 6:20 PM CDT

Valid

Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT

MVFR

7:00 PM CDT - 10:00 PM CDT

Light Showers and Rain and Thunderstorm in vicinity

Overcast 2,500'

Viz

5sm

Wind

VRB° 3kts

MVFR

10:00 PM CDT - 5:00 AM CDT

Light Showers and Rain and Mist

Overcast 2,500'

Viz

5sm

Wind

170° 4kts

MVFR

5:00 AM CDT - 1:00 PM CDT

Mist

Overcast 1,500'

Viz

5sm

Wind

VRB° 3kts

VFR

1:00 PM CDT - 7:00 PM CDT

Scattered 2,500'

Viz

6sm

Wind

270° 5kts

KRNH 312320Z 0100/0124 VRB03KT 5SM -SHRA VCTS OVC025CB
   FM010300 17004KT 5SM -SHRA BR OVC025
   FM011000 VRB03KT 5SM BR OVC015
   FM011800 27005KT P6SM SCT025

KOEO

Domestic
5/22/240433Z	!OEO 05/005 OEO OBST TOWER LGT (ASR 1292916) 452410.50N0923311.40W (8.1NM NE OEO) 1434.1FT (250.0FT AGL) U/S 2405220433-2406060333
8/28/231944Z	!OEO 08/019 OEO RWY 22 DECLARED DIST: TORA 2000FT TODA 2000FT ASDA 2000FT LDA 2000FT. 2308281944-2408282359
8/28/231918Z	!OEO 08/018 OEO RWY 04 THR DISPLACED 194FT NONPRECISION MARKING. DECLARED DIST: TORA 2000FT TODA 2000FT ASDA 2000FT LDA 2000FT. 2308281918-2408282359

ATC Tower

Attendance

MON-FRI 0900-1600

Owner

VILLAGE OF OSCEOLA
PO BOX 217
OSCEOLA, WI 54020
Phone: 715-294-3498

Manager

RICHARD JOHNSON
PO BOX 643
OSCEOLA, WI 54020
Phone: 715-294-4500

FSS

GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF

NOTAM

OEO

Light Schedule

Lights

MIRL RWY 10/28 PRESET TO LOW SS-SR; TO INCR INTST AND ACTVT REIL RWY 28; PAPI RWY 10 & 28 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Pilot Instruction
Aircraft Rental

Runway 04/22

Dimensions

2192 ft. x 150 ft.

Surface Type

TURF

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 04	Runway 22
True Heading	45°	225°
Traffic Pattern	Left	Left
Markings	NONE	NONE
Markings Condition
Latitude	45° 18' 35"N	45° 18' 51"N
Longitude	92° 41' 53"W	92° 41' 32"W
Elevation	883'	881'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	No

Runway 10/28

Dimensions

5006 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

20,000lbs

Double Wheel

30,000lbs

Double Tandem

Dual Dbl Tand

	Runway 10	Runway 28
True Heading	104°	284°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	45° 18' 35"N	45° 18' 24"N
Longitude	92° 41' 51"W	92° 40' 43"W
Elevation	884'	906'
Threshold Crossing Height	35 ft. AGL	37 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P4L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	Yes

A110-1	RWY 04/22 CLSD TO WHEELED ACFT WHEN COVERED WITH SNOW OR ICE; OPEN TO SKI EQUIPPED ACFT WINTER MONTHS. CTC AMGR 612-308-0647.
A110-11	GLIDER & ULTRALIGHT ACTIVITY ON & INVOF ARPT.
A110-12	DEER & BIRDS ON & INVOF ARPT.
A110-13	FOR CD CTC MINNEAPOLIS APCH AT 612-726-9086.
A110-7	GCO AVBL ON FREQ 121.725 MSP CD & FLT SVCS.
A110-8	AVOID OVERFLIGHT OF ST CROIX RIVER NATIONAL SCENIC BI-WAY BLW 2000 FT AGL EXC ON TAKEOFF OR LDG.

L O SIMENSTAD MUNI (ICAO: KOEO, IATA: OEO) is a public airport located in OSCEOLA, WI.
