KONA
WINONA MUNI-MAX CONRAD FLD
PublicPUB

3 miles NW of WINONA, MN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
44° 04' 47"N 91° 42' 42"W
656' MSL
1656' MSL
01W
JET A, 100LL
PRINCETON (PNM)
GREEN BAY
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KONA VFR
12:15 AM CDT
Scattered 8,500'
Scattered 8,000'
10sm
61°F
59°F
30.02"Hg
310° 3kts
AO2
KONA 010515Z AUTO 31003KT 10SM SCT080 SCT085 16/15 A3002 RMK AO2
Add Your Business

KONA FBOs

Promote Listing
Win Air
UNICOM: 122.8
Phone: (507) 452-2220
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/29
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.39 6.49
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
507-453-2991
 118.075

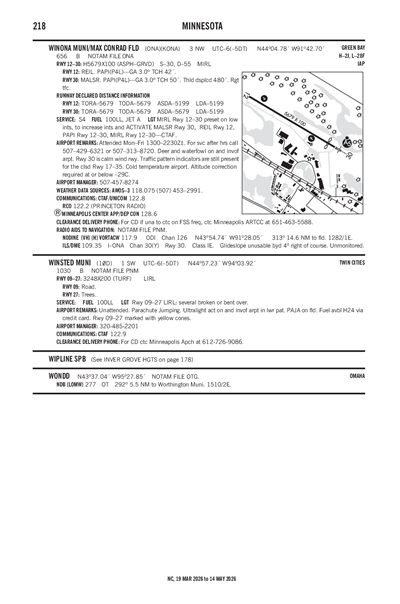

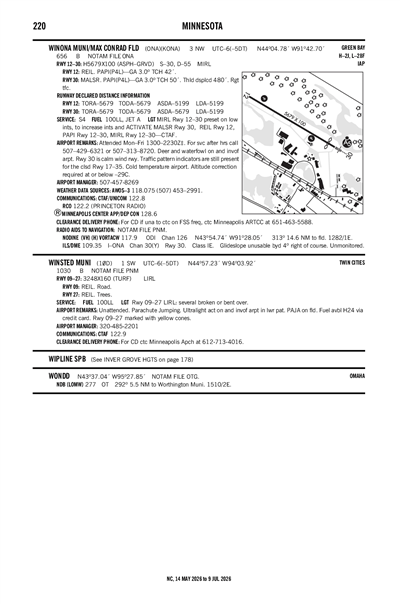

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KLSE (23nm)
Sat, 6/1 12:20 AM CDT
Sat, 6/1 1:00 AM CDT - Sun, 6/2 1:00 AM CDT
VFR
1:00 AM CDT - 5:00 AM CDT
Broken 15,000'
6sm
VRB° 4kts
VFR
5:00 AM CDT - 10:00 AM CDT
Light Showers and Rain
Broken 7,000'
6sm
VRB° 4kts
MVFR
10:00 AM CDT - 4:00 PM CDT
Showers in vicinity
Broken 2,500'
6sm
VRB° 4kts
VFR
4:00 PM CDT - 9:00 PM CDT
Scattered 3,000'
6sm
250° 6kts
VFR
9:00 PM CDT - 1:00 AM CDT
Scattered 5,000'
6sm
VRB° 4kts
KLSE 010520Z 0106/0206 VRB04KT P6SM BKN150
   FM011000 VRB04KT P6SM -SHRA BKN070
   FM011500 VRB04KT P6SM VCSH BKN025
   FM012100 25006KT P6SM SCT030
   FM020200 VRB04KT P6SM SCT050
KONA
Domestic
5/25/241019Z !ONA 05/028 ONA OBST TOWER LGT (ASR 1231519) 442157.10N0920111.10W (21.7NM NW ONA) 992.1FT (290.0FT AGL) U/S 2405251019-2406091019
5/18/242044Z !ONA 05/014 ONA OBST TOWER LGT (ASR 1278122) 441816.40N0915407.40W (15.8NM NNW ONA) 1531.2FT (309.1FT AGL) U/S 2405182044-2408311159
5/11/240512Z !ONA 05/012 ONA OBST TOWER LGT (ASR 1256720) 441527.70N0915220.20W (12.7NM NNW ONA) 983.9FT (294.9FT AGL) U/S 2405110512-2407152359
5/8/241820Z !ONA 05/008 ONA RWY 30 PAPI U/S 2405081820-2411082111EST
5/8/241144Z !ONA 05/005 ONA OBST TOWER LGT (ASR 1316656) 441444.19N0920335.81W (18.0NM NW ONA) 1501FT (312FT AGL) U/S 2405081144-2406221143
5/6/241000Z !ONA 05/002 ONA AIRSPACE SEE ZMP 05/055 UAS DLY 1000-0300 2405061000-2411010300
7/27/230751Z !ONA 07/007 ONA NAV ILS RWY 30 DME U/S 2307270751-2407262000EST
FDC
11/17/231736Z !FDC 3/3598 ONA IAP WINONA MUNI-MAX CONRAD FLD, WINONA, MN.
ILS Z OR LOC Z RWY 30, ORIG-C...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
ONA DME OUT OF SERVICE. 2311171736-2406281736EST
No
MON-FRI 0700-1630
CITY OF WINONA
BOX 378
WINONA, MN 55987
Phone: 507-457-8274
BRIAN DEFRANG
BOX 378
WINONA, MN 55987
Phone: 507-457-8274
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
ONA
--
MIRL RY 12/30 PRESET ON LOW INTST, TO INCR INTST & ACTVT MALSR RY 30; REIL RY 12; PAPI RY 12/30; MIRL RY 12/30 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
27
2
0
0
0
0
Major
Major
None
None
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 12/30

5679 ft. x 100 ft.
ASPH
Good
GRVD
MED

30,000lbs
55,000lbs
--
--
  Runway 12 Runway 30
True Heading 119°299°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 44° 05' 00"N 44° 04' 33"N
Longitude 91° 43' 16"W 91° 42' 08"W
Elevation 656' 656'
Threshold Crossing Height 42 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes No
A110-1DEER AND WATERFOWL ON AND INVOF ARPT.
A110-2FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
WINONA MUNI-MAX CONRAD FLD (ICAO: KONA, IATA: ONA) is a public airport located in WINONA, MN.
