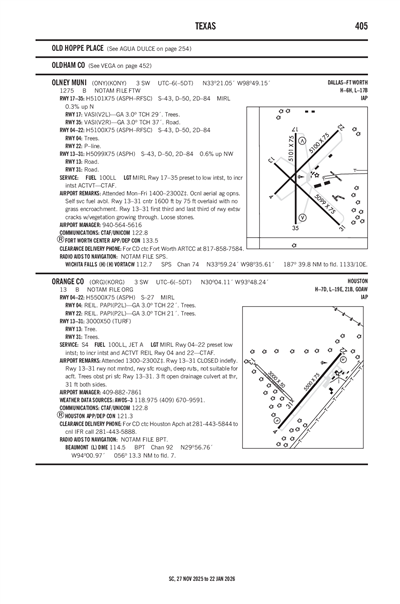

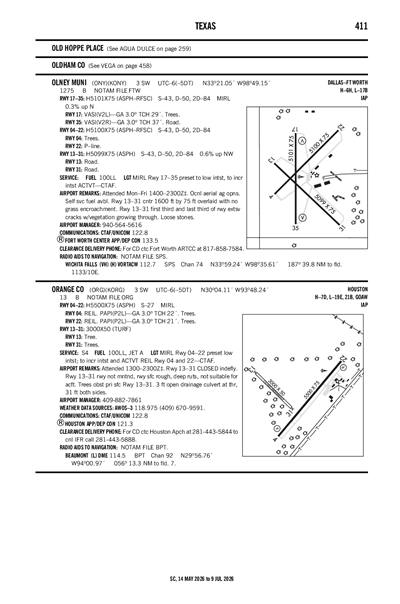

OLNEY MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KONY
OLNEY MUNI
PublicPUB

3 miles SW of OLNEY, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 21' 03"N 98° 49' 09"W
1275' MSL
2275' MSL
05E
100LL
FORT WORTH (FTW)
DALLAS-FT WORTH
FORT WORTH (ZFW)
5/16/24-6/13/24
KRPH (20nm) VFR
11:15 PM CDT
Clear
10sm
72°F
68°F
29.93"Hg
100° 3kts
AO2 T02200199
KRPH 010415Z AUTO 10003KT 10SM CLR 22/20 A2993 RMK AO2 T02200199
Add Your Business

KONY FBOs

Promote Listing
Olney Municipal Airport
UNICOM: 122.8
Phone: (940) 564-2102
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/8
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.50
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSPS (41nm)
Fri, 5/31 6:20 PM CDT
Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT
VFR
7:00 PM CDT - 5:00 AM CDT
Broken 15,000'
Scattered 3,500'
6sm
040° 5kts
MVFR
5:00 AM CDT - 1:00 PM CDT
Broken 3,000'
6sm
200° 7kts
VFR
1:00 PM CDT - 7:00 PM CDT
Broken 25,000'
6sm
170° 8kts
KSPS 312320Z 0100/0124 04005KT P6SM SCT035 BKN150
   FM011000 20007KT P6SM BKN030
   FM011800 17008KT P6SM BKN250
KONY
Domestic
5/2/241235Z !FTW 05/077 ONY OBST TOWER LGT (ASR 1052272) 331052.20N0985114.50W (10.3NM S ONY) 1672.6FT (494.8FT AGL) U/S 2405021235-2407310400
No
M-F 0800-1700
CITY OF OLNEY
201 EAST MAIN
OLNEY, TX 76374
Phone: 940-564-2102
JIM HIRSCH
PO BOX 485, 1524 LELAND SNOW WAY
OLNEY, TX 76374
Phone: 940-564-5616
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
FTW
--
MIRL RWY 17/35 PRESET TO LOW INTST, TO INCR INTST ACTV - CTAF.
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
11
0
0
0
0
0
None
None
None
None
Crop Dusting

Runway 04/22

5100 ft. x 75 ft.
ASPH
Good
RFSC


43,000lbs
50,000lbs
84,000lbs
--
  Runway 04 Runway 22
True Heading 45°225°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 33° 20' 54"N 33° 21' 29"N
Longitude 98° 49' 28"W 98° 48' 46"W
Elevation 1,264' 1,269'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

5099 ft. x 75 ft.
ASPH
L
NONE


43,000lbs
50,000lbs
84,000lbs
--
  Runway 13 Runway 31
True Heading 135°315°
Traffic Pattern Left Left
Markings NRS NRS
Markings Condition POOR POOR
Latitude 33° 21' 13"N 33° 20' 37"N
Longitude 98° 49' 28"W 98° 48' 46"W
Elevation 1,271' 1,242'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

5101 ft. x 75 ft.
ASPH
Fair
RFSC
MED

43,000lbs
50,000lbs
84,000lbs
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 33° 21' 28"N 33° 20' 38"N
Longitude 98° 49' 13"W 98° 49' 13"W
Elevation 1,275' 1,261'
Threshold Crossing Height 29 ft. AGL 37 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V2L V2R
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1OCNL AERIAL AG OPNS
A110-4RWY 13/31 CNTR 1600 FT BY 75 FT OVERLAID WITH NO GRASS ENCROACHMENT.
A110-6FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
OLNEY MUNI (ICAO: KONY, IATA: ONY) is a public airport located in OLNEY, TX.
