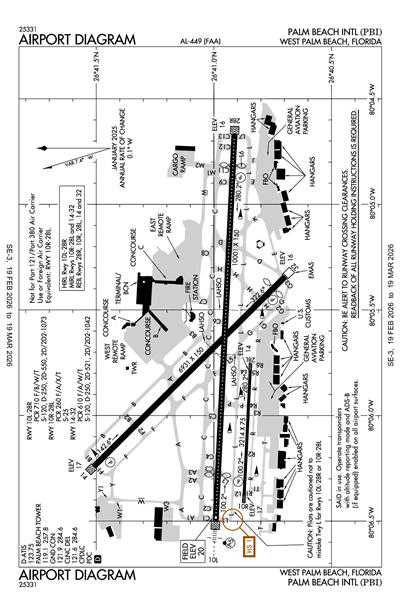

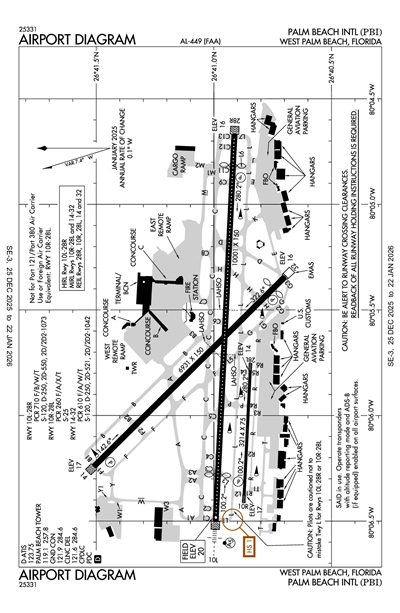

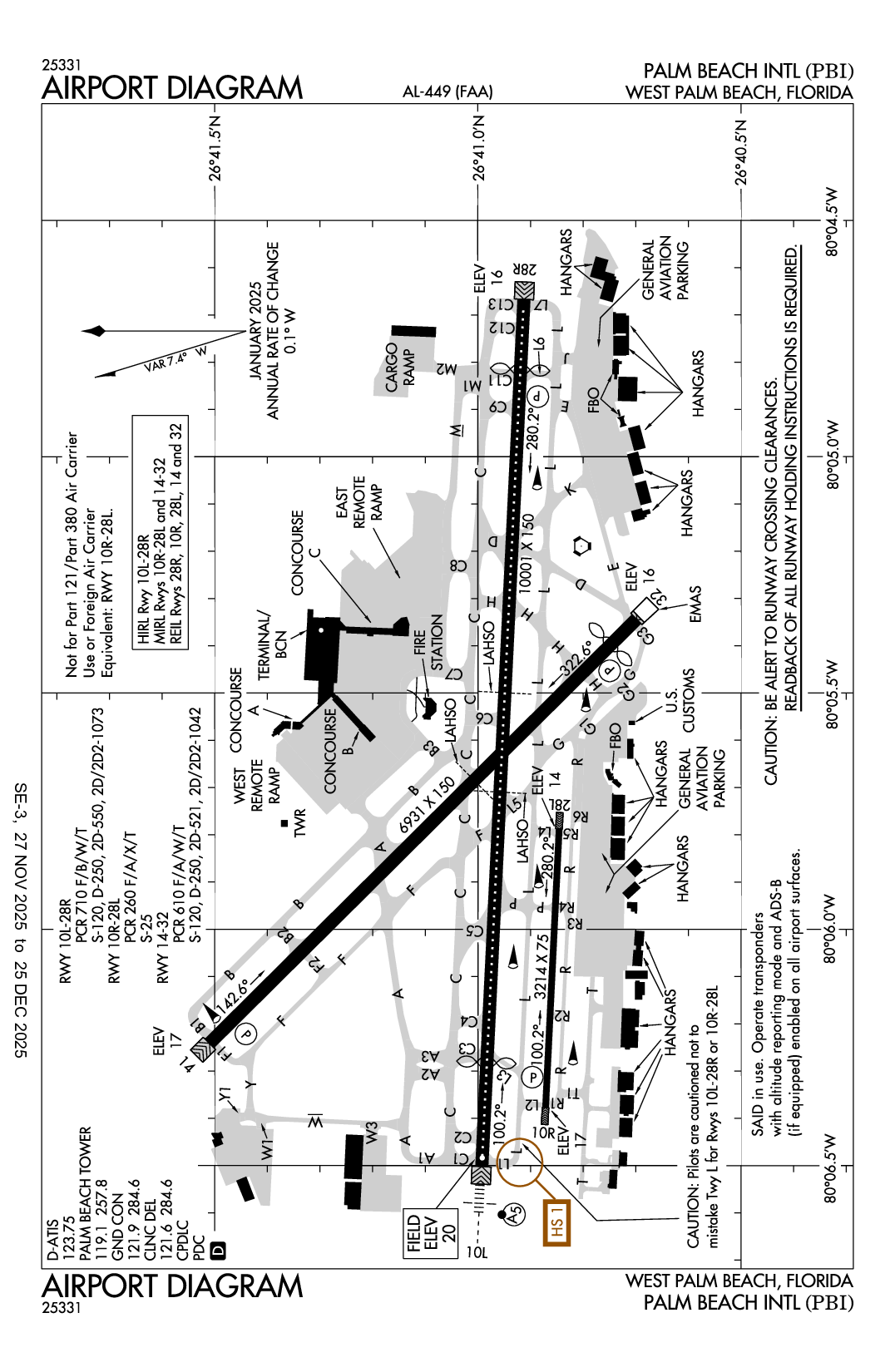

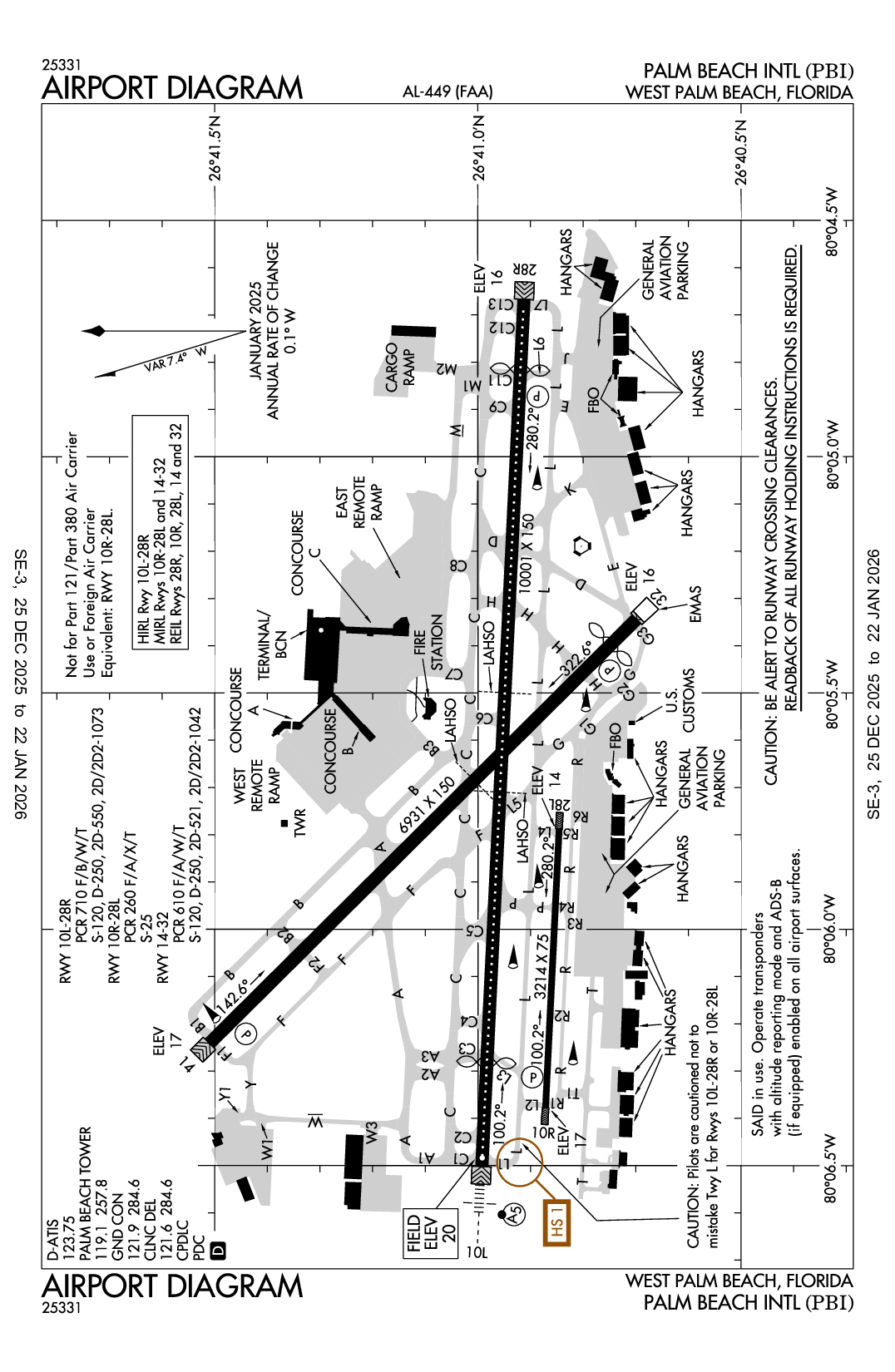

PALM BEACH INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPBI
PALM BEACH INTL
PublicPUB

3 miles W of WEST PALM BEACH, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
26° 40' 59"N 80° 05' 44"W
20' MSL
1020' MSL
06W
JET A, 100LL
MIAMI (MIA)
MIAMI
MIAMI (ZMA)
5/16/24-6/13/24
KPBI VFR
10:53 PM EDT
Few 25,000'
Few 4,000'
10sm
81°F
65°F
30.13"Hg
050° 9kts
Gusts 19kts
AO2 SLP201 T02720183 51018
KPBI 010253Z 05009G19KT 10SM FEW040 FEW250 27/18 A3013 RMK AO2 SLP201 T02720183 51018
Add Your Business

KPBI FBOs

Promote Listing
Atlantic Aviation
UNICOM: 131.425
Phone: (561) 683-4121
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/26
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 10.35 8.92
Fuel Notes
Prices include tax
Promote Listing
Signature Aviation
UNICOM: 128.975
Phone: (561) 478-8700
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/31
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 11.50 8.92
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

D-ATIS
 123.75

ASOS

ASOS
561-683-2548
 123.75

Approach/Departure

APCH/P DEP/P
SOUTH
 125.2
APCH/P DEP/P IC
 128.3

Clearance Delivery

CD/P
 121.6

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 119.1
LCL/S
 118.75

Other

CLASS C
SOUTH
 125.2
CLASS C
NORTH
 128.3
CLMNT STAR
 124.6
CPTAN STAR
 124.6
JESTR STAR
 124.6
MAHHI STAR
 127.35
MELBOURNE STAR
 124.6
MIXAE DP
RWY 10L, 14
 127.35
MIXAE DP
RWY 28R, 32
 128.3
OLAKE DP
 128.3
PALM BEACH DP
SOUTH
 127.35
PALM BEACH DP
NORTH
 128.3
SLIDZ DP
 128.3
STOOP STAR
 124.6
TBIRD DP
 128.3
TTYLR STAR
 125.2
VUUDU STAR
 127.35
WELLY DP
 127.35

Terminal Area Forecast

KPBI
Fri, 5/31 11:03 PM EDT
Fri, 5/31 11:00 PM EDT - Sat, 6/1 8:00 PM EDT
VFR
11:00 PM EDT - 11:00 AM EDT
Few 4,000'
6sm
050° 10kts
Gusts 18kts
VFR
11:00 AM EDT - 2:00 PM EDT
Showers in vicinity
Scattered 5,000'
Scattered 3,000'
6sm
070° 15kts
Gusts 24kts
VFR
2:00 PM EDT - 8:00 PM EDT
Thunderstorm in vicinity
Broken 5,000'
Scattered 2,500'
6sm
070° 15kts
Gusts 24kts
KPBI 010303Z 0103/0124 05010G18KT P6SM FEW040
   FM011500 07015G24KT P6SM VCSH SCT030 SCT050
   FM011800 07015G24KT P6SM VCTS SCT025CB BKN050
KPBI
Domestic
6/1/240359Z !PBI 05/103 PBI AIRSPACE SEE FDC 4/9417 ZMA 99.7 SECURITY 2406010359-2506010359
5/30/241304Z !PBI 05/116 PBI TWY B BTN TWY A AND APCH END RWY 14 CLSD 2405301304-2406302100
5/30/241301Z !PBI 05/115 PBI TWY B1 CLSD 2405301301-2406302100
5/27/241517Z !PBI 05/104 PBI TWY F SFC PAINTED HLDG PSN SIGNS FOR APCH END RWY 32 NOT STD 2405271517-2409302200
5/20/241110Z !PBI 05/088 PBI TWY B BTN TWY A AND TWY B3 CLSD 2405201110-2406152100
5/20/241100Z !PBI 05/081 PBI APRON CONCOURSE B RAMP BTN TWY B3 AND TWY A CLSD TO ACFT WITH WINGSPAN MORE THAN 118FT 2405201100-2406152100
5/19/241205Z !PBI 05/080 PBI TWY B2 NOW TWY B3 2405191205-2409052100
4/30/242335Z !PBI 04/138 PBI OBST TOWER LGT (ASR 1031315) 264543.20N0800441.20W (4.8NM NE PBI) 536.1FT (519.0FT AGL) U/S 2404302335-2407290400
4/18/241657Z !PBI 04/090 PBI TWY M1 SAFETY AREA NOT STD WEST SIDE 2404181657-2410012100
3/5/242018Z !PBI 03/016 PBI TWY B ENHANCED CL NON STD AT RWY 14/32 2403052018-2406052300
2/11/241213Z !PBI 02/055 PBI APRON CONCOURSE B RAMP BTN GATE B3 AND B1 CLSD TO ACFT WINGSPAN MORE THAN 118FT 2402111213-2409062200
1/5/241131Z !PBI 01/011 PBI COM REMOTE COM OUTLET 115.7 U/S 2401051131-2408012000EST
12/20/230000Z !PBI 12/074 PBI AIRSPACE UAS WI AN AREA DEFINED AS 2NM RADIUS OF
263628.30N0801322.60W (7.5NM WNW LNA) SFC-400FT AGL DLY 0000-2359
2312200000-2412182359
10/2/231113Z !PBI 09/124 PBI AIRSPACE UAS WI AN AREA DEFINED AS 2NM RADIUS OF
265557.40N0800706.90W (7.6NM NE F45) SFC-400FT AGL DLY SR-SS
2310021113-2409282309
9/27/231112Z !PBI 09/102 PBI AIRSPACE UAS WI AN AREA DEFINED AS 2NM RADIUS OF
264036.50N0801751.10W (10.9NM W PBI) SFC-400FT AGL DLY SR-SS
2309271112-2409252313
9/27/231111Z !PBI 09/105 PBI AIRSPACE UAS WI AN AREA DEFINED AS 2NM RADIUS OF
264558.80N0800542.60W (5.0NM N PBI) SFC-400FT AGL DLY SR-SS
2309271111-2409252313
9/27/231111Z !PBI 09/104 PBI AIRSPACE UAS WI AN AREA DEFINED AS 2NM RADIUS OF
265135.60N0800335.30W (8.8NM E F45) SFC-400FT AGL DLY SR-SS
2309271111-2409252312
9/27/231111Z !PBI 09/103 PBI AIRSPACE UAS WI AN AREA DEFINED AS 2NM RADIUS OF
264030.70N0801314.80W (6.7NM W PBI) SFC-400FT AGL DLY SR-SS
2309271111-2409252313
6/21/231027Z !PBI 06/093 PBI AIRSPACE UAS WI AN AREA DEFINED AS 2NM RADIUS OF
264716.50N0800652.10W (6.3NM N PBI) SFC-400FT AGL DLY SR-SS
2306211027-2406190017
FDC
5/9/241141Z !FDC 4/1550 PBI ODP PALM BEACH INTL, WEST PALM BEACH, FL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
TAKEOFF MINIMUMS: RWY 10L, STANDARD WITH MINIMUM CLIMB OF 241FT PER NM TO 700 (2024-ASO-3288-OE). RWY 10R, STANDARD WITH MINIMUM CLIMB OF 212FT PER NM TO 700 (2024-ASO-3288-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2405091141-2508281141EST
5/8/241759Z !FDC 4/1020 PBI IAP PALM BEACH INTL, WEST PALM BEACH, FL.
ILS OR LOC RWY 28R, AMDT 4A...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
PBI VORTAC OUT OF SERVICE. 2405081759-2407241759EST
5/8/241759Z !FDC 4/1018 PBI IAP PALM BEACH INTL, WEST PALM BEACH, FL.
ILS OR LOC RWY 10L, AMDT 28...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
PBI VORTAC OUT OF SERVICE. 2405081759-2407241759EST
4/3/241924Z !FDC 4/6359 PBI IAP PALM BEACH INTL, WEST PALM BEACH, FL.
ILS OR LOC RWY 10L, AMDT 28...
ILS OR LOC RWY 28R, AMDT 4A...
RNAV (GPS) Y RWY 10L, AMDT 4...
RNAV (GPS) Y RWY 14, AMDT 4A...
RNAV (GPS) Y RWY 28R, AMDT 3A...
RNAV (GPS) Y RWY 32, AMDT 3...
CIRCLING MDA CAT C/D 820/HAA 800. TEMPORARY CRANE 503 MSL 2.2 NM NE OF RWY 28R (2024-ASO-3288-OE).
2404031924-2508281924EST
7/12/231330Z !FDC 3/4991 PBI STAR PALM BEACH INTL ARPT, WEST PALM BEACH, FL.
TTYLR THREE ARRIVAL..PIE TRANSITION: REMOVE RESTRICTION AT 3000.
2307121330-2407110900
12/8/221356Z !FDC 2/1854 PBI IAP PALM BEACH INTL, WEST PALM BEACH, FL.
RNAV (RNP) Z RWY 32, AMDT 2...
PLANVIEW NOTE: PROCEDURE NA FOR ARRIVALS AT BEKAH.
2212081356-2412081356EST
Yes
ALL
PALM BEACH COUNTY
846 PALM BEACH INTL AIRPORT
WEST PALM BEACH, FL 33406
Phone: 561-471-7420
LAURA BEEBE
846 PALM BEACH INTL AIRPORT
WEST PALM BEACH, FL 33406
Phone: 561-471-7420
MIAMI FSS (MIA)
Toll Free: 1-800-WX-BRIEF
PBI
Sunset to Sunrise
--
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
Airport of Entry
6
8
171
11
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 10L/28R

10001 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
93 /F/B/W/T
120,000lbs
175,000lbs
550,000lbs
840,000lbs
  Runway 10L Runway 28R
True Heading 93°273°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 26° 40' 60"N 26° 40' 55"N
Longitude 80° 06' 30"W 80° 04' 40"W
Elevation 20' 16'
Threshold Crossing Height 68 ft. AGL 70 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights Yes

Runway 10R/28L

3214 ft. x 75 ft.
ASPH
Good
NONE
MED
44 /F/A/X/T
25,000lbs
--
--
--
  Runway 10R Runway 28L
True Heading 93°273°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 26° 40' 52"N 26° 40' 51"N
Longitude 80° 06' 23"W 80° 05' 47"W
Elevation 17' 14'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 14/32

6931 ft. x 150 ft.
ASPH
Fair
GRVD
MED
67 /F/A/W/T
100,000lbs
180,000lbs
325,000lbs
400,000lbs
  Runway 14 Runway 32
True Heading 135°315°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 26° 41' 31"N 26° 40' 42"N
Longitude 80° 06' 14"W 80° 05' 21"W
Elevation 17' 16'
Threshold Crossing Height 66 ft. AGL 57 ft. AGL
Visual Glide Path Angle 3° 3.25°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1MIGRATORY BIRDS ON AND INVOF ARPT.
A110-10BE ALERT: TWY L IS LCTD BTWN RYS 10L/28R & 10R/28L. TWY L IS WIDER AND LONGER THAN RY 10R/28L - DO NOT CONFUSE TWY L FOR RY. AIRCRAFT WITH WINGSPAN OF 118 FT OR GREATER IS PROHIBITED ON TWY L.
A110-1324 HR PPR FOR ACFT WITH WINGSPANS GTR THAN 171 FT.
A110-14ACFT WITH WINGSPANS GTR THAN 118 FT MAY NOT OPR ON TWY E, TWY W, TWY Y AND TWY F NW OF TWY A.
A110-15RWY 14/32 SAFETY AREA NOT STD SFC VARNS.
A110-16RWY 10L/28R SAFETY AREA NOT STD SFC VARNS.
A110-17ACFT WITH WINGSPANS GTR THAN 49 MAY NOT OPER SIMUL ON RWY 10R/28L AND TWY R.
A110-18RWY 10L/28R SAFETY AREA NOT STD SFC VARNS.
A110-2NOISE ABATEMENT PROCEDURES IN EFFECT. MULTIENGINE FLIGHT TRAINING PROHIBITED SS TO SR SUN AND HOLIDAY; STRICT ENVIRONMENTAL OPERATING STAGE 2 ACFT 0300-1200Z CALL NOISE ABATEMENT OFFICER 561-471-7467.
A110-5BE ALERT; RYS 28L & 28R THLDS STAGGERED BY 5400 FT.
A110-6RWY 10R/28L NOT AVBL FOR SKED ACR OPS WITH MORE THAN 9 PAX SEATS OR UNSKED ACR AT LEAST 31 PAX SEATS.
PALM BEACH INTL (ICAO: KPBI, IATA: PBI) is a public airport located in WEST PALM BEACH, FL.
