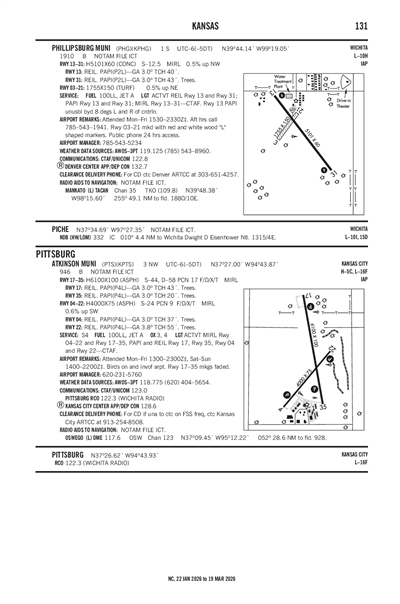

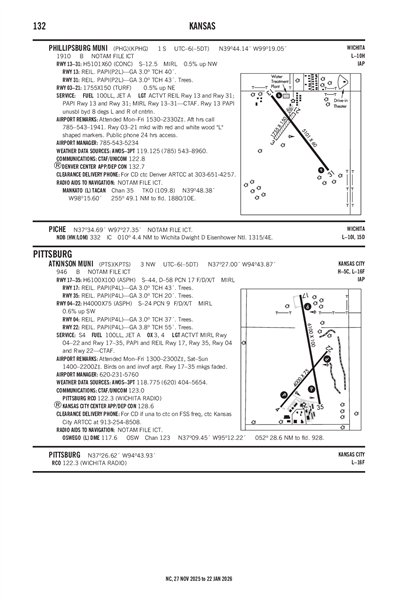

PHILLIPSBURG MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPHG
PHILLIPSBURG MUNI
PublicPUB

1 miles S of PHILLIPSBURG, KS
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 44' 09"N 99° 19' 02"W
1907' MSL
2907' MSL
05E
JET A, 100LL
WICHITA (ICT)
WICHITA
DENVER (ZDV)
5/16/24-6/13/24
KK82 (24nm) VFR
10:35 PM CDT
Clear
10sm
62°F
61°F
30.01"Hg
100° 6kts
AO2 TSNO T01680162
KK82 010335Z AUTO 10006KT 10SM CLR 17/16 A3001 RMK AO2 TSNO T01680162
Add Your Business

KPHG FBOs

Promote Listing
Phillipsburg Municipal Airport
UNICOM: 122.8
Phone: (785) 543-5424
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/16
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.30 4.34
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
785-543-8960
 119.125

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KHYS (54nm)
Fri, 5/31 6:20 PM CDT
Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT
VFR
7:00 PM CDT - 6:00 AM CDT
Few 15,000'
6sm
100° 5kts
IFR
6:00 AM CDT - 7:00 AM CDT
Mist and Thunderstorm in vicinity
Broken 1,000'
2sm
VRB° 3kts
LIFR
7:00 AM CDT - 8:00 AM CDT
Fog
Broken 800'
0.5sm
VRB° 3kts
IFR
8:00 AM CDT - 10:00 AM CDT
Mist
Broken 1,500'
2sm
VRB° 3kts
MVFR
10:00 AM CDT - 1:00 PM CDT
Broken 2,700'
6sm
120° 5kts
VFR
1:00 PM CDT - 7:00 PM CDT
Scattered 6,000'
6sm
120° 7kts
KHYS 312320Z 0100/0124 10005KT P6SM FEW150
   FM011100 VRB03KT 2SM BR VCTS BKN010CB
   FM011200 VRB03KT 1/2SM FG BKN008
   FM011300 VRB03KT 2SM BR BKN015
   FM011500 12005KT P6SM BKN027
   FM011800 12007KT P6SM SCT060
KPHG
Domestic
3/7/241439Z !ICT 03/085 PHG RWY 13 PAPI BEYOND 8DEG LEFT AND RIGHT OF RCL UNUSABLE 2403071439-PERM
FDC
2/26/241351Z !FDC 4/9487 PHG IAP PHILLIPSBURG MUNI, PHILLIPSBURG, KS.
RNAV (GPS) RWY 13, AMDT 2A...
CIRCLING RWY 31 NA AT NIGHT.
2402261351-2602261351EST
2/26/241341Z !FDC 4/9483 PHG IAP PHILLIPSBURG MUNI, PHILLIPSBURG, KS.
RNAV (GPS) RWY 31, AMDT 2A...
STRAIGHT-IN AND CIRCLING RWY 31 NA AT NIGHT.
2402261341-2602261341EST
No
MON-FRI 0930-1730
CITY OF PHILLIPSBURG
CITY HALL
PHILLIPSBURG, KS 67661
Phone: 785-543-5424
TIMOTHY DRIGGS
BOX 447
PHILLIPSBURG, KS 67661
Phone: 785-543-5234
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
ICT
--
ACTV REIL RY 13/31; PAPI RY 13/31; MIRL RY 13/31 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
9
1
0
0
0
0
None
None
None
None
Crop Dusting

Runway 03/21

2745 ft. x 140 ft.
TURF
Excellent
NONE


--
--
--
--
  Runway 03 Runway 21
True Heading 36°216°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition
Latitude 39° 44' 04"N 39° 44' 26"N
Longitude 99° 19' 18"W 99° 18' 57"W
Elevation 1,893' 1,900'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

4504 ft. x 60 ft.
CONC
Excellent
NONE
MED

12,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 143°323°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 44' 23"N 39° 43' 47"N
Longitude 99° 19' 16"W 99° 18' 41"W
Elevation 1,907' 1,884'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1PUBLIC PHONE 24 HRS ACCESS.
A110-2FOR CD CTC DENVER ARTCC AT 303-651-4257.
PHILLIPSBURG MUNI (ICAO: KPHG, IATA: PHG) is a public airport located in PHILLIPSBURG, KS.
