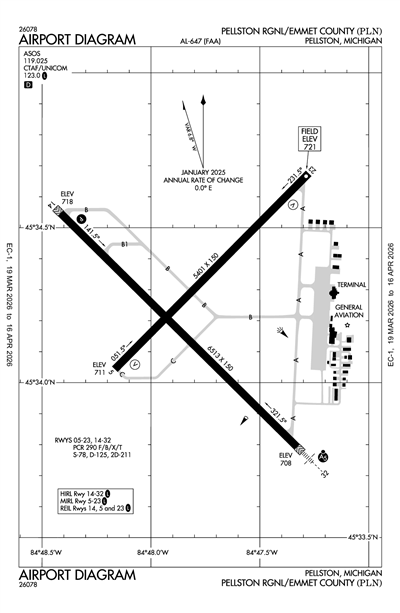

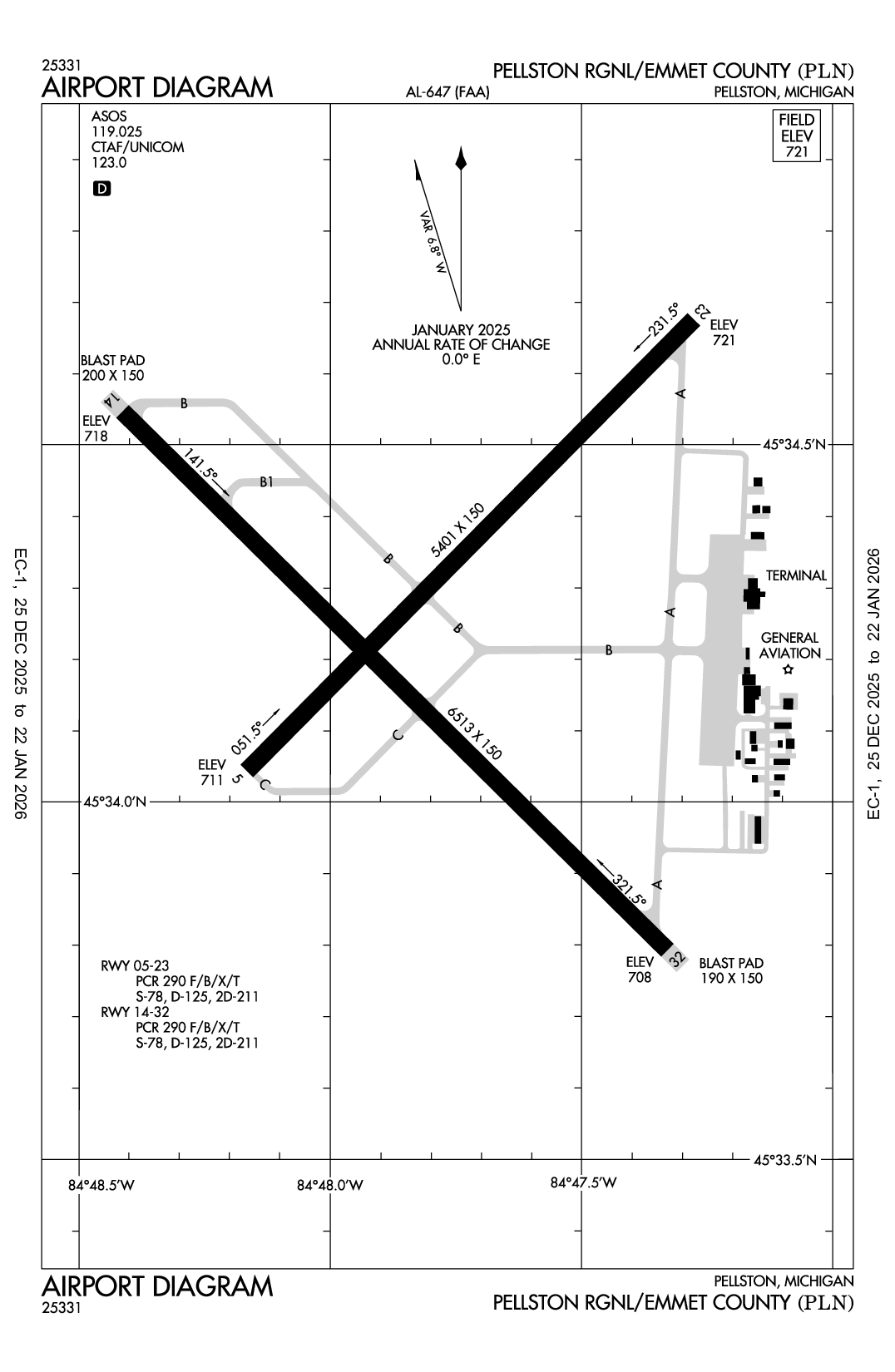

PELLSTON RGNL/EMMET COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPLN
PELLSTON RGNL/EMMET COUNTY
PublicPUB

1 miles NW of PELLSTON, MI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
45° 34' 15"N 84° 47' 48"W
721' MSL
1721' MSL
06W
JET A, 100LL
LANSING (LAN)
LAKE HURON
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KPLN VFR
9:54 AM EDT
Clear
10sm
71°F
49°F
29.88"Hg
VRB° 5kts
AO2 SLP115 T02170094
KPLN 121354Z AUTO VRB05KT 10SM CLR 22/09 A2988 RMK AO2 SLP115 T02170094
Add Your Business

KPLN FBOs

Promote Listing
Pellston Regional Airport
UNICOM: 123.0
Phone: (231) 539-8442
Other: (231) 539-8441
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 6/4
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.07 6.39
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
231-539-7700
 119.025

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KPLN
Wed, 6/12 7:20 AM EDT
Wed, 6/12 8:00 AM EDT - Thu, 6/13 8:00 AM EDT
VFR
8:00 AM EDT - 2:00 PM EDT
Scattered 9,000'
6sm
210° 5kts
VFR
2:00 PM EDT - 9:00 PM EDT
Few 25,000'
6sm
240° 9kts
Gusts 17kts
VFR
9:00 PM EDT - 2:00 AM EDT
Broken 25,000'
6sm
220° 4kts
VFR
2:00 AM EDT - 7:00 AM EDT
Showers in vicinity
Broken 5,000'
6sm
230° 7kts
VFR
7:00 AM EDT - 8:00 AM EDT
Broken 4,000'
6sm
220° 10kts
Gusts 21kts
KPLN 121120Z 1212/1312 21005KT P6SM SCT090
   FM121800 24009G17KT P6SM FEW250
   FM130100 22004KT P6SM BKN250
   FM130600 23007KT P6SM VCSH BKN050
   FM131100 22010G21KT P6SM BKN040
KPLN
Domestic
6/3/242041Z !PLN 06/001 PLN AD AP WDI SEGMENTED CIRCLE LGT U/S 2406032041-2406301100
No
0600-2300
EMMET COUNTY
1395 N US HIGHWAY 31
PELLSTON, MI 49769-9307
Phone: 231-539-8441
RYAN BACHELOR
1395 N US HIGHWAY 31
PELLSTON, MI 49769-9307
Phone: 231-539-8442
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
PLN
--
ACTVT MALSR RWY 32; REIL RWY 14, 05, & 23; PAPI RWY 14; HIRL RWY 14/32; MIRL RWY 05/23 - CTAF. VASI RWY 05 & 23 OPR CONSLY.
N/A
Yes - Lighted
Yes
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
24
5
4
0
0
0
Major
Major
None
None
Charter Service

Runway 05/23

5401 ft. x 150 ft.
ASPH
Good
GRVD
MED
25 /F/B/X/U
76,000lbs
115,000lbs
215,000lbs
--
  Runway 05 Runway 23
True Heading 45°225°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 45° 34' 03"N 45° 34' 41"N
Longitude 84° 48' 10"W 84° 47' 17"W
Elevation 711' 720'
Threshold Crossing Height 48 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4R V4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 14/32

6513 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
25 /F/B/X/U
76,000lbs
115,000lbs
215,000lbs
--
  Runway 14 Runway 32
True Heading 135°315°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 45° 34' 33"N 45° 33' 48"N
Longitude 84° 48' 25"W 84° 47' 20"W
Elevation 718' 708'
Threshold Crossing Height 49 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-1DEER & GULLS OCNLY ON & INVOF ARPT.
A110-2BE ALERT FOR SNOW REMOVAL EQUIP & ACTIVITY ON & INVOF RYS DURG WINTER MONTHS.
A110-4TWY B1 & E1 CLSD 1 NOV THRU 15 APR..
A110-5SFC CONDS UNMON 2300-0530 DLY.
A110-7FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
PELLSTON RGNL/EMMET COUNTY (ICAO: KPLN, IATA: PLN) is a public airport located in PELLSTON, MI.
