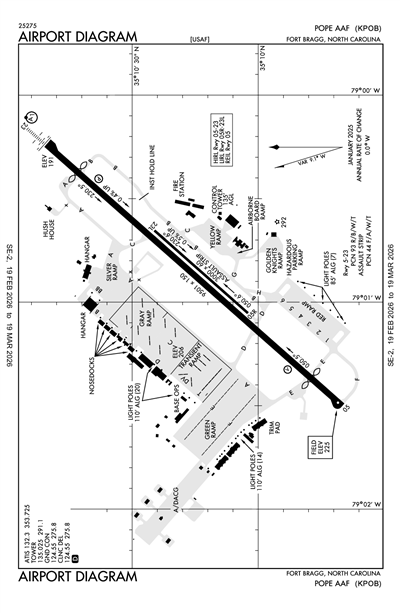

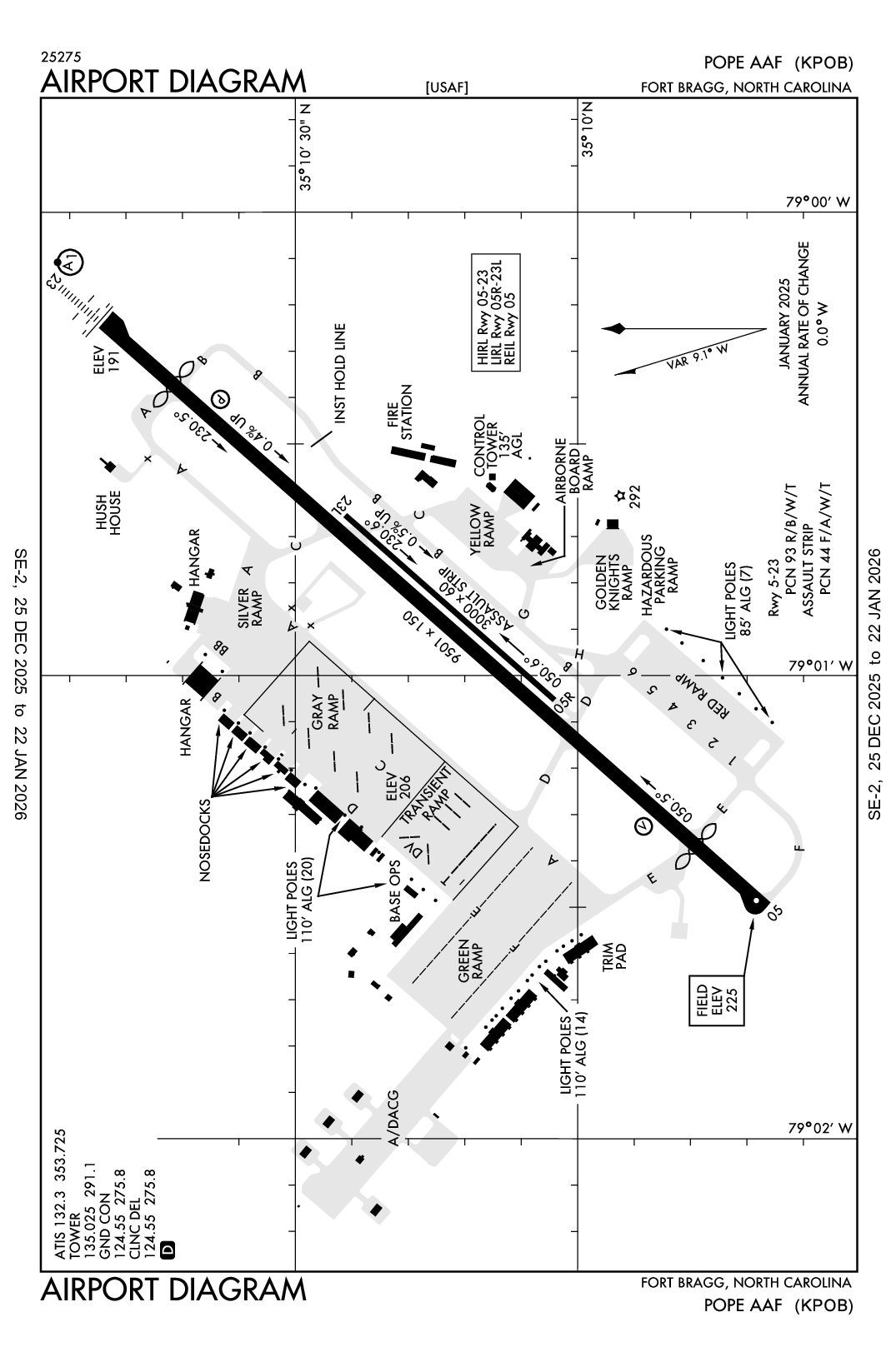

POPE AAF - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPOB
POPE AAF
PrivatePVT

12 miles NW of FAYETTEVILLE, NC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 10' 15"N 79° 00' 52"W
218' MSL
1218' MSL
07W
JET A, JET A+, CILI
RALEIGH (RDU)
CHARLOTTE
WASHINGTON (ZDC)
5/16/24-6/13/24
KPOB VFR
12:55 AM EDT
Clear
10sm
55°F
52°F
30.24"Hg
Calm
AO2 SLP242 T01250109 402560123 $
KPOB 010455Z AUTO 00000KT 10SM CLR 13/11 A3024 RMK AO2 SLP242 T01250109 402560123 $
Add Your Business

KPOB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

D-ATIS
 132.3

Emergency

EMERG
 121.5

Ground

GND/P
 124.55

Tower

LCL/P
 135.025

Other

COMD POST
X
 134.1
PTD
 125.975

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KPOB
Fri, 5/31 9:00 PM EDT
Fri, 5/31 9:00 PM EDT - Sun, 6/2 3:00 AM EDT
VFR
9:00 PM EDT - 3:00 AM EDT
Scattered 25,000'
6sm
30.12"Hg
VRB° 5kts
TAF KPOB 010100Z 0101/0207 VRB05KT 9999 SCT250 QNH3012INS TX29/0120Z TN10/0110Z LAST NO AMDS AFT 0102 NEXT 0317
KPOB
Military
6/6/241400Z QUIET HOURS ON SILVER RAMP. SILVER RAMP CLOSED.
6/4/241245Z AERODROME NO OVERFLIGHT. MAIN POST PARADE FIELD. RAD/DME: 152/002. LAT/LONG: 35.1471419° - 078.9954843°. SFC-2,000?. RADIUS:1 NM. NO SOUTH/TAC SOUTH DEPARTURES, NO SLOT RECOVERIES, NO PATTERNS ON THE SOUTH SIDE OF THE RUNWAY, AND NO TACAN ALPHA APPROACHES.
5/30/241553Z ACE BOARD PARKING SPOT AB-1 RESTRICTED TO C12 AIRCRAFT AND SMALLER.
5/27/241743Z AERODROME BASE OPS PILOT TO DISPATCH (PTD) RADIO FREQ 372.2 OUT OF SERVICE
5/20/241100Z OBST CRANE (ASN 2023-ASO-14019-OE) 350842.00N 0785922.00W (KPOB174/1.4NM) 475FT MSL (185FT AGL) FLAGGED AND LGTD, DAILY FROM 0700L UNTIL 1800L.
5/12/241401Z TWY D SOUTH CLOSED
5/12/241400Z !KPOB M0193/24 POB TWY H CLSD 2405121400-2408092359
5/12/241359Z RED RAMP PARKING SPOT 6 CLOSED
5/12/241358Z RED RAMP NORTH PERIPHERAL TWY CLOSED
5/12/241357Z RWY 051/231 (ASSAULT STRIP) RESTRICTIONS FOR C130'S DEPARTURE RWY 231 ONLY ARRIVAL 051 ONLY
5/12/241356Z RWY 23 FIRST TWO ROWS OF SEQUENCED FLASHING LIGHTS OBSCURED BY TREES.
5/12/241354Z TWY G CLSD FROM ACEBOARD TO TWY BRAVO
5/12/241353Z TWY B CLSD FROM TWY CHARLIE INTERSECTION TO TWY D INTERSETION
5/12/241348Z AERODROME ACE BOARD PARKING SPOT CLOSED.
5/12/241340Z TWY F TAXILANE CLOSED IN FRONT OF RED RAMP PARKING SPOT 6.
5/2/241911Z TWY J CLSD
4/17/242023Z !KPOB V0002/24 POB AERODROME INSTRUMENT APPROACH PROCEDURE AMENDMENT TACAN RWY 23 LANDING MINIMA S-23 CAT A/B 760/24 560 (600-1/2) CAT C/D 760/60 560 (600-1 1/8). 2404172023-2407112359
4/17/242021Z !KPOB V0001/24 POB AERODROME INSTRUMENT APPROACH PROCEDURE AMENDMENT RNAV GPS RWY 23 LANDING MINIMA LNAV CAT A/B 720/24 520 (600-1/2) CAT C/D 720/55 520 (600-1) 2404172021-2407112359
4/13/241232Z AERODROME NEW AIRFIELD MANAGEMENT PTD VHF RADIO FREQUENCY 139.3
4/10/241100Z OBST CRANE (ASN 2024-ASO-1612-OE) 350744.07N 0785952.91W (KPOB156/2.6NM) 501FT MSL (220FT AGL),
4/10/241100Z OBST CRANE (ASN 2024-ASO-1681-OE) 350747.00N 0785954.20W (KPOB155/2.6NM) 501FT MSL (220FT AGL)
4/10/241100Z OBST OBST BUILDING (ASN 2024-ASO-1756-OE) 350746.18N 0785954.34W (KPOB156/2.6NM) 371FT MSL (90FT AGL)
3/18/241739Z RWY 05/23 C5ISR TOWER 4000? LEFT OF CENTERLINE APPROACH TO RWY 23 (35° 10? 14.58? N 078° 59? 49.47? W). TOTAL HEIGHT OF ANTENNA IS 376 FT MSL.
3/13/241231Z TWY B FROM TWY C TO APPROACH END OF RWY23 RESTRICTED TO AIRCRAFT DHC-8 AND SMALLER.
3/7/241643Z TWY C SOUTH RESTRICTED TO ACFT DHC-8 AND SMALLER.
Yes
ALL
SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
POPE AAF
BASE OPERATIONS, 393 SURVEYUR ST BLDG 708
FAYETTEVILLE, NC 28308
Phone: 910-396-0011
AIRFIELD MANAGEMENT
POPE FIELD, 393 SURVEYUR ST BLDG 708
FAYETTEVILLE, NC 28308
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
POB
--
--
N/A
Yes
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
1
10
2
0
3
0
Minor
Minor
None
Low Pressure
Cargo Handling

Runway 05/23

7501 ft. x 150 ft.
CONC
Good
GRVD
HIGH
93 /R/B/W/T
--
--
--
--
  Runway 05 Runway 23
True Heading 41°221°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 35° 09' 47"N 35° 10' 43"N
Longitude 79° 01' 22"W 79° 00' 22"W
Elevation 218' 191'
Threshold Crossing Height 54 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1
Centerline Lights No No
Runway End Identifier Lights Yes No

Runway 051/231

3000 ft. x 60 ft.

ASPH
NONE
LOW
44 /F/A/W/T
--
--
--
--
  Runway 051 Runway 231
True Heading Not ListedNot Listed
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1BEARING STRENGTH RWY 05-23: ST175; TDT760; TRT585.
A110-10CAUTION: AFLD LGT INTMT BTN SS/SR DUE TO LCL NGT VISION TNG, NON-PARTICIPATING ACFT CTC TWR TO INCR INTS.
A110-11CAUTION: ACFT SHOULD EXERCISE EXTREME CAUTION WHEN TAXIING ON GREEN, YELLOW AND RAMPS DUE TO WG TIP CLNC.
A110-12TFC PAT: DEPART MAINTAIN 1500 FT OR BLO UNTIL DEPARTURE EOR. OVHD 2000 FT, RWY 23 ENTER 3 NM INITIAL, R BRK. NO OVHD RWY 05. RECTANGULAR 1500 FT. RWY 23 R TFC, RWY 05 L TFC.
A110-13CSTMS/AG/IMG: CSTMS FOR NON-US ACTIVE DUTY PERS RQR 5 HR PN TO POPE AMCC DSN 424-9000 OR C910-394-9000.
A110-14CSTMS/AG/IMG: CSTMS AND AG FOR ACTIVE DUTY PERSONNEL RQRS 3 HR PN TO AMCC DSN 424-9000 OR C910-394-9000.
A110-15MISC: CLASS C AIRSPACE.
A110-16MISC: RWY 05-23 GROOVED. ALL INBD ACFT CTC TWR. RWY DIST MKR NOT AVBL E SIDE OF RWY.
A110-17MISC: ALL ACFT CARRYING EXPLOSIVE CARGO ARE RQR TO REPORT THE EXPLOSIVE AND NET EXPLOSIVE WT TO POPE AMCC ON INBD.
A110-18MISC: NO COMSEC AVBL. TRAN AIRCREWS SHOULD PLAN TO ARR WITH APPROPRIATE AMOUNT OF COMSEC TO COMPLETE ENTIRE MSN.
A110-19MISC: INBD/OUBD ACFT RQR IMT PACKAGES, CTC POPE AMCC.
A110-2LGT: HIRL LCTD 16 FT FR RWY 05/23 EDGE.
A110-20MISC: 24 HOUR PRIOR COORDINATION WITH AFLD MGMT RQR FOR USE OF ALTN PARKING LCTN. AFLD MGMT C910-394-6508, DSN 424-6508.
A110-21PMSV METRO: AUTOMATED AN/FMQ-19 IN USE.
A110-22PMSV METRO: FULL WX SVC AVBL MON-FRI 0600L/1100Z - 2200L/0300Z. CLOSED WEEKENDS AND FEDERAL HOLIDAYS UFN. IF A FLIGHT WEATHER BRIEFING IS REQUIRED WHEN THE WEATHER STATION IS CLOSED, CONTACT SIMMONS AAF WEATHER AT 910-396-7414.
A110-23CAUTION: ALL TWY EDGE LGT AND RWY 05/23 EDGE AND APCH LGT EQUIPPED WITH NSTD LED FIXTURES. LED FIXTURES MAY NOT BE COMPATIBLE WITH ALL NVD OR ENHANCED FLIGHT VISION SYSTEMS.
A110-24CAUTION: DENSE AIR TFC ALL QUAD, ALL ALT.
A110-25CAUTION: ILS GS ANT 30 FT HI, 1111 FT FR APCH END AND 400 FT LEFT OF CNTRLN RWY 23.
A110-26RSTD: DO NOT LAND PRIOR TO RWY THLD. DSPLCD THLD MAY BE USED FOR TKF AND LDG ROLLOUT, DO NOT USE OPPOSITE END DSPLCD THLD FOR TKOF COMPUTATIONS OR TKOF ROLL.
A110-27RSTD: REQ FOR PPR WILL BE TAKEN NO EARLIER THAN 3 DAYS PRIOR TO PLANNED MSN. CTC AMOPS DSN 424-6508/09/10 OR C910-394-6508/09/10. ALL INBD ACFT WITH VIP CTC POPE AMCC 30 MIN OUT. PPR EXC DV ACFT DSN 424-6508/09/10.
A110-28RSTD: PARKING SPOT P-13 CLSD EXC FOR CONTINGENCY OPR.
A110-29RSTD: TWY LEADING TO GOLDEN KNIGHTS RAMP CLSD TO USAF C130 AND LARGER ACFT DUE TO TWY WIDTH LESS THAN 75 FT.
A110-3JASU: (A/M32A-86) 1(MA-1A).
A110-30MISC: ALL ACFT OPR ON AMC MSN, INCL JA/ATT WILL COORD RQR/PARK WITH 43 AW/OSO DSN 424-7388 FAX EXTN 7380. ALL INBD ACFT OPR ON AMC MSN AND ALL ACFT RQRG IMT PACKAGES CTC POPE COMD POST.
A110-31MISC: FIRST 1000 FT RWY 23 AND FIRST 300 FT RWY 05 ARE CONC. MID 6200 FT ASPHALT.
A110-32MISC. STD USAF RSRS APPLIED EXC C-130 5000 FT DUR DAYTIME.
A110-33MISC: STORAGE AVBL AT AFLD MGT UP TO AND INCL SECRET.
A110-34MISC: OBSN POINT OBSTACLE 330 DEG - 090 DEG.
A110-5FLUID: SP LPOX LOX.
A110-6OIL: O-128-IN CAN ONLY; -133-148.
A110-7RSTD: EFFECTIVE RWY 05-23 (BTN DISPL THLD) AVBL FOR TKOF AND LDG IS 7501 FT. DO NOT LAND PRIOR TO RWY THLD. DISPL THLD MAY BE USED FOR TKOF AND LDG ROLLOUT. OFFL TERPS END OF RWY FOR OBST PROTECTION IS MRK THLD. DO NOT USE OPPOSITE END DISPL THLD FOR TKOF COMPUTATIONS OR TKOF ROLL.
A110-8RSTD: REQ FOR PPR WILL BE TAKEN NO EARLIER THAN 3 DAYS PRIOR TO PLANNED MSN. CTC AMOPS DSN 424-6508/09/10 OR C910-394-6508/09/10. PPR EFF +/- 3 HRS OF ASGN TIME.
A110-9RSTD: CAT E APCH MIN UNAVBL DUE R5311 LCTD 2.5 NM DEP END RWY 23.
POPE AAF (ICAO: KPOB, IATA: POB) is a private airport located in FAYETTEVILLE, NC.
