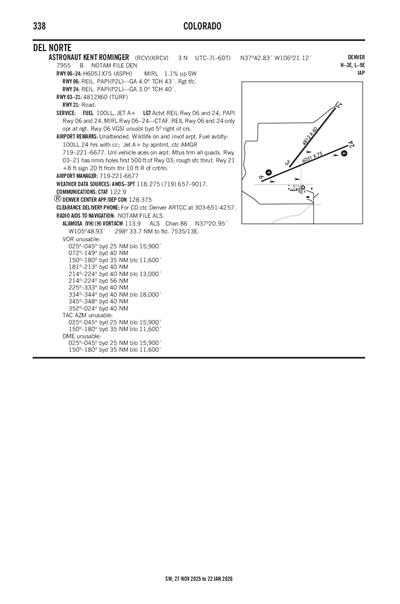

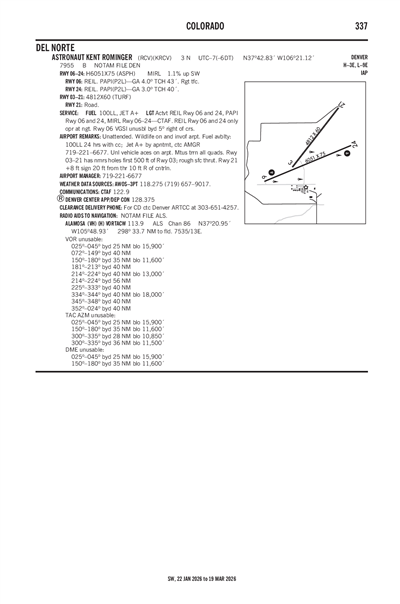

ASTRONAUT KENT ROMINGER - Airport Diagram

KRCV

ASTRONAUT KENT ROMINGER

PublicPUB

3 miles N of DEL NORTE, CO

View on Map

Status

Operational

Coordinates

37° 42' 50"N 106° 21' 07"W

Elevation

7955' MSL

Pattern Alt

8955' MSL

Mag Variation

08E

Fuel

JET A (FSII), 100LL

FSS

DENVER (DEN)

Sectional

DENVER

ARTCC

DENVER (ZDV)

Data Effective

5/16/24-6/13/24

KRCV VFR

8:35 PM MDT RAW

Clear

Viz

10sm

Temp

61°F

Dew

26°F

Pres

30.18"Hg

Wind

360° 7kts

RMK

AO2 T01591032

KRCV 010235Z AUTO 36007KT 10SM CLR 16/M03 A3018 RMK AO2 T01591032

Add Your Business

KRCV FBOs

Promote Listing

Astronaut Kent Rominger Airport

Phone: (719) 850-2094

Other: (719) 657-2744

0 Reviews (Read | Sign In To Write)

Your Information

Business

UNICOM -- CTAF 122.9

AWOS-3PT

719-657-9017

118.275

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

HOMME ONE (OBSTACLE) (RNAV)

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

RNAV (GPS) RWY 24

Terminal Area Forecast

KALS (29nm)

RAW

Reported

Fri, 5/31 5:32 PM MDT

Valid

Fri, 5/31 6:00 PM MDT - Sat, 6/1 6:00 PM MDT

VFR

6:00 PM MDT - 12:00 AM MDT

Scattered 20,000'
Scattered 11,000'

Viz

6sm

Wind

280° 8kts

VFR

12:00 AM MDT - 10:00 AM MDT

Few 20,000'

Viz

6sm

Wind

VRB° 4kts

VFR

10:00 AM MDT - 2:00 PM MDT

Few 20,000'

Viz

6sm

Wind

190° 7kts

VFR

2:00 PM MDT - 6:00 PM MDT

Broken 20,000'
Scattered 10,000'

Viz

6sm

Wind

250° 14kts

KALS 312332Z 0100/0124 28008KT P6SM SCT110 SCT200
   FM010600 VRB04KT P6SM FEW200
   FM011600 19007KT P6SM FEW200
   FM012000 25014KT P6SM SCT100 BKN200

KRCV

No NOTAM Available

ATC Tower

Attendance

UNATNDD

Owner

RIO GRANDE COUNTY
925 6TH STREET, RM 207
DEL NORTE, CO 81132
Phone: 719-657-2744

Manager

BRIAN BURRELL
1 BRAVO TAXIWAY
DEL NORTE, CO 81132
Phone: 719-221-6677

FSS

DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF

NOTAM

DEN

Light Schedule

Lights

ACTVT REIL RWY 06 & 24, PAPI RWY 06 & 24, MIRL RWY 06/24 - CTAF. REIL RWY 06 & 24 ONLY OPR AT NGT.

Beacon

N/A

Wind Indicator

Yes

Segmented Cir.

Yes

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Air Ambulance

Runway 03/21

Dimensions

4812 ft. x 60 ft.

Surface Type

TURF

Surface Cond

Poor

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 03	Runway 21
True Heading	38°	218°
Traffic Pattern	Left	Left
Markings
Markings Condition
Latitude	37° 42' 40"N	37° 43' 18"N
Longitude	106° 21' 22"W	106° 20' 45"W
Elevation	7,926'	7,932'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 06/24

Dimensions

6051 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 06	Runway 24
True Heading	67°	247°
Traffic Pattern	Right
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	37° 42' 31"N	37° 42' 54"N
Longitude	106° 21' 45"W	106° 20' 35"W
Elevation	7,955'	7,890'
Threshold Crossing Height	43 ft. AGL	40 ft. AGL
Visual Glide Path Angle	4°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-1	WILDLIFE ON & INVOF ARPT.
A110-11	FOR CD CTC DENVER ARTCC AT 303-651-4257.
A110-8	UNL VEHICLE ACES ON ARPT.
A110-9	MTUS TRRN ALL QUADS.

ASTRONAUT KENT ROMINGER (ICAO: KRCV, IATA: RCV) is a public airport located in DEL NORTE, CO.
