iFlightPlanner



...

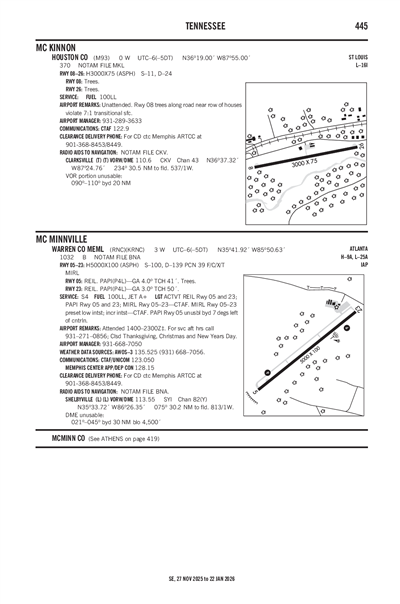

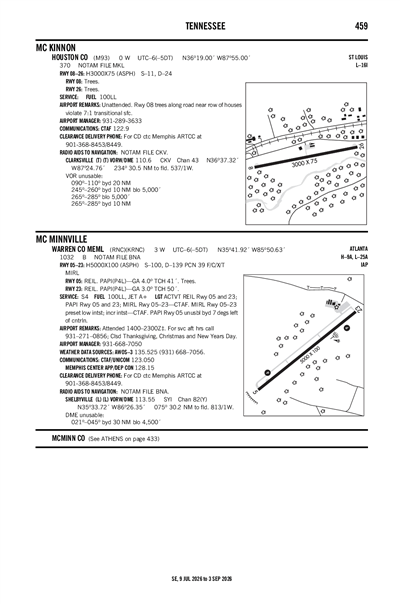

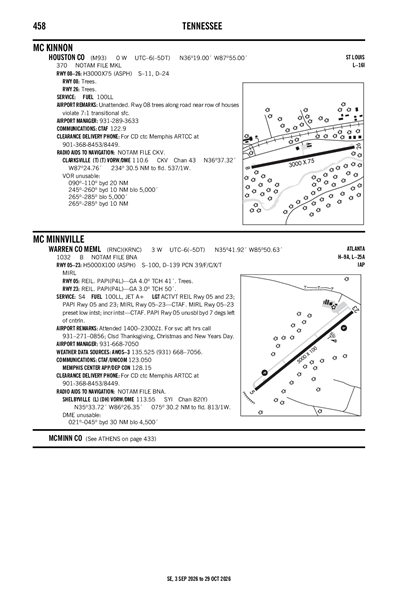

WARREN COUNTY MEML - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KRNC
WARREN COUNTY MEML
PublicPUB

3 miles W of MC MINNVILLE, TN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 41' 55"N 85° 50' 38"W
1032' MSL
2032' MSL
02W
JET A (FSII), 100LL
NASHVILLE (BNA)
ATLANTA
MEMPHIS (ZME)
5/16/24-6/13/24
KRNC VFR
8:15 PM CDT
Clear
10sm
72°F
61°F
29.99"Hg
Calm
A01
KRNC 130115Z AUTO 00000KT 10SM CLR 22/16 A2999 RMK A01
Add Your Business

KRNC FBOs

Promote Listing
Warren County Memorial Airport
UNICOM: 123.05
Phone: (931) 668-7050
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/20
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.19 4.69
Full Serve 4.69
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.05 123.05

AWOS-3

AWOS-3
931-668-7056
 135.525

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSRB (26nm)
Wed, 6/12 6:21 PM CDT
Wed, 6/12 7:00 PM CDT - Thu, 6/13 7:00 PM CDT
VFR
7:00 PM CDT - 12:00 AM CDT
Scattered 25,000'
6sm
VRB° 3kts
IFR
12:00 AM CDT - 4:00 AM CDT
Mist and Patches Fog
Sky Clear
2sm
Calm
LIFR
4:00 AM CDT - 6:00 AM CDT
Fog
Sky Clear
0.5sm
Calm
VFR
6:00 AM CDT - 7:00 PM CDT
Sky Clear
6sm
180° 5kts
KSRB 122321Z 1300/1324 VRB03KT P6SM SCT250
   FM130500 00000KT 2SM BR BCFG SKC
   FM130900 00000KT 1/2SM FG SKC
   FM131100 18005KT P6SM SKC
KRNC
Domestic
6/12/240410Z !BNA 06/250 RNC OBST TOWER LGT (ASR 1223804) 354517.80N0852947.20W (17.3NM ENE RNC) 2144.0FT (444.9FT AGL) U/S 2406120410-2409100400
6/7/240214Z !BNA 06/159 RNC OBST TOWER LGT (ASR 1325211) 352821.97N0852743.36W (22.9NM SE RNC) 2396FT (258FT AGL) U/S 2406070214-2407060001
6/3/242123Z !BNA 06/070 RNC OBST TOWER LGT (ASR 1221671) 354650.00N0854519.00W (6.6NM NE RNC) 1379.9FT (375.0FT AGL) U/S 2406032123-2410012123
5/25/241056Z !BNA 05/668 RNC OBST TOWER LGT (ASN 2021-ASO-22813-OE) 353254N0852823W (20.1NM ESE RNC) 2129FT (258FT AGL) U/S 2405251056-2406240001
5/20/241938Z !BNA 05/533 RNC OBST TOWER LGT (ASR 1224281) 354058.70N0854538.40W (4.1NM ESE RNC) 1182.7FT (259.8FT AGL) U/S 2405201938-2407041937
5/20/241814Z !BNA 05/529 RNC OBST TOWER LGT (ASR 1255825) 352747.00N0854224.00W (15.6NM SSE RNC) 2292.0FT (310.0FT AGL) U/S 2405201814-2409171814
2/1/241706Z !BNA 02/013 RNC COM CTAF 122.80 CHANGED TO 123.050 2402011706-PERM
FDC
1/11/241845Z !FDC 4/3000 RNC IAP WARREN COUNTY MEML, MC MINNVILLE, TN.
RNAV (GPS) RWY 5, ORIG...
PROFILE NOTE: VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI ANGLE 4.0/TCH 41).
2401111845-2601111845EST
No
0800-1700
AFT HR SVC - 931-607-2629; CLSD THANKSGIVING & CHRISTMAS.
WARREN COUNTY
WARREN COUNTY COURTHOUSE, 201 LOCUST STREET
MCMINNVILLE, TN 37110
Phone: 931-473-2505
JIM DYER
48 WEST AIRPORT ROAD
MC MINNVILLE, TN 37110
Phone: 931-668-7050
NASHVILLE FSS (BNA)
Toll Free: 1-800-WX-BRIEF
BNA
--
ACTVT REIL RWY 05 & 23; PAPI RWY 05 & 23; MIRL RWY 05/23 - CTAF. MIRL RWY 05/23 PRESET LOW INTST; INCR INTST - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
36
6
1
0
0
0
Major
Major
None
None
None

Runway 05/23

5000 ft. x 100 ft.
ASPH
Good
NONE
MED
39 /F/C/X/T
29,000lbs
48,000lbs
--
--
  Runway 05 Runway 23
True Heading 51°231°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 41' 40"N 35° 42' 11"N
Longitude 85° 51' 01"W 85° 50' 14"W
Elevation 1,032' 1,026'
Threshold Crossing Height 35 ft. AGL 18 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-4FOR CD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
WARREN COUNTY MEML (ICAO: KRNC, IATA: RNC) is a public airport located in MC MINNVILLE, TN.
